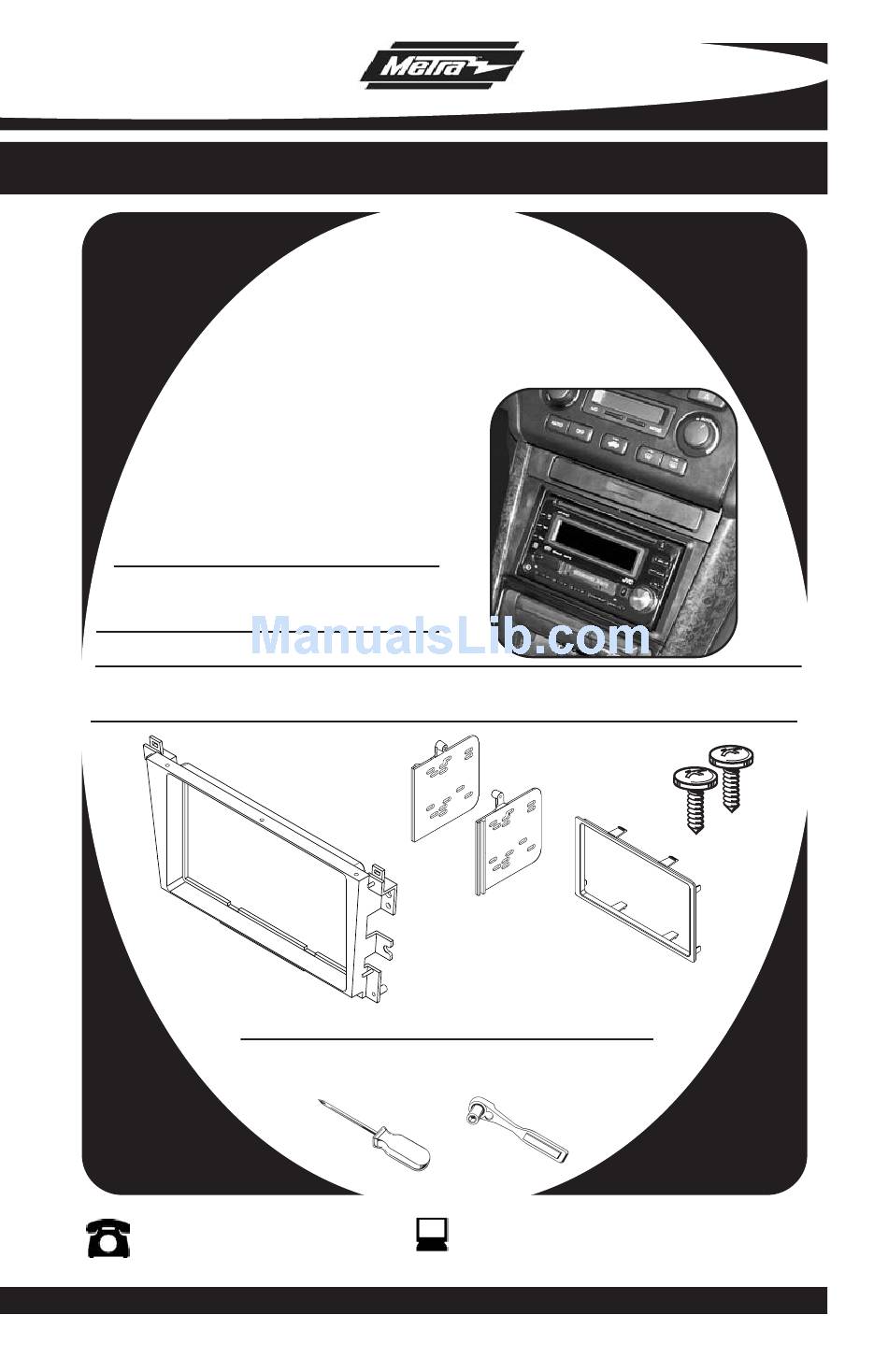

INSTALLATION INSTRUCTIONS FOR PART 95-7868B
95-7868B
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision

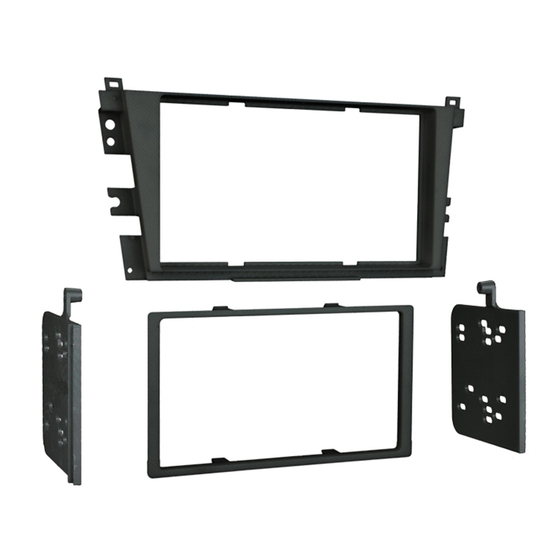

KIT COMPONENTS
• A) Double DIN Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate
• D) (2) Phillips Screws
A
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
ACURA
CL 2001-2003
TL 1999-2003
B
TOOLS REQUIRED:
• Phillips Screwdriver • Socket Set
www.metraonline.com
D
C
Advertisement
Table of Contents
Related Manuals for Metra Electronics ACURA 95-7868B
Summary of Contents for Metra Electronics ACURA 95-7868B
- Page 1 • A) Double DIN Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate • D) (2) Phillips Screws • Phillips Screwdriver • Socket Set 1-800-221-0932 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION APPLICATIONS ACURA CL 2001-2003 TL 1999-2003 TOOLS REQUIRED: www.metraonline.com...
-
Page 2: Kit Assembly
T ABLE OF CONTENTS Dash Disassembly - ACURA CL 2001-2003/TL 1999-2003 ....1,2 Kit Assembly - Double DIN Radio Provision/ Stacked ISO Mount Units Provision ..3 Final Assembly . - Page 3 ACURA CL 2001-2003 / TL 1999-2003 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove wood trim from both sides of center console. (Figure A) Open armrest and remove (2) Phillips screws inside and (2) Phillips at front edge of rear of console and pull rearward.
- Page 4 ACURA CL 2001-2003 / TL 1999-2003 Unclip and remove seat heater switch trim panel to access (2) Phillips screws and remove screws. (Figure E) Unclip bottom of A/C control trim panel and pull away (no need to completely remove). (Figure F) Remove (3) Phillips screws and (1) push pin per side of radio to remove radio.
- Page 5 DOUBLE DIN RADIO PROVISION/ STACKED ISO MOUNT RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Snap the Double DIN brackets to the inside edge of the Double DIN radio housing. (Figure A) Slide the Double DIN head unit or stacked ISO head units into the bracket/radio housing assembly and secure the Double DIN head unit or...
- Page 6 FINAL ASSEMBL Y Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation.
- Page 7 95-7868B NOTES...
- Page 8 95-7868B INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 03/02/09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST95-7868B...
