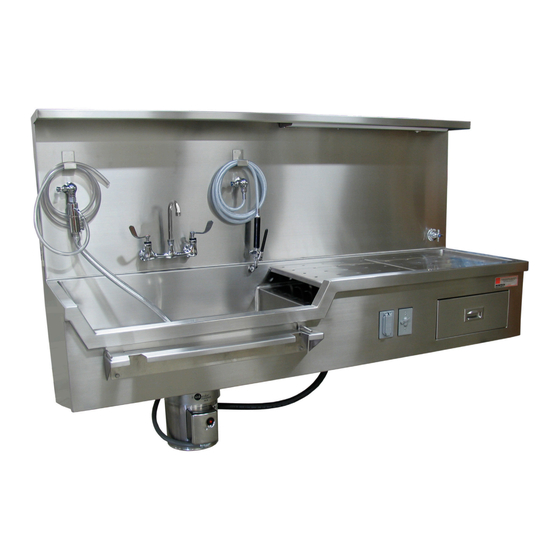

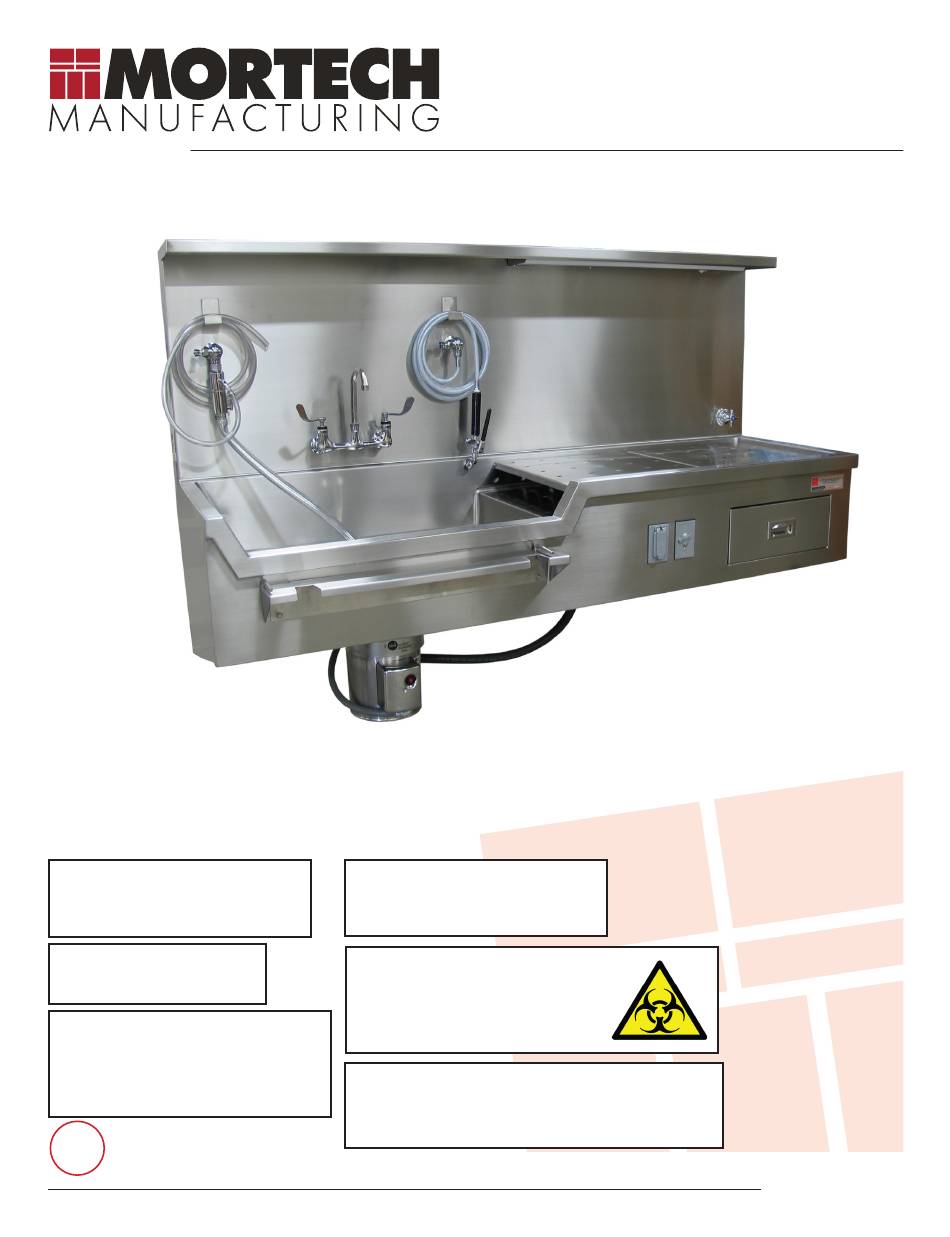

MODEL 1036-7
WALL MOUNTED AUTOPSY STATION
LEFT SINK
CAUTION
• Inspect unit and all components
for any loosening that may have
occurred during shipping •
ATTENTION
Review entire manual before
starting assembly
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
Installation and Operating Instructions
CAUTION
DO NOT USE CLEANERS
•
CONTAINING CHLORINE WHEN
CLEANING STAINLESS STEEL
WARNING
Biohazard Label is place on the
equipment signifying the potentially
infectiousness due to the samples
or reagents
ATTENTION
REFRIGERATION TO BE INSTALLED BY A
•
LICENSED, BONDED AND CERTIFIED
REFRIGERATION INSTALLATION PROFESSIONAL
Technical Users' Manual
•
•
Advertisement
Table of Contents
Related Manuals for MORTECH 1036-7
Summary of Contents for MORTECH 1036-7
- Page 1 Technical Users’ Manual Installation and Operating Instructions MODEL 1036-7 WALL MOUNTED AUTOPSY STATION LEFT SINK CAUTION CAUTION • Inspect unit and all components DO NOT USE CLEANERS • for any loosening that may have CONTAINING CHLORINE WHEN occurred during shipping •...
-
Page 2: Safety Information
• Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech Mfg. Inc. If unit has an issue contact customer relations. manufactured items are carried out exclusively by skilled INSTRUCTION FOR HANDLING professionals who have the respective training. -
Page 3: Installation
1036-7 Wall Mounted Autopsy Station Installation DUCT FLANGE STATION TO BUILDING CONNECTION DUCT FLANGE WALL STATION TO BUILDING WALL DUCT FLANGE EXHAUST SECURE DUCT FLANGE WITH ALUMINUM ADHESIVE TAPE BACK OF VENT OPENING ALUMINUM TAPE DUCT FLANGE- ATTACHED TO THE SINK STATION. -
Page 4: Remove Screws
Installation 1036-7 Wall Mounted Autopsy Station EXHAUST DUCT CONNECTION INSTRUCTIONS See Specific Project Drawings for Exhaust Duct Sizes and Locations UNEXPOSED DUCT CONNECTION 1. HVAC contractor to provide exhaust openings at sizes and locations per your project requirements. Exhaust opening to be flush with finished wall surface. Station is provided with exhaust plenum to fill gap between grill front and building wall opening. -
Page 5: Mounting Instructions
Drawings install at least (2) anchors per gusset. Gussets are located at from Mortech for utilities is provided with the submittal packet each end of the station and (1) or (2) in the center of the unit. - Page 6 Installation 1036-7 Wall Mounted Autopsy Station WATTS 009 REDUCED PRESSURE ASSEMBLY REDUCED Located underneath the unit. PRESSURE ASSEMBLY COLD, 3/4” HOT, 1/2” PRESSURE PRINCIPLE Figure-G ASSEMBLY MUST BE CONNECTED TO DRAIN DRAIN, 1-1/2” PLUMBING CONNECTION INSTRUCTIONS Step 2: Connect drain line to sink basin or disposal unit, STEP 1: (Refer to Figure-G) Flush out all water lines depending on the option provided.
-
Page 7: Hot Water Connection
1036-7 Wall Mounted Autopsy Station Plumbing Aspirator Connection Spray Hose Connection Rinse Control Valve Hot Water Cold Water End Rinse Connection Pressure Zone Assembly Air Gap Electrical Conduit Connect to Reduced Pressure Zone Assembly and then connect to building drain. -
Page 8: Troubleshooting
If above two are adequate, disassemble unit and Check for debris in sink area check for debris causing a clog in the unit. Contact plumber to diagnose and clear Call mortech customer service if problem persists drain if problem persist Disposal not functioning Rust developing... - Page 9 Electrical 1036-7 Wall Mounted Autopsy Station 1036-7 ELECTRICAL CONNECTION...
-
Page 10: Parts Listing
If above two are adequate, disassemble unit and Check for debris in sink area check for debris causing a clog in the unit. Contact plumber to diagnose and clear Call mortech customer service if problem persists drain if problem persist Disposal not functioning Rust developing... - Page 11 Parts listing 1036-7 Wall Mounted Autopsy Station FLUORESCENT HAND SPRAY ASSEMBLY LIGHT DISSECTING AREA w/FLEXIBLE HOSE (TURN CONTROL VALVE ON/OFF EXHAUST VENT & PRESS SPRAY HEAD HANDLE HOT/COLD MIXING FAUCET TO RELEASE WATER) w/WRIST BLADE HANDLES GOOSENECK SWING NOZZLE CONTROL VALVE...
- Page 12 1036-7 Wall Mounted Autopsy Station Accessories Scale Shelf Emergency Eyewash Stainless steel scale shelf Hose Assembly attached to front of station for Hand control spray to provide a gentle use with various platform type of water to rinse eyes of foreign debris.
-
Page 13: Component Data
Component Data ON-SITE PARTS & L ABOR YEAR WARR ANT Y LIGHT DUTY MODEL LC-50 APPLICATION Designed for light duty foodservice operation in: • Convenience/grocery store deli's • Fast food restaurants • Church/office kitchens • Bed and breakfast inns PRODUCT FEATURES & SPECIFICATIONS •... - Page 14 GFCI Receptacle Installation SOLENOID PREVENTIVE MAINTENANCE 1. Keep the medium flowing through the valve as free from dirt and foreign material as possible. OPERATION 2. While in service, operate valve at least once a month to Normally closed: Valve is closed when solenoid is insure proper opening and closing.
- Page 15 Installation GFCI Receptacle SWITCH 20A, 120/277V, Grounding, Premium Single Pole Toggle Switch, UL, Federal Specification, CSA, Tested To 25000 On/ Off Cycles, Screw Pressure Plate Back & Side Wire Termina- tion Accepts #14 Through #10 Awg Stranded & Solid Copper Wire, High Impact Resistant Thermoplastic Constructions, Commercial/Specification Grade, Window Box.
- Page 16 Markings The outer surface of the conduit shall be clearly marked with a legible print legend in accordance with UL 1660 and CSA C22.2 No. 227.2. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 17: Feature & Specifications
NOT TO BE REPRODUCED, USED, OR DECIMALS .XX FRACTIONS 1/16" TITLE IN PART TO ANYONE WITHOUT WRITTEN OTHERWISE DISCLOSED IN WHOLE OR AUTHORIZATION FROM MORTECH MFG. DECIMALS .XX FRACTIONS 1/16" IN PART TO ANYONE WITHOUT WRITTEN TITLE DECIMALS .XXX .005 LIGHT, VAPOR TIGHT- 3.50"H X 49... - Page 18 • Patented Quick-Fit™ Key Hole Mount for Easy Installation • Patented Universal-Fit™ Adapter Technology • Lockable Tab • Premium Powdercoat Finish • Spring Hinge Closure • UL Listed & 2008 NEC Compliant Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 19 T&S SWIVEL GOOSENECK SPIGOT Ø2" [51mm] w/ Model #133X 1/2" NPT 2 3/8" 8" [203mm] Female Inlets [61mm] Adjustable from 7 3/4" to 8 1/4" [197mm to 210mm] Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 20 4 ......005960-40 .....Eterna Barrel Asm-Hot 5 ........177F ........Lever Handle 6 ......000922-45......Lever Handle Screw 7 ......001660-45 ......Blue Index-CW 8 ......001661-45 ......Red Index-HW Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 21 WYE STRAINER PLUMBED INTO A 1036-10 IMPORTANT Before Service and Maintenance: Shut water off before checking and cleaning the Wye Strainer fitting screen located inside the fitting. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 22 USC Manual 8th Edition†; ASSE Std. 1013; AWWA Std. C511; CSA B64.4. Shall be a Watts Regulator Co. Series 009. †Does not indicate approval status. Refer to Page 2 for approved 1 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 23 7 - HYDRO BOTTOM 8 - HANDLE + 8-32 SET SCREW 9 - LOCKING RING 10 - GLAND NUT 11 - GRAPHITE PACKING 12 - 0-RING 13 - VALVE Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 24 SPRAY HOSE ASSEMBLY SINGLE WALL CONTROL VALVE Model #2700 SPRAY HEAD Model #10820 SPRAY HANDLE Model #2913 SPRAY HOSE Mortech Model #SH10 SPRAY HOSE Mortech Model #SH10 FISHER SINGLE WALL CONTROL VALVE MODEL # 2700 Feature: • Single wall • Stem - right hand •...
- Page 25 Component Data END RINSE ASSEMBLY T & S BRASS AND BRONZE WORKS, INC. MODEL # B-1025 End rinse assembly control valve (Figure-A) (Figure-A) MODEL # B-1025 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 26: Equipment Maintenance
Equipment maintenance MAINTENANCE INSTRUCTIONS The unit requires regular maintenance and follow the EFFECTIVE CLEANING METHODS manufactures directions. Commercial Cleaners - Many commercial cleaners DISINFECTING AND CLEANING compounded from phosphates, synthetic detergents, and Clean all surfaces of the stainless steel with a hard surface alkalis are available for the cleaning of severely soiled or disinfectant/cleaner such as Sheila Shine®... -
Page 27: Maintenance Record
Maintenance record 1036-7 Wall Mounted Autopsy Station MAINTENANCE RECORD Date... -
Page 28: Training Record
1036-7 Wall Mounted Autopsy Station Training record TRAINING RECORD Date... -
Page 29: Warranty
Information in this Manual is subject to change without notice of (18) months from the date of shipment. Shipping and and does not represent a commitment on the part of Mortech Labor is not warranted. Items not manufactured by Mortech Manufacturing.
