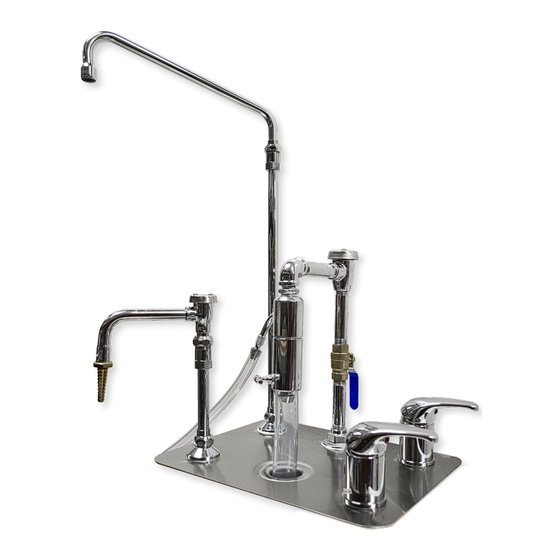

MODEL 1036-1
WATER CONTROL
UNIT
CAUTION
Inspect unit and all components
for any loosening that may have
occurred during shipping
ATTENTION
Review entire manual before
starting assembly
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
Technical Users' Manual
Installation and Operating Instructions
CAUTION
DO NOT USE CLEANERS
CONTAINING CHLORINE WHEN
CLEANING STAINLESS STEEL
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Advertisement
Table of Contents
Related Manuals for MORTECH 1036-1
Summary of Contents for MORTECH 1036-1
- Page 1 Technical Users’ Manual Installation and Operating Instructions MODEL 1036-1 WATER CONTROL UNIT CAUTION CAUTION DO NOT USE CLEANERS Inspect unit and all components CONTAINING CHLORINE WHEN for any loosening that may have CLEANING STAINLESS STEEL occurred during shipping ATTENTION ATTENTION...
-
Page 2: Safety Information
• Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech If unit has an issue contact Mortech Manufacturing Inc. Manufacturing Inc. manufactured items are carried out... -
Page 3: Equipment Description
Equipment Description 1036-1 Water Control Unit LW482 - Non-clogging Head LW480 - Hydro Aspirator LW481 - Aspirator Extension STANDARD DESIGN FEATURES Tall filler Spout for Embalming Machine water supply. The clear sight drain from the body cavity or rinsing a... -
Page 4: Installation
DRAIN CONNECTION REFER TO ROUGH IN NOTES 2 DRAIN CONNECTIONS MARKED RED TAPE FOR HOT WATER AND BLUE TAPE FOR COLD WATER. 1036-1 ROUGH-INS CENTER UNIT ROUGH IN NOTES MOUNTING HARDWARE A 12-7/8” X 9-7/8” minimum and a 13-1/8” X 10-1/8” maximum - 10-24 X 2”... -
Page 5: Parts Listing
Parts listing 1036-1 Water Control Unit MODEL 1036-1 WATER CONTROL SYSTEM Tall Faucet Model #B-0270 Atmospheric Breaker Hydro-Aspirator Model #B-0969 Assembly Model #LW480 Spray Rinse with Hose & Breaker Model #BL-5560-02 Ball Valve Model #FPC-50 Control Valve Model #2740 Drain... -
Page 6: Troubleshooting
- Check for debris in sink area check for debris causing a clog in the unit. - Contact plumber to diagnose and clear - Call mortech customer service if problem persists drain if problem persist Rust developing - Check for standing water in rust area... -
Page 7: Plumbing Components
Plumbing Components 1036-1 Water Control Unit DOUBLE PANTRY MIXING FAUCET with 18 INCH SWING NOZZLE T&S MODEL #B-0270 T&S MODEL #B-0270... - Page 8 Plumbing Components 1036-1 Water Control Unit RIGID BASE FLANGE T&S MODEL #B-0430...
- Page 9 Plumbing Components 1036-1 Water Control Unit SPRAY RINSE WITH HOSE & BREAKER MODEL # BL-5560-02...
- Page 10 Plumbing Components 1036-1 Water Control Unit HYDRO-ASPIRATOR Mandatory operation requirements: A - VACUUM 3/4-11.5 FAUCET THREAD • Minimum 1/2” supply line B - 1.500-28 THREAD C - 1/8-27 NPS PIPE THREAD • Minimum 60 lbs of water pressure D - 3/4-32 THREAD •...
- Page 11 Plumbing Components 1036-1 Water Control Unit Full Port Brass Ball Valve - Female to Female • 600 PSI (WOG) / 150 PSI (WSP) Service for Size 1/4” NPT to 2” NPT • 400 PSI (WOG) / 150 PSI (WSP) Service for Size 2-1/2” NPT & 4” NPT •...
- Page 12 Plumbing Components 1036-1 Water Control Unit TEMPERATURE MIXING VALVE T & S MODEL #2740 Deck mount single lever remote on/off control base faucet, polished chrome plated brass body, ceramic cartridge with adjustable temperature limit stop, single lever handle, 16” flexible stainless steel supply hoses with 3/8”...
- Page 13 Plumbing Components 1036-1 Water Control Unit...
-
Page 14: Operation
Operation 1036-1 Water Control Unit OPERATION INSTRUCTIONS Tall Faucet to Fill Embalming Machine Turn lever opposite unit to operate Hydro-Aspirator Assembly Turn lever on aspirator to reverse flow Control valve at base to turn On/Off Place drain tube in drain... -
Page 15: Maintenance Instructions
Stainless Steel Equipment Maintenance MAINTENANCE INSTRUCTIONS had time to oxidize or decompose. The preferred solvent is one that does not contain chlorine, such as acetone, methyl The unit requires regular maintenance and follow the alcohol, and mineral spirits. manufactures directions. EFFECTIVE CLEANING METHODS DISINFECTING AND CLEANING Commercial Cleaners - Many commercial cleaners... -
Page 16: Maintenance Record
Maintenance Record MAINTENANCE RECORD Date... -
Page 17: Training Record
Training Record TRAINING RECORD Date... -
Page 18: Warranty
PARTS AND SERVICE Information in this Manual is subject to change without notice Customer relations and product support are important and does not represent a commitment on the part of Mortech aspects of Mortech Manufacturing. Inc. Manufacturing. Inc. Mortech Manufacturing. Inc. assumes...
