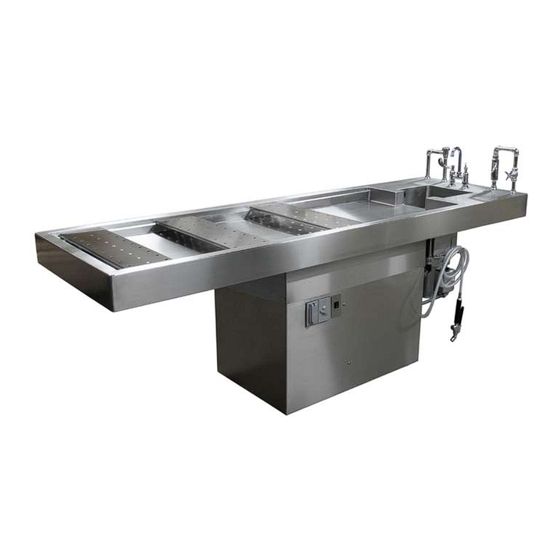

Adjustable pedestal autopsy table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL 1036-41-A
ADJUSTABLE PEDESTAL
AUTOPSY TABLE
CAUTION
• Inspect unit and all components
for any loosening that may have
occurred during shipping •
ATTENTION
Review entire manual before
starting assembly
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
™
Technical Users' Manual
Installation and Operating Instructions
CAUTION
DO NOT USE CLEANERS
•
CONTAINING CHLORINE WHEN
CLEANING STAINLESS STEEL
WARNING
Biohazard Label is place on the
equipment signifying the potentially
infectiousness due to the samples
or reagents
ISO Doc. #OM1036-41-A (REV C)
•
OCTOBER 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1036-41-A and is the answer not in the manual?

Questions and answers

Related Manuals for MORTECH 1036-41-A

Summary of Contents for MORTECH 1036-41-A

  • Page 1 ™ Technical Users’ Manual Installation and Operating Instructions MODEL 1036-41-A ADJUSTABLE PEDESTAL AUTOPSY TABLE CAUTION CAUTION • Inspect unit and all components DO NOT USE CLEANERS • for any loosening that may have CONTAINING CHLORINE WHEN occurred during shipping •...

  • Page 2: Safety Information

    • Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech If unit has an issue contact Mortech Manufacturing Inc. Manufacturing Inc. manufactured items are carried out...

  • Page 3: Equipment Description

    HAND SPRAY HOSE ASSEMBLY SINGLE WALL CONTROL VALVE Model #2700 SPRAY HEAD Model #10820 SPRAY HANDLE Model #2913 SPRAY HOSE Mortech Model #SH10 STANDARD DESIGN FEATURES OPTIONAL ACCESSORIES: • All Type 304 stainless steel construction with a polished No. 4 finish •...
  • Page 4 - If above two are adequate, disassemble unit and check for Sink not draining debris causing a clog in the unit. - Check for debris in sink area - Call Mortech customer service if problem persists - Contact plumber to diagnose and clear Disposal not functioning drain if problem persist...

  • Page 5: Anchoring The Unit

    Step 1. Verify all utility rough- ins and project specifications that have been supplied for your location. Drawings from PREPARING THE BUILDING FLOOR Mortech for utilities are provided with the submittal packet WHERE UNIT IS TO BE PLACED information. Utilities can include: water lines, electrical, etc.
  • Page 6 Project installation 1036-41-A Adjustable Pedestal Autopsy Table PERIMETER RINSE (4) FULL PERFORATED STAINLESS STEEL BODY SUPPORTS DOUBLE CONE DOWNDRAFT VENTILATION DISPOSER SWITCH ELEVATING SWITCH (2) REMOVABLE ACCESS PANELS 1 PER SIDE CONTROL VALVE FOR PERIMETER RINSE HAND SPRAY ASSEMBLY UTILITY REQUIREMENTS: A 4"...
  • Page 7 1036-41-A Adjustable Pedestal Autopsy Table Project installation 12" 26" 14" 74" 2" 100" 6" 1HP DISPOSER 44" 30" 26" 30" 32" MIN 38" MAX (2) WATERPROOF GFCI DUPLEX RECEPTACLES 24" REVISIONS REV. DCN# DESCRIPTION DATE CHANGED/APPROVED PRODUCTION RELEASE 10/31/12 REMOVED SINK, FAUCET, HYDRO-ASPIRATOR, ADDED PERIMETER RINSE...
  • Page 8 Electrical 1036-41-A Adjustable Pedestal Autopsy Table Figure-I GREEN (GROUND) 1036-41-A Adjustable 15A Circuit-Disposer consist of Pedestal Autopsy Table Solenoids - .05A ~120VAC/60hz/1ph (15A Circuit- Disposer Switch - 15A 15A CIRCUIT-DISPOSER 15A CIRCUIT-GFCI Disposer, 15A Circuit-GFCI) Disposer Units - Main Power Disconnect To Be (.5 hp, 8.4A)
  • Page 9 1036-41-A Adjustable Pedestal Autopsy Table Plumbing A (OPTIONAL) O8" DUCT FOR EXHAUST CONNECTION A 4"x4" AREA FOR ELECTRICAL INPUT Figure-A A 4"x5" AREA FOR INLET PLUMBING Ø BASE MOUNTING HOLES A 6" RADIUS AREA FOR WASTE PLUMBING IMPORTANT PLUMBING CONNECTION...
  • Page 10 LIGHT DUTY MODEL LC-50 Foodservice design with the ease and flexibility of a household unit • Disposer mounting included with unit fits standard 3-1/2” to 4” (88.9 mm to 101.6 mm) • sink opening — no welding required! Standard wall switch operates the disposer •...
  • Page 11 INSTALLING THE DISPOSER...

  • Page 12: Electrical Connections

    ELECTRICAL CONNECTIONS...

  • Page 13: Do's And Don'ts

    OPERATING INSTRUCTIONS Important – The model LC-50 is designed specifically for light commercial use. Examples of these applications include: grocery/convenience store delis, fast food restaurants, office/church kitchens, and bed and breakfast inns. Use of this disposer in applications other than those named above may void your warranty.

  • Page 14: Final Installation

    FINAL INSTALLATION...
  • Page 15 OPERATING INSTRUCTIONS...

  • Page 16: Troubleshooting

    TROUBLESHOOTING...
  • Page 17 Plumbing 1036-41-A Adjustable Pedestal Autopsy Table PLUMBING & ELECTRICAL CONNECTION PRESSURE ZONE ASSEMBLY AIR GAP HYDRAULIC LIFT SYSTEM SOLENOID MAIN JUNCTION BOX HOT WATER COLD WATER CONNECT TO BUILDING DRAIN ELECTRICAL CONDUIT ASCO Red Hat #8210G073 Solenoid Solenoid is located underneath unit.

  • Page 18: Critical Components

    8210G73, UL, CSA Listing IOZ2.MH29007 ing and internal parts are part of and complete the magnetic circuit. Place insulating washer at each end of coil if required. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...

  • Page 19: Operation

    1036-41-A Adjustable Pedestal Autopsy Table Operation ELEVATING MECHANISM Step 1. Push the Elevating Switch upward to elevate the ta- ble. Do not excess maximum height or force the table upward. Normal Step 2. Push the Elevating Switch downward to lower the table.

  • Page 20: Component Data

    Furthermore, these individuals must be trained, instructed, and qualified to switch Mortech Manufacturing Inc. electrical circuits and equipment on and off in accordance Phone: (800) 410-0100 • (626) 334-1471 with applicable technical safety regulations.
  • Page 21 Suspa Lift System MOVOTEC E-Drive “Bolt-On” Lift System OBSERVE DUTY CYCLE The term duty cycle refers to the amount of time that a mo- tor or system is in motion versus the amount of time that it is resting. The lift system is not designed to operate continuously without rest.
  • Page 22 Suspa Lift System MOVOTEC E-Drive “Bolt-On” Lift System tubing and into the pressure elements. The gear motor will Motorized Pump Specifications (Refer to Chart below) automatically shut off once the programmed pump lower The Movotec ® E-Drive gear motor (Figure-A) used with the limit is reached.

  • Page 23: Regulatory Information

    150mA , respectively. the gear motor and cable connections from possible damage. The motor cover or any additional items can be purchased by contacting: Mortech Manufacturing Inc. Phone: (800) 410-0100 info@ mortechmfg.com www.mortechmfg.com Motor Controller Placement - There should be enough...
  • Page 24 OPERATING THIS PRODUCT. FAILURE TO FOLLOW problem cannot be easily corrected, disconnect the system THE INSTRUCTIONS IN THIS MANUAL COULD from power immediately and contact MORTECH RESULT IN FIRE, PROPERTY DAMAGE, ELECTRIC MANUFACTURING INC. technical support. SHOCK, PERSONAL INJURY OR DEATH.
  • Page 25 Suspa Lift System MOVOTEC E-Drive “Bolt-On” Lift System deceleration zone provides a good indicator for the user NOTICE-Do not dismantle the system unless authorized that the lift system is about to reach its fully extended or by Suspa® Incorporated. Attempting to repair the system retracted height.
  • Page 26 Add load to system. Mortech™ Mfg. Inc. for tube shortening instructions. Cylinder Mounting Screws Too Long Reduce cylinder mounting screw length. Flexible Tubing Lengths Too Long Contact Mortech™ Mfg. Inc. for tubing change or tube shortening instructions. MARCH 2008 MFGSUSPA LIFT SYSTEM...
  • Page 27 Suspa Lift System MOVOTEC E-Drive “Bolt-On” Lift System Inspection and Maintenance (as defined below) within the Applicable Warranty Period after the date of manufacture of the item by Suspa® Incorporated or, if applicable, by Suspa® Incorporated’s WARNING supplier and if the Buyer returns the item to Seller within that FOLLOW ALL SAFETY INSTRUCTIONS CONTAINED period, F.O.B.
  • Page 28 Suspa Lift System MOVOTEC E-Drive “Bolt-On” Lift System MOVOTEC MOTOR COUPLER Lift Systems Controller Reset Procedure REPLACEMENT INSTRUCTIONS Remove load from lift cylinders and/or structure. Disconnect The following instructions can be used to perform the reset power cord, motor, and switch cables from the motor procedure on motorized lift units (E-Drive and ELS II).

  • Page 29: Plumbing Components

    Adjustable Pedestal Autopsy Table HOT/COLD MIXING FAUCET T&S SWIVEL GOOSENECK SPIGOT Model #135X T&S DECK MOUNT FAUCET w/WRIST BLADES Model #B-0225-LN Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 OCTOBER 2012 MFGISO #OM1036-41A (Rev C) (626) 334-1471 www.mortechmfg.com...
  • Page 30 9 - LOCKING RING 10 - GLAND NUT Diverter Handle 11 - GRAPHITE PACKING 12 - 0-RING 13 - VALVE Control Valve Model #CP45 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com OCTOBER 2012 MFGISO #OM1036-41A (Rev C)

  • Page 31: Installation

    *Performance as established by an independent testing laboratory. Dimensions – Weights MODE SIZE (DN DIMENSION WEIGHT 3 ⁄4HT 1 1 ⁄2 1 3 ⁄8 113.4 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 Dimensions – Weights OCTOBER 2012 MFGISO #OM1036-41A (Rev C) (626) 334-1471 www.mortechmfg.com...

  • Page 32: Warranty

    INDEX BUTTON (WHITE) MODEL 45-CP 633PL 4-ARM PLAIN HANDLE ASSEMBLY 1-214 217XTLH SLO-COMPRESSION UNIT (LH) ------- VALVE BODY (NOT SOLD SEPARATELY) Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com OCTOBER 2012 MFGISO #OM1036-41A (Rev C)

  • Page 33: Spray Head

    System limits • SPRAY HEAD, Model #10820 • Temp: 40ºF min. to 140ºF max. • SPRAY HANDLE, Model #2913 Pressure 200 psi max. static • SPRAY HOSE, Mortech Model #SH10 Shipping weight Feature: •11.5 lbs • Single wall • Stem - right hand •...
  • Page 34 IMPORTANT Before Service and Maintenance: Shut water off before checking and cleaning the Wye Strainer fitting screen located inside the fitting. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com OCTOBER 2012 MFGISO #OM1036-41A (Rev C)
  • Page 35 • Lockable Tab • Premium Powdercoat Finish • Spring Hinge Closure • UL Listed & 2008 NEC Compliant MX1000, UL, CSA Listing QCIT.E212332 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 OCTOBER 2012 MFGISO #OM1036-41A (Rev C) (626) 334-1471 www.mortechmfg.com...
  • Page 36 GFCI Service Panel Grounding connection to box ( if box has a grounding terminal) LOAD LOAD Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 Wire connector (626) 334-1471 www.mortechmfg.com OCTOBER 2012 MFGISO #OM1036-41A (Rev C) LINE...
  • Page 37 Actuator Material: Thermoplastic Body Material: Thermoplastic Strap Material: Steel Standards and Certifications: UL/CSA M1221, UL, CSA Listing E7458 GROUND 110V 220V GROUND Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 OCTOBER 2012 MFGISO #OM1036-41A (Rev C) (626) 334-1471 www.mortechmfg.com...

  • Page 38: Technical Specifications

    The outer surface of the conduit shall be clearly marked with a legible print legend in accordance with UL 1660 and CSA C22.2 No. 227.2. LFNC, LFNC-B, UL, CSA Listing DXOQ.E123464 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com OCTOBER 2012...
  • Page 39 Accessories 1036-41-A Adjustable Pedestal Autopsy Table TOTAL DOWNDRAFT VENTILATION SYSTEM- DOUBLE CONE DOWNDRAFT VENTILATION SYSTEM-(OPTIONAL) (OPTIONAL) Double Cone Downdraft Ventilation System is an OPTIONAL Total Downdraft Ventilation System is an OPTIONAL item item available and may or may not apply to your unit.
  • Page 40 1036-41-A Adjustable Pedestal Autopsy Table Accessories DOUBLE CONE DOWNDRAFT VENTILATION SYSTEM-(OPTIONAL) Double Cone Downdraft Ventilation System is an OPTIONAL item available and may or may not apply to your unit. TOTAL DOWNDRAFT VENTILATION SYSTEM-(OPTIONAL) BUILDING ROOF Total Downdraft Ventilation System is an OPTIONAL item available and may or may not apply to your unit.
  • Page 41 1036-41-A Adjustable Pedestal Autopsy Table Accessories Digital Scale Removable Measuring Ruler The Ohaus Compact Scale Anyone who works with is ideal when cost matters metal will appreciate the and dependable results are simplicity and practicality a must. This uniquely designed...

  • Page 42: Maintenance Instructions

    1036-41-A Adjustable Pedestal Autopsy Table Equipment maintenance MAINTENANCE INSTRUCTIONS EFFECTIVE CLEANING METHODS Commercial Cleaners - Many commercial cleaners The unit requires regular maintenance and follow the compounded from phosphates, synthetic detergents, and manufactures directions. alkalis are available for the cleaning of severely soiled or DISINFECTING AND CLEANING stained stainless surfaces.

  • Page 43: Maintenance Record

    Maintenance record 1036-41-A Adjustable Pedestal Autopsy Table MAINTENANCE RECORD Date OCTOBER 2012 MFGISO #OM1036-41A (Rev C)

  • Page 44: Training Record

    1036-41-A Adjustable Pedestal Autopsy Table Training record TRAINING RECORD Date OCTOBER 2012 MFGISO #OM1036-41A (Rev C)
  • Page 45 Manufacturing. Inc. will receive the manufacturer’s warranty. Information in this Manual is subject to change without notice and does not represent a commitment on the part of Mortech PARTS AND SERVICE Manufacturing. Inc. Mortech Manufacturing. Inc. assumes Customer relations and product support are important no responsibility for any inaccuracies that may be contained aspects of Mortech Manufacturing.
