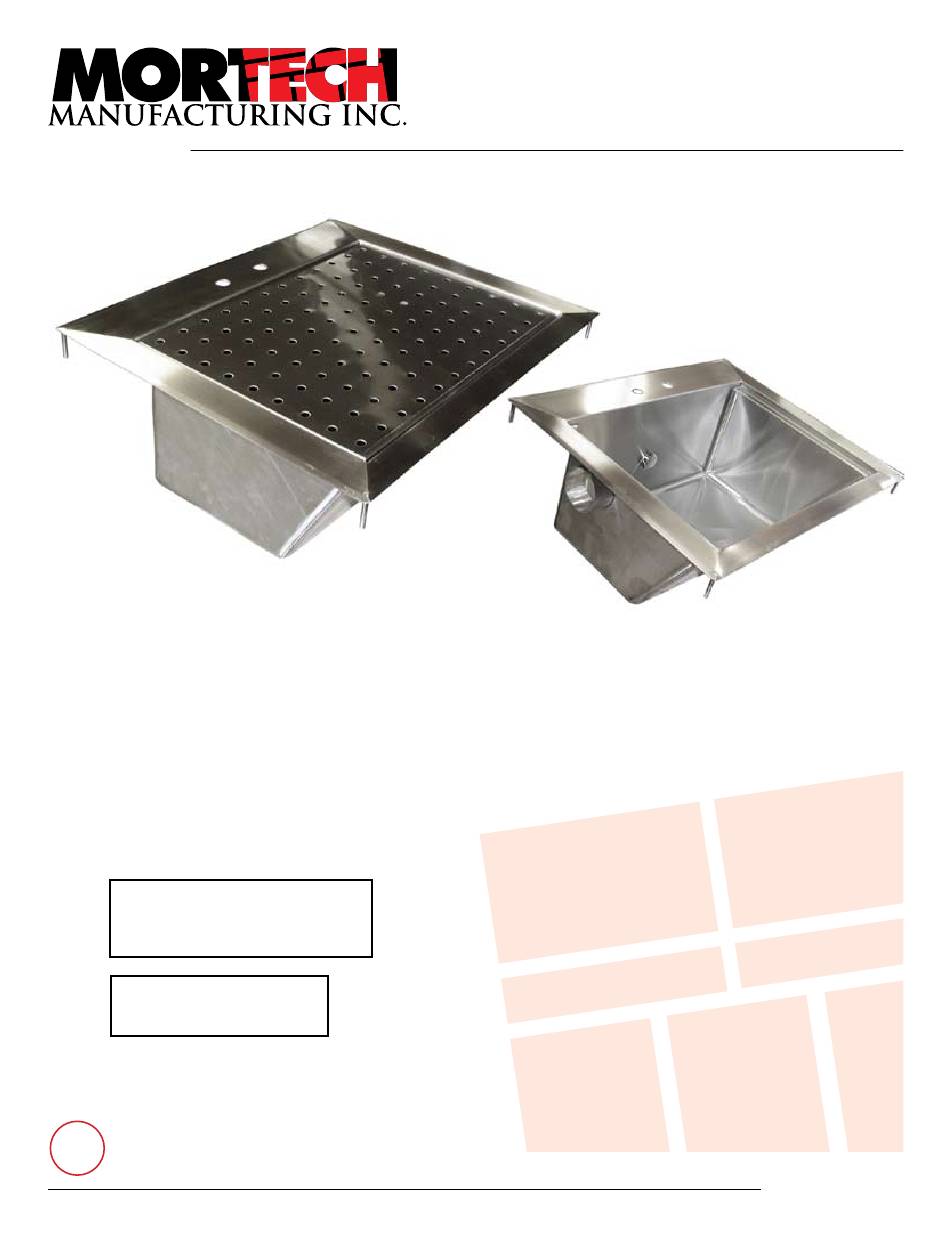

MODEL 1036-272
DROP IN SINK
w/DOWN DRAFT
CAUTION
• Inspect unit and all components
for any loosening that may have
occurred during shipping •
ATTENTION
Review entire manual before
starting assembly
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
™
Technical Users' Manual
Installation and Operating Instructions
ISO Doc. #OM1036-272 ( Rev. B)
OCTOBER 2011
Advertisement
Related Manuals for MORTECH 1036-272
Summary of Contents for MORTECH 1036-272
- Page 1 ™ Technical Users’ Manual Installation and Operating Instructions MODEL 1036-272 DROP IN SINK w/DOWN DRAFT CAUTION • Inspect unit and all components for any loosening that may have occurred during shipping • ATTENTION Review entire manual before starting assembly OCTOBER 2011 Mortech™...
- Page 2 • Are all nuts, bolts, and pins secured in place? Modifying the equipment can cause injury and damage. If unit has an issue contact customer relations. Use the equipment only as designed by Mortech. GENERAL GUIDELINE Follow standard mortuary-service procedures when BLOODBORNE DISEASE NOTICE working with the unit.
- Page 3 1036-272 Drop in Sink w/Downdraft Installation PER PROJECT REQUIREMENTS PER PROJECT PER PROJECT REQUIREMENTS PER PROJECT REQUIREMENTS REQUIREMENTS PER PROJECT REQUIREMENTS SINK COUNTER FENDER WASHER Do not over tighten as warping or LOCK NUT damage to the stud may occur.
- Page 4 Plumbing 1036-272 Drop in Sink w/Downdraft Plumbing outlet marked SINK and ready for hook-up. Located inside unit. BLUE TAPE (COLD WATER) DUCT CONNECTION RED TAPE (HOT WATER) DRAIN FLOOR PLUMBING CONNECTIONS INSTRUCTIONS Step 1. Flush out all water lines prior to connections.
- Page 5 1036-272 Drop in Sink w/Downdraft Operation Ø 5/16” X 2” THREADED REMOVABLE PERFORATED WELD ON STUD (4) STAINLESS STEEL PLATE Ø 5/16” FENDER WASHER (4) Ø 5/16” NYLON NUT (4) EXHAUST DUCT CONNECTION OVERFLOW DRAIN REAR VIEW REMOVABLE PERFORATED STAINLESS STEEL PLATE...
- Page 6 Model #133X HOT/COLD MIXING FAUCET T&S DECK MOUNT FAUCET w/GOOSENECK NOZZLE T&S Model #B-0225-LN Model #B-0413 T&S Model #B-0413 T&S DECK MOUNT FAUCET w/WRIST BLADES Model #B-0225-LN Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 7 1036-272 Drop in Sink w/Downdraft Maintenance MAINTENANCE INSTRUCTIONS Shop Oil and Grease - These soils may be corrosive and may not allow the surface to maintain passivity, and so MAINTENANCE SCHEDULE removal is a necessity. Soap or detergent and water may be The unit requires regular maintenance and follow the used or a combination of detergent and water plus a solvent.
- Page 8 Maintenance record 1036-272 Drop in Sink w/Downdraft MAINTENANCE RECORD Date OCTOBER 2011 MFGISO Doc. #OM1036-272 (REV. B)
- Page 9 PROPRIETARY NOTICE © COPYRIGHT MORTECH MANUFACTURING INC., ALL The information in this manual is the property of Mortech RIGHTS RESERVED. Manufacturing. Mortech Manufacturing reserves all patent rights, proprietary design rights, manufacturing rights, reproductions rights, and sales use rights thereto, and to any...
