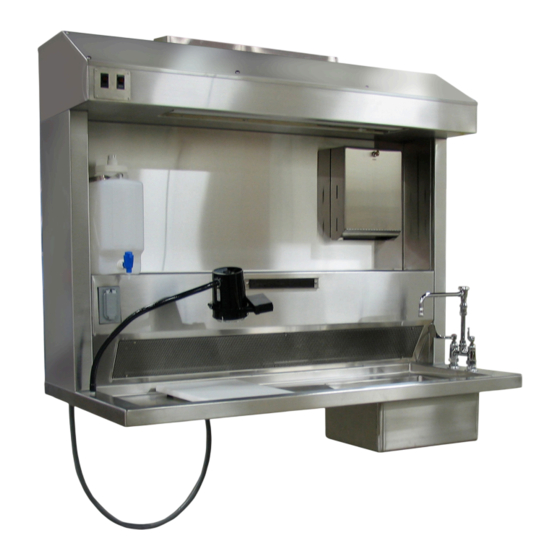

MODEL GL115
PATHOLOGY
WORKSTATION
CAUTION
Inspect unit and all components
for any loosening that may have
occurred during shipping
ATTENTION
Review entire manual before
starting assembly
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
™
Technical Users' Manual
Installation and Operating Instructions
CAUTION
DO NOT USE CLEANERS
CONTAINING CHLORINE WHEN
CLEANING STAINLESS STEEL
WARNING
Biohazard Label is placed on the
equipment signifying potential
infectiousness due to the samples
or reagents
ISO Doc. #OMGL115 (REV. E)
MAY 2018
Advertisement
Table of Contents
Related Manuals for MORTECH GL115
Summary of Contents for MORTECH GL115
- Page 1 ™ Technical Users’ Manual Installation and Operating Instructions MODEL GL115 PATHOLOGY WORKSTATION CAUTION CAUTION Inspect unit and all components DO NOT USE CLEANERS for any loosening that may have CONTAINING CHLORINE WHEN occurred during shipping CLEANING STAINLESS STEEL ATTENTION WARNING...
-
Page 2: Safety Information
• Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech If unit has an issue contact Mortech Manufacturing Inc. Manufacturing Inc. manufactured items are carried out... -
Page 3: Installation
Installation GL115 Pathology Workstation Figure-G CABINET TOP PROVIDE (1) 4 X 4 ELECTRICAL BOX (1) 115V / 60hz / 1O / 15A (STATION) O3/4 COLD O1/2 HOT O1-1/2 DRAIN PLUMBING CONNECTION INSTRUCTIONS STEP 1: (Refer to Figure-G) Flush out all water lines prior to connection. - Page 4 Installation GL115 Pathology Workstation Exhaust Duct Electrical Conduit 1-1/2-Drain Cold Water Hot Water ELECTRICAL CONNECTION INSTRUCTIONS EXHAUST DUCT CONNECTION Step 1: (Refer to Figure-I) Connect electrical lines from INSTRUCTIONS station to building. Units are provided with watertight See Specific Project Drawings for conduit lines for connection.
-
Page 5: Parts Listing
INCANDESCENT LIGHT w/MAGNIFIER MOFFAT #15-12-01 POLYETHYLENE DISSECTING BOARD The Model GL115 Optional Accessories: Standard Design Features: • Heavy-Duty commercial disposal (1/2 hp, 3/4 hp, • Available in two sizes: 48 inches long and 60 inches long 1 hp, 2 hp) •... -
Page 6: Troubleshooting
Parts listing GL115 Pathology Workstation EXHAUST DUCT TO BUILDING HOOD ACCESS INCANDESCENT PAPER TOWEL LIGHT-SWITCH DISPENSER ON/OFF OPERATES LIGHT MAGNETIC INSTRUMENT INCANDESCENT LIGHT HOLDER w/MAGNIFIER-SWITCH ON/OFF OPERATES LIGHT DISPOSAL SWITCH ON/OFF OPERATES SWITCH HOT/COLD MIXING FAUCET FORMALIN w/WRIST BLADE HANDLES... - Page 7 Parts listing GL115 Pathology Workstation PATHOLOGY STATION BASES (Optional) GL125 GL120 Model GL120 and GL125 Pathology Station Bases Grossing Station Table Bases feature all heavy-gauge Type 304 stainless steel construction with No. 4 satin finish. Adjustable leveling feet are provided on all corners. Units are custom fabricated to each customer’s specifications.
- Page 8 ™ Component Data T&S SWING NOZZLE HOT/COLD MIXING FAUCET MODEL # 061X T&S SWING NOZZLE (See Figure - A) Model #061X Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 9 • 2-power, high clarity magnification. • Optional 4-power, 1” diameter secondary lens inset available **. • Color: Black. • 2” x 4” dual lens, shade mount attachment Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 10: Special Features
• Highest output spot light availabl springs for recess mounting and the ability to swivel 12 de- grees. Exceptionally low profile of only 29mm (1-1/8”) makes it ideal for tight applications. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com... - Page 11 • Patented Quick-Fit™ Key Hole Mount for Easy Installation • Patented Universal-Fit™ Adapter Technology • Lockable Tab • Premium Powdercoat Finish • Spring Hinge Closure • UL Listed & 2008 NEC Compliant Keyholes Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 12 Wire |-------- 1 inch -------- | Clockwise 2/3 of the way around screw TEST RESET Mortech™ Manufacturing Inc. LINE LINE LINE LINE: cable brings 411 North Aerojet Avenue, Azusa, CA 91702 power to the GFCI...
- Page 13 Bracket - Actuator WBL/MBL optional external gasket panel seal Base Phenolic (150°C) Rocker/Bracket Nylon 66 (105°C) Agency Certifications Select circuits and constructions with IEC approvals are available. Consult factory. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
- Page 14 Leakproof. Carboy is made of autoclavable polypropylene, with polypropylene screw closure. Before autoclaving, just set cap or closure on top of the container without engaging the threads. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 15: Operation
400 C-fold or 525 multifold paper towels without adjustment or use of adapters. Manufacturer’s service and parts manual shall be provided to the building owner/manager upon request. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com... - Page 16 18 x 12 x 0.75 thick LW386 20 x 15 x 0.75 thick LW387 Photo Blue Board 20 x 15 x 0.50 thick LW389 All measurements in inches LW386 LW387 LW385 LW389 Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com...
-
Page 17: Technical Specifications
Markings The outer surface of the conduit shall be clearly marked with a legible print legend in accordance with UL 1660 and CSA C22.2 No. 227.2. Mortech™ Manufacturing Inc. 411 North Aerojet Avenue, Azusa, CA 91702 (626) 334-1471 www.mortechmfg.com... - Page 18 GL115 Pathology Workstation Accessories GL10 Parts listing ARTICULATING CAMERA MOUNT Articulated arm with large locking knob with variable friction. Supplied with a quick release camera plate and MICROPHONE ON FLEX ARM secondary safety lock. Easy-to-adjust, small-diameter, alternating gooseneck provides a steep low frequency...
- Page 19 GL115 Pathology Workstation Accessories COMPRESSED AIR VALVES All brass with chrome plated finish. Visually marked for type of function required. TABLE END RINSE ASSEMBLY Washes debris towards sink basin FLIP EYEWASH ASSEMBLY controlled by cold water valve or hands free control with back flow prevention.
- Page 20 GL115 Pathology Workstation Accessories FULL PLEXIGLASS ENCLOSURE STAINLESS STEEL STORAGE Covers and protects the working area for CONTAINERS UTILITY DRAWER / a clean and sanitary area. Constructed of PULL OUT WRITING PLATFORM STAINLESS C-FOLD PAPER 0.5 in./1 cm. plexiglass, contains fumes...
-
Page 21: Maintenance Instructions
Stainless steel equipment maintenance MAINTENANCE INSTRUCTIONS had time to oxidize or decompose. The preferred solvent is one that does not contain chlorine, such as acetone, methyl The unit requires regular maintenance and follow the alcohol, and mineral spirits. manufactures directions. EFFECTIVE CLEANING METHODS DISINFECTING AND CLEANING Commercial Cleaners - Many commercial cleaners... -
Page 22: Maintenance Record
Maintenance record MAINTENANCE RECORD Date... -
Page 23: Training Record
Training record TRAINING RECORD Date... -
Page 24: Warranty
PARTS AND SERVICE Information in this Manual is subject to change without notice Customer relations and product support are important and does not represent a commitment on the part of Mortech aspects of Mortech Manufacturing. Inc. Manufacturing. Inc. Mortech Manufacturing. Inc. assumes...
