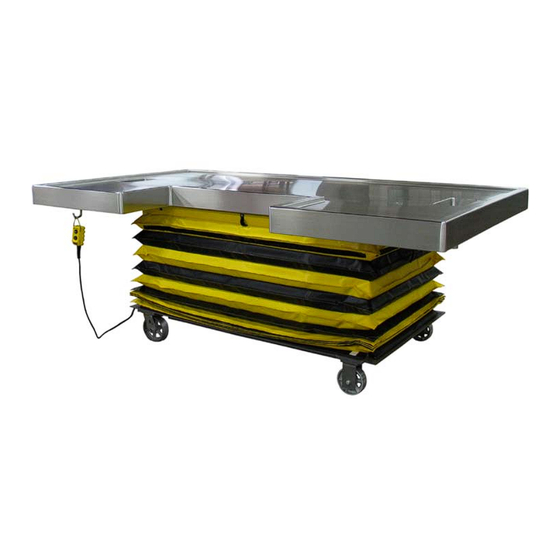

MODEL 1036-250-M
MOBILE ELEVATING LARGE ANIMAL
NECROPSY TABLE
CAUTION
• Inspect unit and all components
for any loosening that may have
occurred during shipping •
ATTENTION
Review entire manual before
starting assembly
ATTENTION
All images and Drawing in this manual
may not represent your model.
Refer to your particular project for
exact specifications
Mortech™ Manufacturing Inc.
411 North Aerojet Avenue, Azusa, CA 91702
(626) 334-1471 www.mortechmfg.com
™
Technical Users' Manual
Installation and Operating Instructions
ISO Doc. #OM1036-250M (REV B)
JULY 2010
Advertisement
Table of Contents
Related Manuals for MORTECH 1036-250-M
Summary of Contents for MORTECH 1036-250-M
- Page 1 ™ Technical Users’ Manual Installation and Operating Instructions MODEL 1036-250-M MOBILE ELEVATING LARGE ANIMAL NECROPSY TABLE CAUTION • Inspect unit and all components for any loosening that may have occurred during shipping • ATTENTION Review entire manual before starting assembly...
-
Page 2: Safety Information
• Is unit draining properly? WARNING • Are all nuts, bolts, and pins secured in place? It is crucial that any work performed on Mortech Mfg. Inc. If unit has an issue contact customer relations. manufactured items are carried out exclusively by skilled INSTRUCTION FOR HANDLING professionals who have the respective training. -
Page 3: Parts Listing
1036-250M Mobile Elevating Large Parts listing Animal Necropsy Table “L” SHAPED STAINLESS STEEL TABLE TOP OTHER STYLES AVAILABLE, REFER TO PROJECT DRAWINGS DRAINAGE OPENING HAND CONTROL FOR UP/DOWN ELEVATION (2) NON SWIVEL CASTER WHEEL BRAKE All measurements in inches/centimeters 10 ft./3 m. CORD PROVIDED w/115V/1Ø/60hz (2) SWIVEL CASTER WHEEL 3 PRONG NEMA PLUG... - Page 4 Parts listing 1036-250M Mobile Elevating Large Animal Necropsy Table 1036-250M 1036-250M SINK RAISED Can be placed as a part of the table. Sizes can be for customers request. 1036-250M LOWERED SINK DRAIN HOSE Ships loose, attach and cut to desired length. JULY 2010 MFGISO DOC.
-
Page 5: Installation
If you have any and height requirements. question about any of the instructions in this manual, please b). The remaining steps are the same as required for floor contact Mortech Mfg Inc. installation. JULY 2010 MFGISO DOC. #OM1036-250M (REV B) - Page 6 Installation 1036-250M Mobile Elevating Large Animal Necropsy Table Counter weight Velcro strap -located inside Raising the Bellows • You can access the scissor lift beneath the bellow by lifting the bellows upwards toward the table top (A). • While you are lifting beware of the metal bars at the bottom of the bellow (B-Counter weight).
- Page 7 1036-250M Mobile Elevating Large Assembly Animal Necropsy Table RAISING THE BELLOWS VELCRO BELLOW SECURE STRAP RAISING THE BELLOW • LIFT FROM THE BOTTOM • USE VELCRO STRAPS TO SECURE • REPEAT FOR ALL SIDES VELCRO BELLOW SECURE STRAP JULY 2010 MFGISO DOC.
-
Page 8: Typical Assembly
Installation 1036-250M Mobile Elevating Large Animal Necropsy Table Typical Assembly MODEL 1036-250M JULY 2010 MFGISO DOC. #OM1036-250M (REV B) - Page 9 1036-250M Mobile Elevating Large Installation Animal Necropsy Table METAL BELLOW SUPPORT BAR (SLIDE BAR IN EITHER END AND SECURE BY LINING UP HOLES AND FASCINING WITH BOLTS) VELCRO BELLOW BELLOW COVER SECURE STRAP METAL BELLOW SUPPORT BAR (INSERT BAR AT THE OPENING AT EITHER END) JULY 2010 MFGISO DOC.
- Page 10 Electrical 1036-250M Mobile Elevating Large Animal Necropsy Table Table Attachment/Removal FROM UNDERNEATH THE TABLE, REMOVE THE (8) BOLTS HOLDING THE TABLE TOP TO THE SCISSOR LIFT FRAME USING A SOCKET WRENCH AND REMOVE THE TOP. TABLE TOP SCISSOR LIFT FRAME TABLE FRAME BELLOWS SCISSOR LIFT...
-
Page 11: Operation
1036-250M Mobile Elevating Large Operation Animal Necropsy Table Elevating Switch A “J” hook is provided on each side of the table for hanging the elevating switch. Switch buttons are marked for function “UP” and “DOWN”. Access to Scissor Lift After Installation Foot Brake Assembly To release Lower bellowsto scissor lift frame... - Page 12 Electrical 1036-250M Mobile Elevating Large Animal Necropsy Table WARNING! Contact Presto Lifts for further information when freezing Do not install lifts in pits unless they have approved bevel conditions exist. edge top or electro-mechanical toe guards. WARNING! CAUTION! Do not use automotive hydraulic, brake or transmission fluids. Lifts with toeguard and oversized platforms must be secured They will damage seals and pose a serious fire hazard.
-
Page 13: Routine Maintenance
1036-250M Mobile Elevating Large Maintenance Animal Necropsy Table 2). Operate the lift. a). To raise the lift, press and hold the up button. 4). Check hydraulic lines for damage or leaking. b). To lower the lift, press and hold the down button. Replace if damaged. -
Page 14: Quality Issues
1036-250M Mobile Elevating Large Maintenance Animal Necropsy Table SERVICE REPLACING CYLINDER SEALS: (Seal kits are listed on page 15) 1. Lower the lift to its lowest position and hold down switch for an additional 10 to 20 seconds. Then lift the top to its over center position and secure. -
Page 15: Component Identification
1036-250M Mobile Elevating Large Electrical Animal Necropsy Table XL SERIES PRODUCT ILLUSTRATIONS COMPONENT IDENTIFICATION ITEM NO. PART NUMBER DESCRIPTION E307 Push button E308-E36 Foot control with Cover (12 ft. cord) 1000-176 Down Solenoid 1000-034-10 Hydraulic Pump Assembly (1 gallon/min.) E255R Electric Motor (115/1/60) 1000-067 Roller Assembly Kit... - Page 16 Parts listing 1036-250M Mobile Elevating Large Animal Necropsy Table X3W and X4W PRODUCT ILLUSTRATIONS FIGURE 3 -- EXPOSED CYLINDER ASSEMBLY ITEM NO. PART NUMBER DESCRIPTION See Page 15 Hydraulic Cylinder 1000-086 Safety Velocity Fuse 1000-067 Roller Kit Assembly See Page 15 Maintenance Chock FIGURE 4 -- EXPOSED POWERPACK ITEM NO.
- Page 17 1036-250M Mobile Elevating Large Electrical Animal Necropsy Table FIGURE 5 WIRING SCHEMATIC 115/1/60 power with 20 AMP PLUG FIGURE 6 WIRING SCHEMATIC 208, 220, 460/3/60 POWER with PIG TAIL JULY 2010 MFGISO DOC. #OM1036-250M (REV B)
- Page 18 Parts listing 1036-250M Mobile Elevating Large Animal Necropsy Table FIGURE 7 HYDRAULIC SCHEMATIC for all MODELS FIGURE 8 LABELING DIAGRAM FOR ALL MODELS JULY 2010 MFGISO DOC. #OM1036-250M (REV B)
- Page 19 1036-250M Mobile Elevating Large Parts listing Animal Necropsy Table RECOMMENDED SPARE PARTS LISTING DESCRIPTION PART # USED ON: MODEL Foot Switch E308-E36 All Units Down Solenoid 2562028 115 VAC Phase Power Lift, Coil Only 2562029 208, 220, 460, 1 & 3 Phase Power Lift, 24V Coil Only 2562033 Valve Stem Only...
- Page 20 1036-250M Mobile Elevating Large Maintenance Animal Necropsy Table use of product while charger is plugged into an AC outlet, or failure to follow operating instructions. The limited warranty Presto Lifts Limited Warranty Policy is not valid for damage resulting from negligence, accident, Presto Lifts warrants all of its products against defects in the unreasonable use, abuse or misuse, exceeding data plate welded structural frame and, if applicable, scissor legs from...
-
Page 21: Maintenance Instructions
1036-250M Mobile Elevating Large Maintenance Animal Necropsy Table MAINTENANCE INSTRUCTIONS Shop Oil and Grease - These soils may be corrosive and may not allow the surface to maintain passivity, and so MAINTENANCE SCHEDULE removal is a necessity. Soap or detergent and water may be The unit requires regular maintenance and follow the used or a combination of detergent and water plus a solvent. -
Page 22: Maintenance Record
Maintenance record 1036-250M Mobile Elevating Large Animal Necropsy Table MAINTENANCE RECORD Date JULY 2010 MFGISO DOC. #OM1036-250M (REV B) -
Page 23: Training Record
1036-250M Mobile Elevating Large Training record Animal Necropsy Table TRAINING RECORD Date JULY 2010 MFGISO DOC. #OM1036-250M (REV B) -
Page 24: Warranty
Items not manufactured by Mortech Mfg. Inc. will receive the manufacturer’s warranty. Mortech Mfg. Inc. has made every effort to ensure that this Manual is accurate; Mortech Mfg. Inc. abdicate liability for any inaccuracies or omissions that may have occurred.
