PAX A920 Manual

Introduction

Intelligence of an ECR in a handheld point of sale.

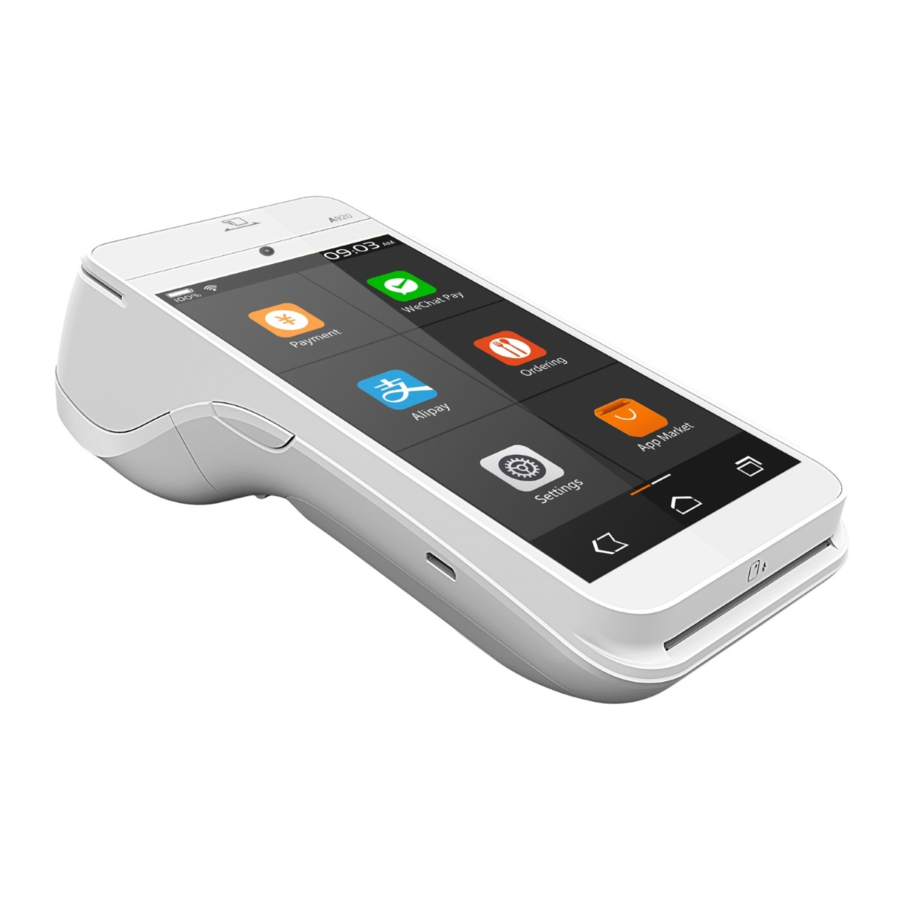

The PAX A920 is an elegantly designed compact secure portable payment terminal powered by an Android operating system. The A920 comes with a large high definition color display. A thermal printer and includes NFC contactless and electronic signature capture. Great battery life for portable use.

What's in The Box

The PAX A920 includes the following items in the box.

Charging Instructions

Before starting the A920 battery should be fully charged by plugging the USB to micro USB cord to a PC or an AC power supply and then plug the other end with the micro USB connector into the micro USB port on the left side of the terminal. Charge the battery until full.

Note: There is a protective cover on the new battery terminals that must be removed before charging the battery. See Remove and Replace Battery section.

Buttons and Functions Description

Front

1. MSR Card Swipe
2. Front Camera Fixed 0.3MP
3. Volume Down Button
4. Micro USB Port
5. EMV Chip Card Insert Slot
6. Contactless Card Tap
7. Volume Up Button
8. Power On/Off Button
9. 5" Capacitive Touch Screen, 1280*720

Backside

1. Wi-Fi Mac Address
2. Part Number / Serial Number
3. Rear Camera Auto Zoom 5 MP
4. Battery Cover
5. Paper Cover Latch
6. Paper Cover
7. Charging Stand Contacts
8. Battery Cover Slide Latch

Power On/Off

Power up or power off the terminal by pressing and holding the small rectangle button on the right side of the terminal for 2-4 seconds and then release.

Communication Setup

For the terminal to communicate with the host, other devices or to download applications the terminal communication method must be configured in advance. This document covers Wi-Fi and cellular.

Wi-Fi Setup

The A920 supports Wi-Fi for network and internet access. Available access types are DHCP, Static and Manual Proxy. The following instructions include setting up for each communication type.

Wi-Fi DHCP Setup

1. The Wi-Fi settings are located within the Android Settings option.
   From the IDLE screen select the Settings Icon.

2. Input the Settings password and then select the green check button and then "OK".

3. Turn on the Wi-Fi option. Then select the Wi-Fi option.

4. To see the available Wi-Fi networks, turn on the Local Wi-Fi option. Only local Wi-Fi networks that have the SSID broadcast option enabled will be displayed. To view or edit the network settings select the desired WiFi network.

5. After selecting the desired Wi-Fi network, input the Wi-Fi case sensitive password and select "Connect".
   When the terminal has successfully connected to the Wi-Fi access point the Status will display "Connected".
   Select the back icon to return to the Settings menu or to exit.


Wi-Fi Static Setup

To setup Wi-Fi Static perform steps 1 to 4 in the section "Wi-Fi DHCP Setup". Then go to step 1 in the section "Wi-Fi Static Setup".

1. Top half of the screen. Select the desired Wi-Fi network and input the Wi-Fi case sensitive password. Then select the Advanced options. In the IP settings select the Static option. In the IP address enter the static IP address.

2. Bottom half of the screen. After the static IP address is entered then scroll the page up. In the Gateway section enter the gateway address. Next in the Network prefix length enter the network length. In the DNS 1 section enter the DNS 1 IP address. In the DNS 2 section enter the DNS 2 IP address. To save settings and exit select the "CONNECT" option.


Wi-Fi Manual Static Setup

If the broadcast SSID is disabled on the access point the terminal will not display the SSID on the available Wi-Fi network listings. It will be necessary to manually configure the terminal for Static connection types.
To setup Wi-Fi Static perform steps 1 to 4 in the section "Wi-Fi DHCP Setup". Then go to step 1 in the section "Wi-Fi Manual Static Setup".

1. If the desired Wi-Fi network is not displayed it will be necessary to manually configure the network. In the upper right- hand corner select the options three dots icon. Then select the "Add network" option.

2. Upper half of the screen. The Add Network pop up screen will display. Enter the case sensitive Wi-Fi network SSID. Next select the security type from the dropdown menu. Now enter the case sensitive Wi-Fi network password. Next select "Save" to save the settings.

3. Bottom half of screen. Scroll the screen up screen towards the top. Select the IP settings and then choose Static from the drop-down menu. In the IP address field enter the IP address. In the Gateway section enter the gateway address. Next in the Network prefix length enter the network length. In the DNS 1 section enter the DNS 1 IP address. In the DNS 2 section enter the DNS 2 IP address. Next select "SAVE" to save the settings.


Wi-Fi Proxy Setup

To setup Wi-Fi Static perform steps 1 to 4 in the section "Wi-Fi DHCP Setup". Then go to step 1 in the section "Wi-Fi Proxy Setup".

1. To manually configure the network. In the upper right- hand corner select the options three dots icon. Then select the "Add network" option.

2. The Add Network pop up screen will display. Enter the case sensitive Wi-Fi network SSID. Next select the security type from the drop-down menu. Now enter the case sensitive Wi-Fi network password. Next select the "Show advanced options".

3. Select the Proxy drop down menu and select the Manual option.

4. To scroll the screen up or down place finger onto screen and slide the screen towards the top or bottom. In the Proxy hostname section enter the proxy host name. Then in the Proxy port section enter the proxy port number. If there is a Bypass for proxy value, then enter the bypass proxy information.

5. Next select the IP setting and then choose Static from the drop-down menu. In the IP address field enter the IP address. In the Gateway section enter the gateway address. In the Network prefix length enter the network length. In the DNS 1 section enter the DNS 1 IP address. In the DNS 2 section enter the DNS 2 IP address. To save settings select "CONNECT".


Cellular Communications

The A920 supports cellular communications. An AT&T^® or T-Mobile^® SIM card is needed to support cellular. This section is dedicated to the SIM card installation and cellular use. The terminal may come with the SIM card already installed and ready for use when you receive your terminal.
For the terminal to communicate with the host or to download applications the terminal communication method should be configured in advance.
Please consult with AT&T regarding settings and configuration questions.

Installing a SIM card

The cellular SIM card should be installed before using cellular communications. The Standard size SIM card size is 25mm (0.984252") x 15mm (0.590551").

1. Turn off the terminal. Turn the terminal upside down and remove the battery cover plate. To remove the battery cover plate, slide the switch to the right. The switch will be tight. Lift the cover from the bottom and then pull up.
2. Remove the battery. Lift the battery from the bottom upwards and towards the bottom and pull out.

3. SIM card installation. After the battery is removed the SIM card can be installed. There is 1 SIM and 2 SAM card slots. Locate the SIM slot and insert the SIM card into the slot.

4. Reinstall battery.
   Insert the top of the battery first and then lower the back of the battery into the terminal. Next re-install the battery cover by inserting the top first and lowering the back side down. Once the lid is in place slide the lock to the left.

5. Next re-install the battery cover by inserting the top first and then lowering the back side down. Once the lid is in place slide the lock to the left. The slide should be tight.

6. Power on the terminal. When it is finished powering up it will be on the IDLE screen. Select the "Settings".

7. Enter the password 9876, then select the green check mark, then the [OK] button.

8. Select [More] and then select Cellular Networks to configure the cellular network.

9. Select [Cellular Networks]

10. Turn on the [Data enable] option. Use the back arrow to exit out to the main screen. End.


How to Change the Paper Roll

1. To remove and replace the thermal paper roll turn the terminal over. Then near the top back side of the terminal place your finger under the paper lid release lever and pull the entire lid assembly away from the terminal. To remove the paper, roll simply pull the paper roll out.

2. To install a new thermal paper roll drop in the paper roll with the paper pulling from the back and out the top of the roll. Pull about 2" of paper out and close the lid until the lid snaps into place.

3. It is important the lid is fully closed so that the paper roll fully engages the paper. Tear off any excess paper.


Remove and Replace Battery

1. To remove and replace the battery position the A920 to show the backside of the terminal. Next locate battery cover and slide the open/close slide switch to the right. The slide switch is a tight fit. Then lift the battery cover from the base and pivot the lid upwards and remove.

2. Next lift the battery from the bottom side and swing it upwards from the bottom and pull out.
   To install a battery first remove the protective cover over the battery connectors. Then insert the battery with the gold connectors towards the top right side. Slide the battery upwards and then carefully push the bottom into place. Next insert the top of the battery lid into the lid hinges and then lower the bottom of the lid cover until it is flush with the case. Next slide the lid switch to the left. The slide switch maybe tight.


PAX Customer Support

For questions or help with the terminal installation please contact your service provider or PAX customer support.
PAX Technology Inc.
E. support@pax.us
T. (877) 859-0099
W. www.pax.us
