PAX D180 - MPOS Terminal Quick Setup Guide

Contents Checklist

Please check the components after unpacking. If any one of them is missing, or if there is a page missing from the product manual, ect., please contact the dealer.

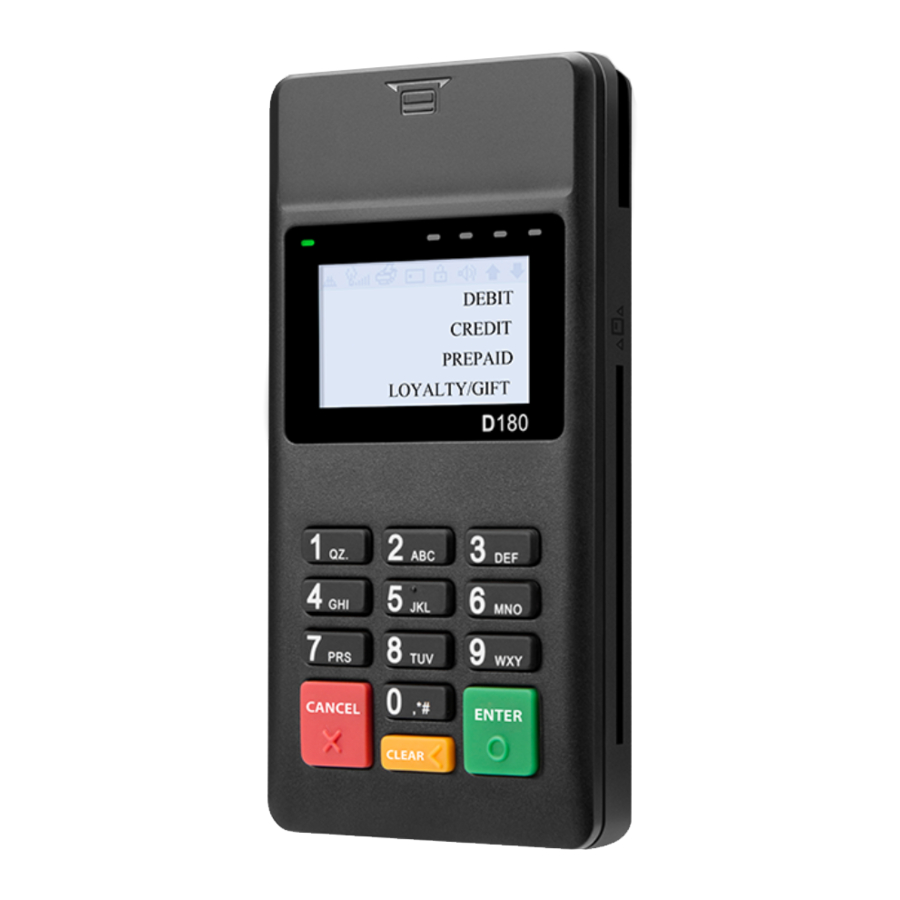

Product Description

1. Charging LED indicator
2. Power key
3. Magnetic stripe card reader
4. Display
5. Smart card reader
6. Keyboard

7. MicroUSB
8. Serial number
9. Nameplate

Quick Start

Connect to PC with USB cable

1. Connect PC with D180 by USB cable.
2. To shop, click PAY button on PC.
3. Confirm amount displayed on D180 screen.
4. Prompt for reading card on D180.
5. Input PI N through pinpad of D180.
6. Finish the transaction.

Bluetooth ® wireless technology Connection

1. Turn Bluetooth on and scan for the D180. By default, the device name of D180 is PAX D180_XXXX, with XXXX being the last 4 letters of the Bluetooth MAC address of D180. Please note that the device name may be modified according to user requirement.
2. Pair the mobile equipment with the D180; during pairing, the mobile equipment may prompt for pairing passkey. Enter the passkey and click OK to confirm.
3. To shop on mobile equipment and/or place an order, submit order and click PAY button.
4. Confirm amount displayed on D180 screen.
5. Prompt for reading card on D180.
6. Input PIN through pin pad of D180.
7. Finish the transaction.

Instructions

Power ON/OFF

Power On: press and hold the power key until the display turns on.
Power Off: press and hold the power key until the display turns off.

Swiping Magnetic Stripe Card

When swiping, the backside of the card must be faced up as shown in Figure 3. Bi-directional swiping is supported. Please swipe the card with a constant speed.

Reading Smart Card

When inserting smart card into its slot, the chip of smart card must be facing up. In order to avoid any physical damage to the card or the smart card slot of the terminal, it is recommended to insert the card gently. If smart card is successfully detected by the terminal, the icon of the smart card will display at the top of the screen.

ICC Operation Process

Before inserting the IC card, please check inside and around the IC card slot. If there is any suspicious object, please don't insert card and immediately report to the relevant staff.

Battery Charging

To charge the battery, Connect the terminal to a PC via a USB cable. For the first time, please charge the b attery b efore using the terminal.

Charging LED indicator

The charging LED indicator shows,

• Solid red when the battery is being charged.
• Solid green when the USB cable is connected and the battery is fully charged.

Installation and Usage Tips

1. Do not damage the USB cable. If the USB cable is damaged, please do not use it any more.
2. Before connecting the USB cable to a power supply, such as a power adapter, please make sure that its supply voltage is appropriate for the terminal.
3. Do not expose the terminal in sunshine, or in humid, hot, and dusty environmental conditions.
4. Keep the terminal away from liquid materials.
5. Do not plug any unknown material into any port of the terminal, since ii may cause serious damage to the terminal.
6. If the terminal is malfunctioning, please contact professional POS technicians.
7. Do not put the terminal in explosive or hazardous area.

Responsible Party:
PAX Technology Inc.
8880 Freedom Crossing Trail,
Building 400, 3rd Floor, Suite 300,
Jacksonville, FL, 32256, USA
Help Desk: 877-859-0099
www.pax.us
