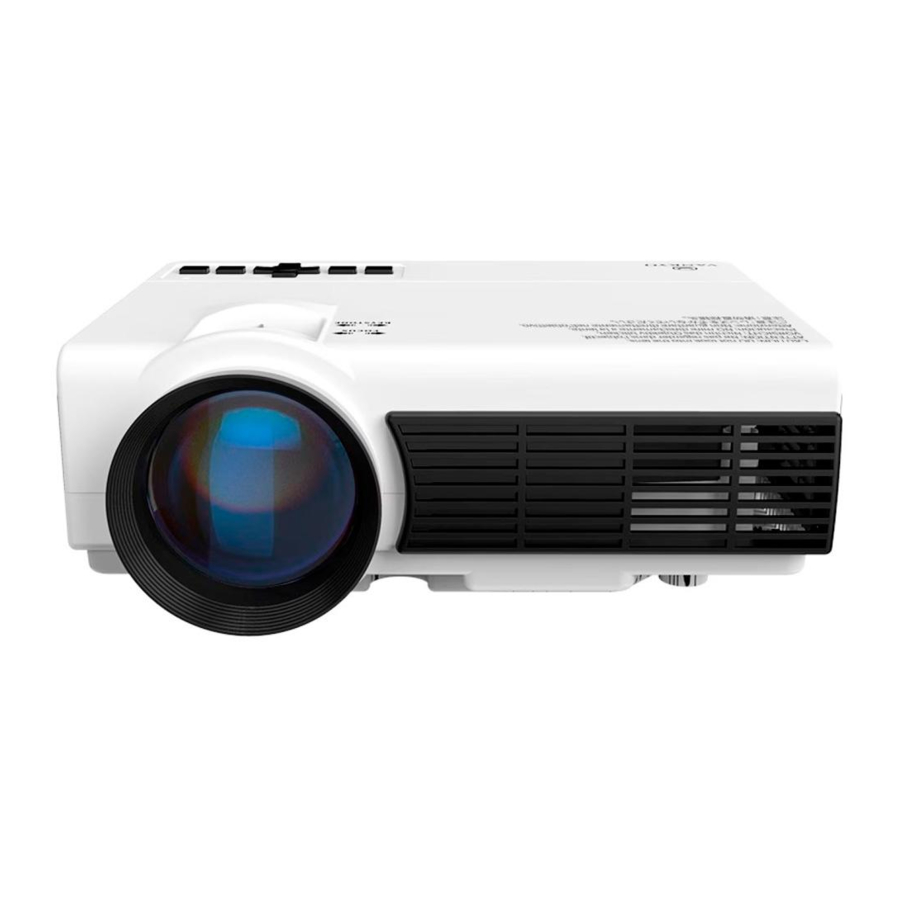

Vankyo Leisure 3W - Projector Manual

PACKING LIST

FUNCTION OVERVIEW

QUICK START

Plug the power cord into an outlet.

PROJECTION DISTANCE & SIZE

The recommended projection screen is around 90 inches with a projection distance Of around 9.84ft. Ambient darkness will improve the clarity of the projected images.

1. Go to Homepage > Setup > Network > WiFi, then select Scan to display the Wi-Fi list.
2. Press the Up/Down button to select your Wi-Fi, then press the 0K button to continue.
3. Enter the correct password, then select Confirm to get Internet connection.

MULTIMEDIA CONNECTION

Projecting from a USB Disk/microSD card

1. Turn on the projector and insert your USB disk/microSD card into the USB port/ TF card slot.
2. Go to Homepage to select Media, it will display an interface for projecting from a USB Disk/microSD card.


3. Select the category of the file you would like to project accordingly.
   *To play the video, select Movie,then find your video file and play it by pressing the 0K button.
   *To play the audio file, select Music to find your audio file. Select it first by pressing the 0K button, then select the Play option to start playing.
   *To project photo, select Photo, then find your photo and play it by pressing the 0K button.
   * To project text, select Text, then find your text file and open it by pressing the 0K button.

Different File Formats Supported
Text Format Supported: TXT
Image Format supported: BMP/JPG/PNG/GIF/JPEG
Audio Format supported: ACC/MP2/MP3/PCM/FLAC/WMA
Video Format supported: AVI/MP4/MKV/FLV/MOV/RMVB/3GP/MPEG1/MPEG2/H.264/XVlD

Projecting from HDMI Input Connection

1. Turn on the projector, then connect the projector to your device with the provided HDMI cable.
2. Go to Homepage, then select Source> HDMI to project the contents from your device to the screen/wall.


SCREEN MIRRORING

For iOS System

1. Connect your iOS device and the projector to the same Wi-Fi network.
2. Go to Homepage > iOS Cast to display the following interface.


3. Swipe your iOS device up, then tap Screen Mirroring/AirPlay Mirroring and search for the projector.
4. Select ZYCast-xxxx(icast) from the searching list.
5. Your iOS device display will be projected on the wall/screen.

For Android system

To activate this function, please make sure your android device supports Multi-screen/WireIess display. Names may differ from different Android devices.

1. Turn the Wi-Fi to ON status in the settings of your Android device. To make a smoother streaming, please do not connect to any Wi-Fi on your projector.

2. Go to Homepage > Miracast to enter the following interface.


3. Activate Multi-Screen function in your Android device and search for the projector.
4. Select ZYCast-xxxx(mcast) from the searching list.
5. Your Android device display will be projected on the wall/screen.

Note: An extra HDMI adapter is needed when mirroring your device through wired connection.

SETTINGS

Goto Homepage> Setup to adjust the settings of your projector.

Network
Connect the projector to your Wi-Fi.

Projection
Set up projection mode.

Advanced
Change language, select boot source, set up sleep timer, update firmware, make a factory restore, etc..

Information
Check the model number, memory, software version, etc..

SPECIFICATION

TROUBLESHOOTING GUIDE

1. Blurry Image

• Adjust focus ring/keystone.
• Projector and screen/wall must be in effective distance.

2. Remote Unresponsive

• Make sure remote points at IR receiver directly.
• Do not cover IR receiver.
• Try a new pair Of batteries.

3. Mobile Connection

iOS:Genuine lightning to HDMI cable
Android: Micro USB to HDMI adapter/Type C to HDMI cable

4. Upside Down Images
   Go to Home > Setup > Projection > Projection Mode to flip the projection image.

VANKYO SUPPORT

www.ivankyo.com

@VankyoOfficial

VANKYO
