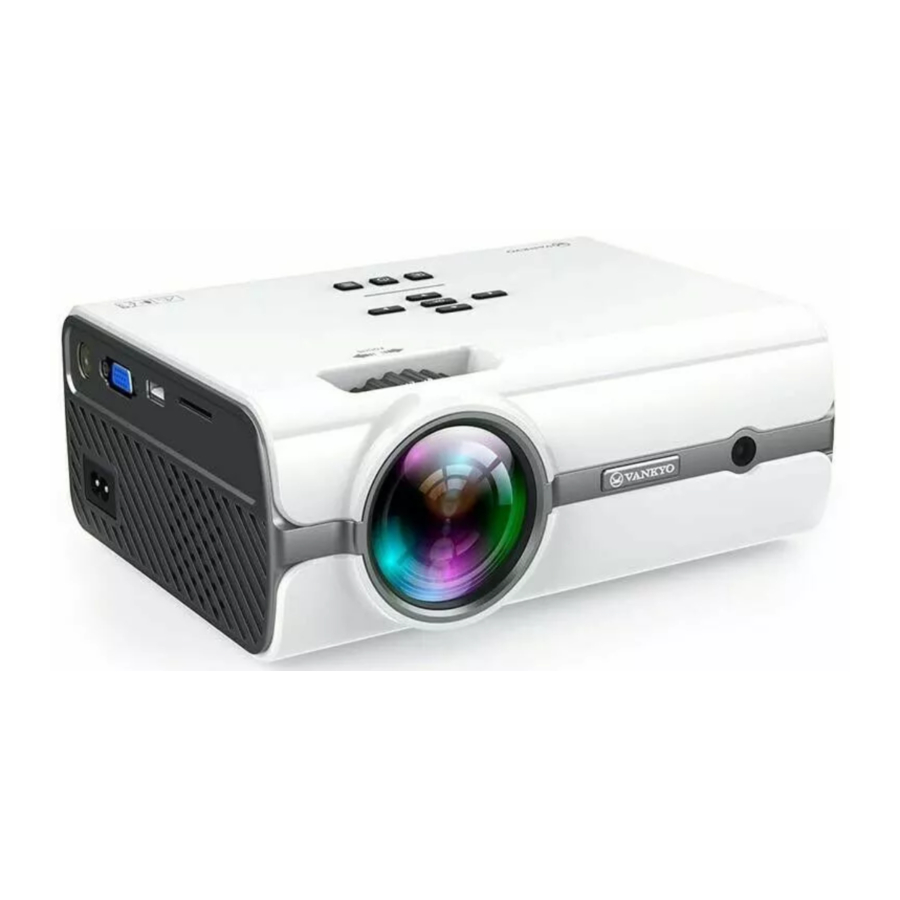

Vankyo LEISURE 410 - Projector Manual
PACKING LIST
NOTICE
FUNCTION OVERVIEW
QUICK START
- Plug the power cord into an outlet.
![]()
- Take off the lens cover.
![]()
- Connect your device to the projector correctly.
![QUICK START - Step 1 - Connect your devices]( "Vankyo - LEISURE 410 - QUICK START - Step 1 - Connect your devices")
- Press the Power Button to turn on the projector.
![]()
- Select the correct input source to project your device.
![]()
- Adjust the kickstand accordingly.
![]()
- Adjust the keystone and focus ring to get the best image performance.
![QUICK START - Step 2 - Adjust the keystone]( "Vankyo - LEISURE 410 - QUICK START - Step 2 - Adjust the keystone")
- Press the Power Button twice to turn off the projector
![]()
INPUT SOURCE
Press
on the projector or remote to enter the interface of Input Source.
- Multimedia Connection
![INPUT SOURCE - Multimedia Connection]( "Vankyo - LEISURE 410 - INPUT SOURCE - Multimedia Connection")
- HD Connection
![INPUT SOURCE - HD Connection]( "Vankyo - LEISURE 410 - INPUT SOURCE - HD Connection")
- VGA Connection
![INPUT SOURCE - VGA Connection]( "Vankyo - LEISURE 410 - INPUT SOURCE - VGA Connection")
DEVICE CONNECTION
PROJECTION DISTANCE&SIZE
The recommended projection screen is around 90 inches with a distance of around 9.84ft.
Ambient darkness will improve the clarity of the projected images.
SPECIFICATION
| Display Technology | LCD | Light Source | LED |
| Resolution | Native 1280 x 720 | Input Signal | 420P, 720P, 1080P |
| Installation Type | Front/Rear/Ceiling | Aspect Ratio | 4:3/16:9/Auto |
| Focus | Manual | Keystone | ± 15° |
| Speaker | 2W/4ohm | Power Supply | AC 100-240V, 50/60Hz |
| Unit Dimension | 575 x 320 x 450mm (22.6 x 12.6 x 17.7 inch) | Unit Net Weight | 1.2kg(2.6lb) |
| Photo Format Supported | BMP/JPG/PNG | Audio Format Supported | MP3/WMA/M4A/AAC/WAV |
| Video Format Supported | MPG/MPE/VOB/TS/RM/RMVB/AVI/MP4/DlV/MOV/MKV/ASF/FLV/WMV/3GP/3G2 | Ports | AVx 1/VGA x 1/USBx 1/HD x 1/ ATV x 1/Audio out x 1/ Memory Card Slot x 1 |
| Mounting Screw | 1/4" | Number of Screw | Not included |
TROUBLESHOOTING GUIDE
-
Blurry Image
- Adjust focus ring/keystone.
- Projector and screen/wall must be in effective distance.
-
Remote Unresponsive
- Makesure remote points at IR receiver directly.
- Do not cover IR receiver.
- Try a new pair of batteries.
-
Mobile Connection
iOS: Genuine lightning to HDMI cable
Android: Micro USB to HDMI adapter/Type C to HDMI cable
-
Upside Down Images
Enter "Menu" on projector remote to flip the projection image.
The symbol indicates ACvoltage
VANKYO SUPPORT
@VankyoOfficial
VANKYO
| North America | support@ivankyo.com |
| United Kingdom | support.uk@ivankyo.com |
| Deutschland | support.de@ivankyo.com |
| France | support.fr@ivankyo.com |
| Espaäa | support.es@ivankyo.com |
| Italia | support.it@ivankyo.com |
 | support.jp@ivankyo.com |
