www.ivankyo.com
2018-2019 VanTop, Inc. All rights reserved.

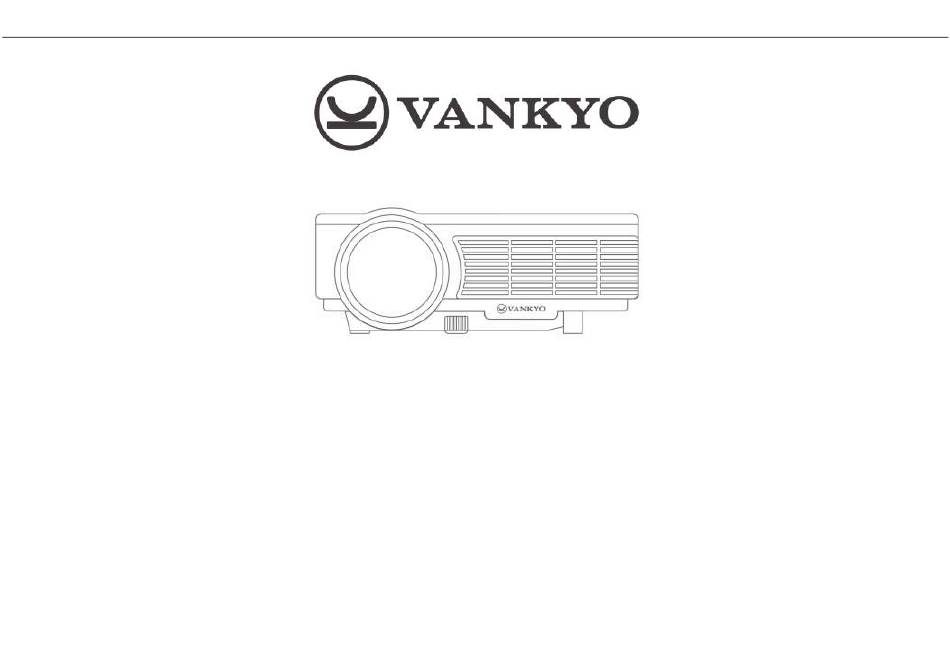

Leisure 3

User Manual

V1.01
1 / 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leisure 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vankyo Leisure 3

  • Page 1: User Manual

    2018-2019 VanTop, Inc. All rights reserved. Leisure 3 User Manual V1.01 1 / 32...
  • Page 2: Table Of Contents

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Contents Notice ..............................................................................3 Introduction to your projector ....................................................................3 Product Packing List ......................................................................3 Projector Overview ....................................................................... 4 Projector Specification......................................................................5 Setting up Your Projector ......................................................................6 Projector Installation Options ..................................................................6 Projection Distance and Size ..................................................................
  • Page 3: Notice

    If the projector is mounted on a ceiling or wall, it should be installed by the safe mounting hardware; If the projector is damaged, do not attempt to service this product yourself and contact Vankyo Support Team; Introduction to your projector Product Packing List Please keep all the packaging material in case shipment is needed in the future.
  • Page 4: Projector Overview

    2018-2019 VanTop, Inc. All rights reserved. AV cable HDMI cable VGA cable Power cable If there is any part missing,please contact Vankyo Support Team. Projector Overview 4 / 32...
  • Page 5: Projector Specification

    2018-2019 VanTop, Inc. All rights reserved. Important: When you use the remote, please make sure to point at the IR in the front of the Leisure 3. Projector Specification 5 / 32...
  • Page 6: Setting Up Your Projector

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Setting up Your Projector Projector Installation Options Depending on how you positioned the projector, you may need to change the projection direction to project your images correctly. If you project from the ceiling or from the rear, please go to Menu >Picture >...
  • Page 7: Projection Distance And Size

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. 3 means Front On Ceiling, which flips the image over top-to-bottom to project upside-down from a ceiling or wall mount. Note: Wherever you set up the projector, make sure to position it squarely in front of the center of the screen or the wall, not at an angle, if possible. Projection Distance and Size The distance at which you place the projector from the screen determines the approximate size of the image.
  • Page 8: Projector Connections

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Note: Being too far or too close between the projector and the wall/screen, or the incorrect adjustment of the focus ring and Keystone may result in the poor image. Projector Connections When you connect any device to the projector, please follow the steps below at your first use of the projector. Step 1: Connect the power cord into the projector’s power inlet, then plug the power cord into an electrical outlet;...
  • Page 9: Playing The Video

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 1: After connecting the different external devices, press the button on the projector or the Source button on the remote to enter the interface of Input Source. Step 2: Press the Up/Down/Source on the projector or remote to select the correct input source, then press the OK/Enter button of the projector/remote to confirm. For USB/Hard Disk or microSD (TF) card, please select input source USB or TF;...
  • Page 10 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 2: Select the disk C, then press the OK button to enter the disk; Step 3: Select the video file or click the folder to enter the next directory till you find the video you would like to play in the directory; Step 4: Press the button on the projector or the Play/Pause button on the remote to play the selected video into full-screen mode.
  • Page 11 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Press the OK button when playing the video, it will show a bottom bar with different settings. Press the Down button or the Back button to hide it. Play/Pause: plays or pauses the current video; FB: Fast Backward, rewinds the video back quickly while playing it.
  • Page 12: Playing The Music

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Tips: Your projector can play videos with formats of AVI/MP4/MKV/FLV/MOV/ RMVB/3GP/MPEG1/ MPEG2/H.264/XVID. All the folders will be shown in the USB disk or microSD card, but you can only play the video files after you select MOVIE in the main interface. Playing the Music After selecting USB or TF in the interface of Input Source, you will enter the main interface which shows the options of MOVIE, MUSIC, PHOTO and TEXT.
  • Page 13 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 4: Press the button on the projector or the Play/Pause button on the remote to play the selected music into full-screen mode. Tips: Select the Return icon and press the OK button to return to the root directory shown in Step 1 no matter in which directory, while select the Up Folder icon and press the OK button to return to the parent directory;...
  • Page 14: Playing The Photo

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Play/Pause: plays or pauses the current music; FB: Fast Backward, rewinds the music back quickly while playing it. The rewinding speed ranges from 2 X to 16X; FF: Fast Forward, pushes the music to move forward quickly while playing it. The forward speed ranges from 2 X to 16X; Prev.: Previous, goes back to the previous music;...
  • Page 15 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 1: Select PHOTO in the main interface by pressing the UP/Down/Left/Right buttons and the selected frame will be highlighted to be blue with font in yellow. Then press the OK button to enter the following interface; Step 2: Select the disk C, then press the OK button to enter the disk;...
  • Page 16 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 4: Press the button on the projector or the Play/Pause button on the remote to play the selected photo into full-screen mode. Tips: Select the Return icon and press the OK button to return to the root directory shown in Step 1 no matter in which directory, while select the Up Folder icon and press the OK button to return to the parent directory;...
  • Page 17: Playing The Text

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. turning on the repeat; MUSIC: after you tick some music file(s) under the MUSIC category, go to the PHOTO category. Press the OK button when selecting the MUSIC icon in the interface of the photo playing, it will play the music file(s) you ticked for photo background;...
  • Page 18 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 1: Select TEXT in the main interface by pressing the UP/Down/Left/Right buttons and the selected frame will be highlighted to be blue with font in yellow. Then press the OK button to enter the following interface; Step 2: Select the disk C, then press the OK button to enter the disk;...
  • Page 19 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 4: Press the button on the projector or the Play/Pause button on the remote to play the selected text in full-screen mode. Press the OK button on the projector or the remote when playing the text, it will show a bottom bar with different settings. Press the Down button or the Back button to hide it. Prev P: Previous Page, goes back to the previous page of the current text;...
  • Page 20: Connecting To The Computer

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. button to return to the parent directory; All the folders will be shown in the USB disk or microSD card, but you can only play the text after you select TEXT in the main interface. Your projector can play the text files with a format of TXT.
  • Page 21 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 2: Connect the VGA cable to your computer's VGA port; Step 3: Connect the other end to the VGA port on your projector; Step 4: Press the button to enter the interface of Input Source; Step 5: Select VGA to project any file on your computer by pressing the Up/Down or the button.
  • Page 22 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. You need to select the project option when connecting your computer to the projector at the first use. For Windows7 and higher system, pressing the Windows logo key + P key at the same time invokes a display-switch toolbar with various display options shown below: ⚫...
  • Page 23: Connecting To The Mobile Device

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. be toward the projector’s screen while giving a presentation. This way you can watch the computer screen while the audience watches the projector screen and you won’t have to continually turn your back to the audience during the presentation. Extend - This option splits the image between the computer and projector.
  • Page 24 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Step 5: Press the button to enter the interface of Input Source; Step 6: Select HDMI to project any file on your mobile device by pressing the Up/Down or the button. Tip: Select Trust when there may be a pop-up window on your mobile device, then you can project any files on the mobile device; When it shows the screen with some QR codes, butterfly icon and so on after selecting, please do not scan any QR code and just wait for a moment;...
  • Page 25: Connecting To The Dvd Player

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. For iPhone For Android device with Micro USB For Android device with Type-C Connecting to the DVD Player If you would like to watch movies by using the projector and a DVD player, you can use the AV cable in the package. Step 1: Turn on your DVD player and the projector;...
  • Page 26: Using The Basic Projector Features

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Using the Basic Projector Features You can use the projector's Menu system to adjust the settings to control how your projector works. Picture Settings Press the Menu button, it will display the PICTURE settings shown below. 26 / 32...
  • Page 27: Sound Settings

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Picture Mode: switches among the image modes of Standard, Soft, User and Vivid for different projected contents. You can set up the Contrast, Brightness, Color, Sharpness and Tint for the image after you select the User mode; Color Temperature: switches among the color temperature modes of Medium, Warm, User and Cool for different color preferences of the image.
  • Page 28: Option Settings

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. Sound Mode: To set up sound patterns of Standard, MUSIC, MOVIE, Sports and User for different projected contents; Balance: to balance the sound of the left and right channel of the speaker; Auto Volume: to intelligently adjust volume. Press the Up and Down buttons to select the option you would like to change, then press the OK button to enter the submenu to set up.
  • Page 29: After Using Your Projector

    www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. OSD Language: to set up the language displayed in the operation interface; Restore Factory Default: to reset the projector; Blending: to adjust the background transparency of the Menu interface. You can choose from Low, Middle, High and Off; OSD Duration: to adjust the duration of keeping the Menu interface.
  • Page 30 www.ivankyo.com 2018-2019 VanTop, Inc. All rights reserved. *The Projector or the connected device (PC, TV, etc.) is muted *Dolby sound is not supported, exit to play again *The audio format is not supported by the projector *VGA connection can only transmit analog signal of video not audio. An external speaker is required when the device is connected via VGA cable. *Encryption applied to the videos or media player which holds the video.
  • Page 31 *Make sure the power plug is working and firmly fitted into the outlet. *If the LED indicator on the projector is light up, but the fan doesn't work, please contact Vankyo Team for assistance. *Overheat on the projector will activate built-in power-off protection panel. Restart the projector when it gets cooler.
  • Page 32 *Correct input source must be selected when you use the USB disk or SD card; otherwise, No Signal will be shown on the screen. 14. Why doesn’t the Projector’s Lamp Light Up or Power On? *Please contact Vankyo for assistance when this occurs. 15. How Can I Change the Language? *Press the Menu button to enter Option -OSD Language interface to select the language 16.
