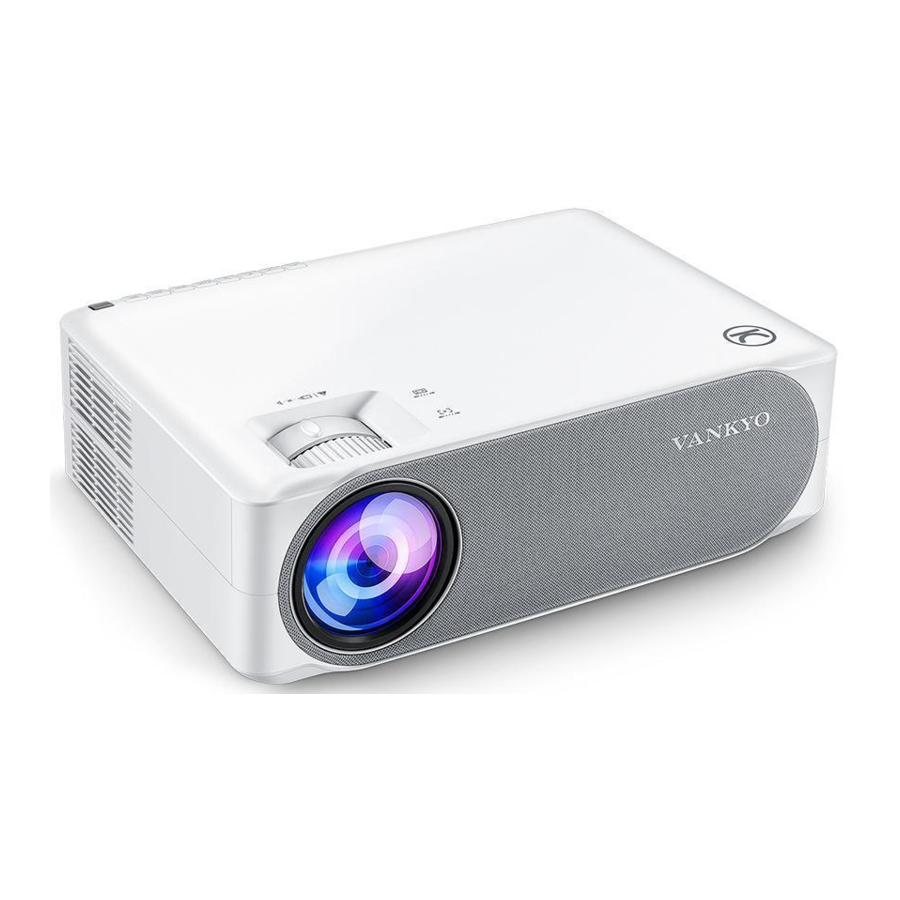

Vankyo Performance V630 - Projector Manual

PACKING LIST

information NOTICE

support@ivankyo.com

FUNCTION OVERVIEW

QUICK START

Plug the power cord into an outlet.

Take off the lens cover.

Connect your device to the projector correctly.

Press the Power Button to turn on the projector.

Select the correct input source to project your device.

Adjust the kickstand accordingly.

Adjust the focus ring to get a clear image. Press to correct the image shape.

Press the power button twice to turn off the projector.

KEYSTONE CORRECTION

Press on the projector/remote, then select OPTION> Keystone. Press the button to select from H. Calibration, V. Calibration, Rotate and Auto Adjust, then press to start correcting the image shape.

Vertical & Horizontal Correction

PROJECTION DISTANCE & SIZE

PROJECTION DISTANCE & SIZE
The recommended projection screen is around 90 inches with a projection distance of around 9.84ft. Ambient darkness will improve the clarity of the projected images.

INPUT SOURCE

Press on the projector or remote to enterthe interface of Input Source.

USB Connection
HD Connection
VGA Connection

PROJECTOR CONNECTION

SPECIFICATION

Display Technology	LCD	Light Source	LED
Resolution	Native 1920x 1080	Input Signal	576i, 720P, 1080i, 1080P
Installation Type	Front/Rear/Ceiling	Aspect Ratio	4:3/16:9/Auto
Focus	Manual	Keystone	± 15^o/± 45^o
Speakers	5W/4 Ohm	Power Supply	AC 100 - 240V, 50/60Hz
Unit Dimension	315 x235 x 109mm (12.4 x 9.3 x 4.3 inch)	Unit Net Weight	2.7 kg (5.95 lb)
Photo Format Supported	BMP/JPG/PNG/GIF	Audio Format Supported	AAC/MP2/MP3/PCM/FLAC/WMA
Video Format Supported	AVI/MP4/MKV/FLV/MOV/RMVB/3GP/MPEG1/ MPEG2/H.264/XVID/JPEG	Ports	HD In x 2/USB x1/VGA Port x 1/ AV In x 1/Audio Out x 1/ SD Card Slot x1
Mounting Screw	M4 Metric	Number of Screw	4

TROUBLESHOOTING GUIDE

Blurry Image

Adjust focus ring/keystone.
Projector and screen/wall must be in effective distance.

Remote Unresponsive

Make sure remote points at IR receiver directly.
Do not cover IR receiver.
Try a new pair of AAA batteries.

Mobile Connection

iOS:Genuine lightning to HDMI cable
Android: Micro USB to HDMI adapter/Type C to HDMI cable

Up side Down Images

Go to Menu > PICTURE > Projection Mode to flip the projection image.
