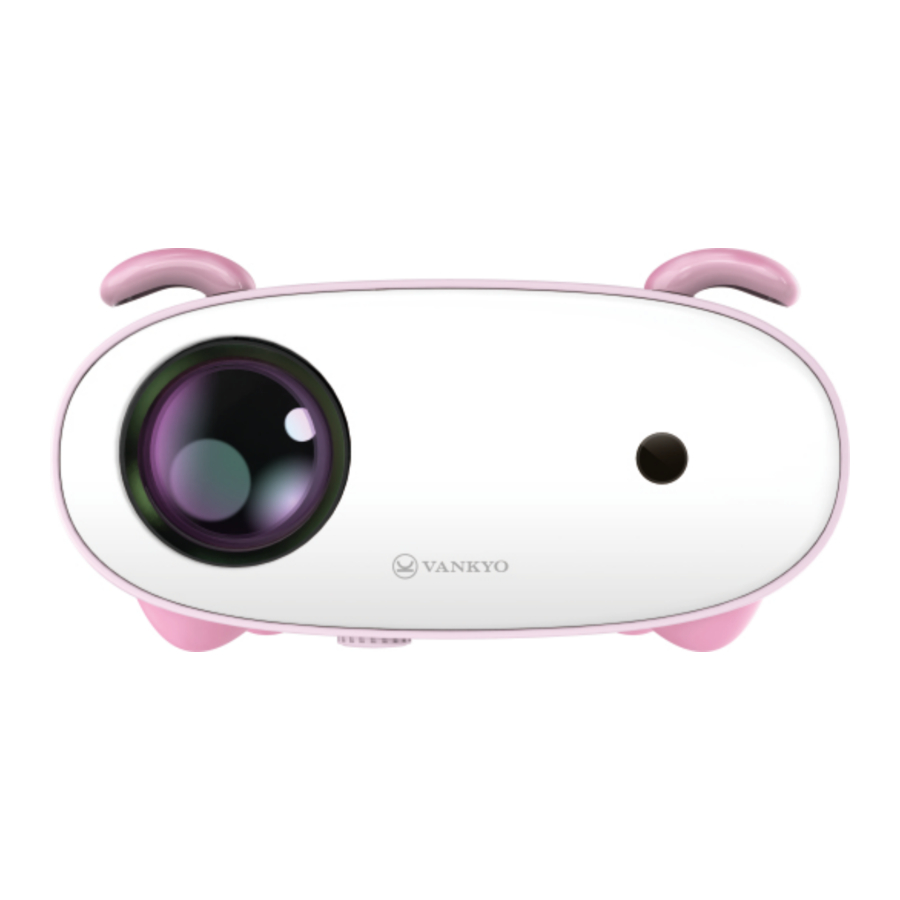

Vankyo Miracle 120 - Projector Manual
PACKING LIST
NOTICE
Recommended
NOT Recommended
FUNCTION OVERVIEW
QUICK START
- Plug the power cord into an outlet.
![]()
- Move the focus to the right to take off the lens cover.
![]()
- Connect your device to the projector correctly.
![QUICK START- Step 1]( "Vankyo - Miracle 120 - QUICK START- Step 1")
- Press the Power Button to turn on the projector.
![]()
- Select the correct input source by pressing the
![]()
button.
![]()
- Adjust the kickstand accordingly.
![]()
- Adjust the keys tone and the focus to get the best image performance.
![QUICK START- Step 2]( "Vankyo - Miracle 120 - QUICK START- Step 2")
- Press the Power Button twice to turn off the projector.
![]()
button.
INPUT SOURCE
Press
on the projector or remote to enter the interface of Input Source.
- USB 1 Connection
![INPUT SOURCE - Part 1]( "Vankyo - Miracle 120 - INPUT SOURCE - Part 1")
- USB 2 Connection
![INPUT SOURCE - Part 2]( "Vankyo - Miracle 120 - INPUT SOURCE - Part 2")
- HD Connection
![INPUT SOURCE - Part 3]( "Vankyo - Miracle 120 - INPUT SOURCE - Part 3")
PROJECTOR CONNECTION
PROJECTION DISTANCE&SIZE
- The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector properly as needed.
- Ambient darkness will improve the clarity of the projected images.
SPECIFICATION
| Display Technology | LCD | Light Source | LED |
| Resolution | Native 800 x 480 | Input Signal | 480P/576i/576P/720i/720P/1080i /1080P |
| Installation Type | Front/Rear/Ceiling | Aspect Ratio | 4:3/16:9/Auto |
| Focus | Manual | Keystone | ± 15º |
| Speaker | 3 W/4ohm | Power Supply | DC 20V |
| Unit Dimension | 8.11 x 6.50 x 4.13 in (206 x 165 x 105mm) | Unit Net Weight | 1.98lb (0.897kg) |
| Photo Format Supported | BMP/JPG/PGN | Audio Format Supported | MP3/WMA/OGG/AAC/FLAC/WAV |
| Video Format Supported | 3GP(H.263, MPEG4)/AVI(XVID,DIVX, H.264] /MKV(XVID,H.264, DIVX)/FLV (FLV)/MOV(H.234) /MP4(PEG4,AVC) /MPG(MPEG1)/VOB(MPEG2)/MPG (MPG-PS)/RMVB(RV40)/RM | Ports | HD In x 1/Audio out x I/USB Port x 2 |
| Mounting Screw | 1/4" | Number Of Screw | 1 |
TROUBLESHOOTING GUIDE
What should I do if I get blurry images?
- Adjust focus ring/keystone.
- Projector and screen/wall must be in effective distance.
What should I do if the remote is unresponsive?
- Make sure remote points at IR receiver directly.
- Do not cover IR receiver.
- Try a new pair of AAA batteries.
How do I flip the upside-down images?
- Go to Menu > PICTURE > Projection Direction to flip the projection image.
How do I restore the projector to factory default?
- Go to Menu > OPTION> Restore Factory Default to restore factory settings as needed.
How do I set the language?
- Go to Menu > OPTION > OSD Language to select the language.
The symbol indicates DC voltage
VANKYO SUPPORT
North America support@ivankyo.com
United Kingdom support.uk@ivankyo.com
@VankyoOfficiaI
VANKYO
