Installation Instructions for Bosch Boards to TBHD2:
Mounting Bosch B8512G/B9512G IP Control Panels:
1. Fasten lock nuts onto top two (2) pems, leaving enough space to accommodate B8512G/B9512G.
2. Slide top mounting holes of B8512G/B9512G over pems of backplane configuration (B) (Fig. 4, pg. 5).
3. Fasten 5/16" pan head screw (provided) through mounting hole of B8512G/B9512G.
Mounting Bosch Modules:
1. Utilize mounting bracket to mount Bosch modules to the backplane configurations (B) (Fig. 3, pg. 3).
Bosch Board Position Chart:
Bosch Board(s)
Access Control*
Expansion Modules*
Interface Cards*
SDI/2 Devices*
Controllers

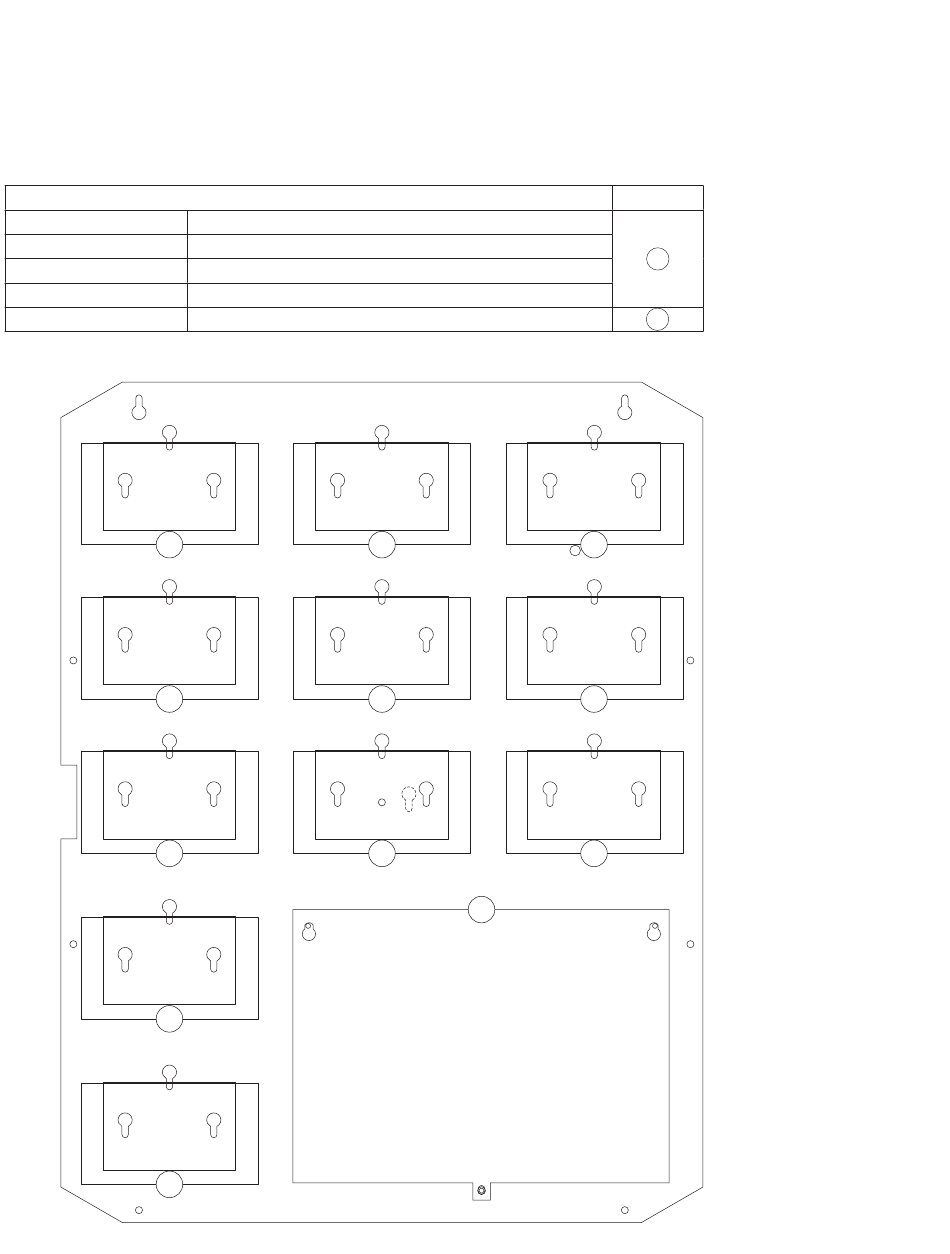

Fig. 4
A
A
A
A
A
Trove2BH2 Installation Guide
B901
B299, B600, D8128D, D8125/MUX, D8129
D125B, D129, D132A, D185, D192G, D8130
B208, B308, B426, B450, ICP-SDI-9114
D7412GV4, D9412GV4, B8512G, B9512G
A
A
A
B
Mounting
A
B
A
A
A
