Altronix Trove2BH2 Installation Manual page 3

Installation Instructions for Altronix Sub-Assemblies to TBH2:

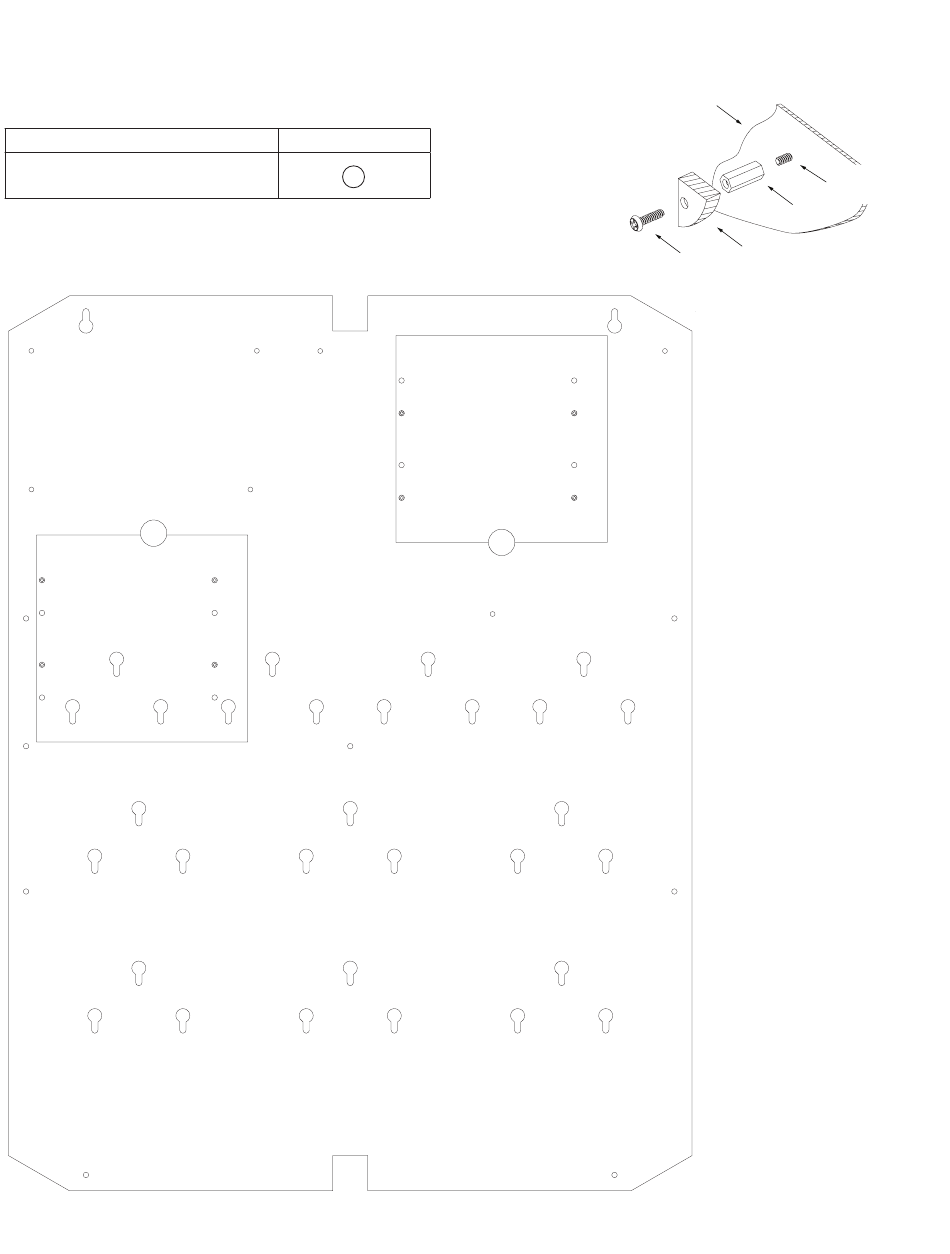

1. Insert screw (provided) into hole configuration (A) from the backside of backplane (Fig. 2a, pg. 3).
Screw spacer onto screws, repeat for additional three (3) board mounting holes.
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
Altronix Sub-Assemblies Position Chart:
Altronix Board
Altronix PD16W(CB) Sub-Assembly
Fig. 2
A
Trove2BH2 Installation Guide
Pem Mounting
A
Backplane
Pan Head
Screw
A
Fig. 2a
Pan Head Screw
(through backplane)
Spacer
Altronix
Sub-Assembly
- 3 -
