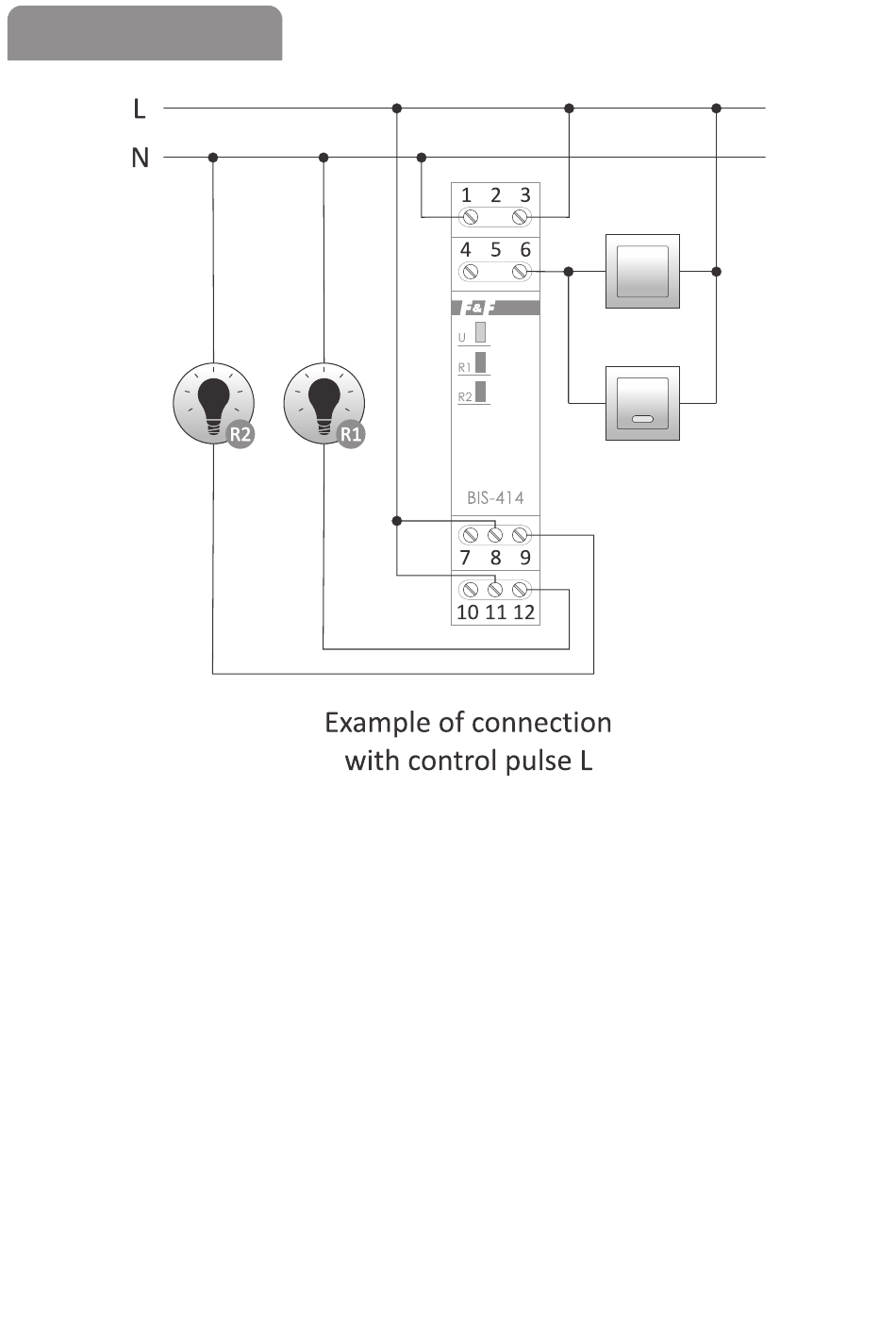

Wiring diagram
1-3
relay power supply 165÷265 V AC
6
control input
7
output 2 – NC contact (passive)
8
input 2 – COM contact power supply
9
output 2 – NO contact (active)
10
output 1 – NC contact (passive)
11
input 1 – COM contact power supply
12
output 1 – NO contact (active)
