Mounting
1. Disconnect the power supply.
2. Fix the relay on a rail in the control box.
3. Connect the supply wires to terminals 1-3 according to the
selected relay control option (control pulse L or N).
4. Connect momentary switches connected in parallel to termi-
nal 6 and the wire to which terminal 3 is connected.
5. Connect the powered receiver of section R1 in series to termi-
nals 11-12 and the receiver of section R2 in series to terminals
8-9..
BIS-414 is compatible with backlit buttons.

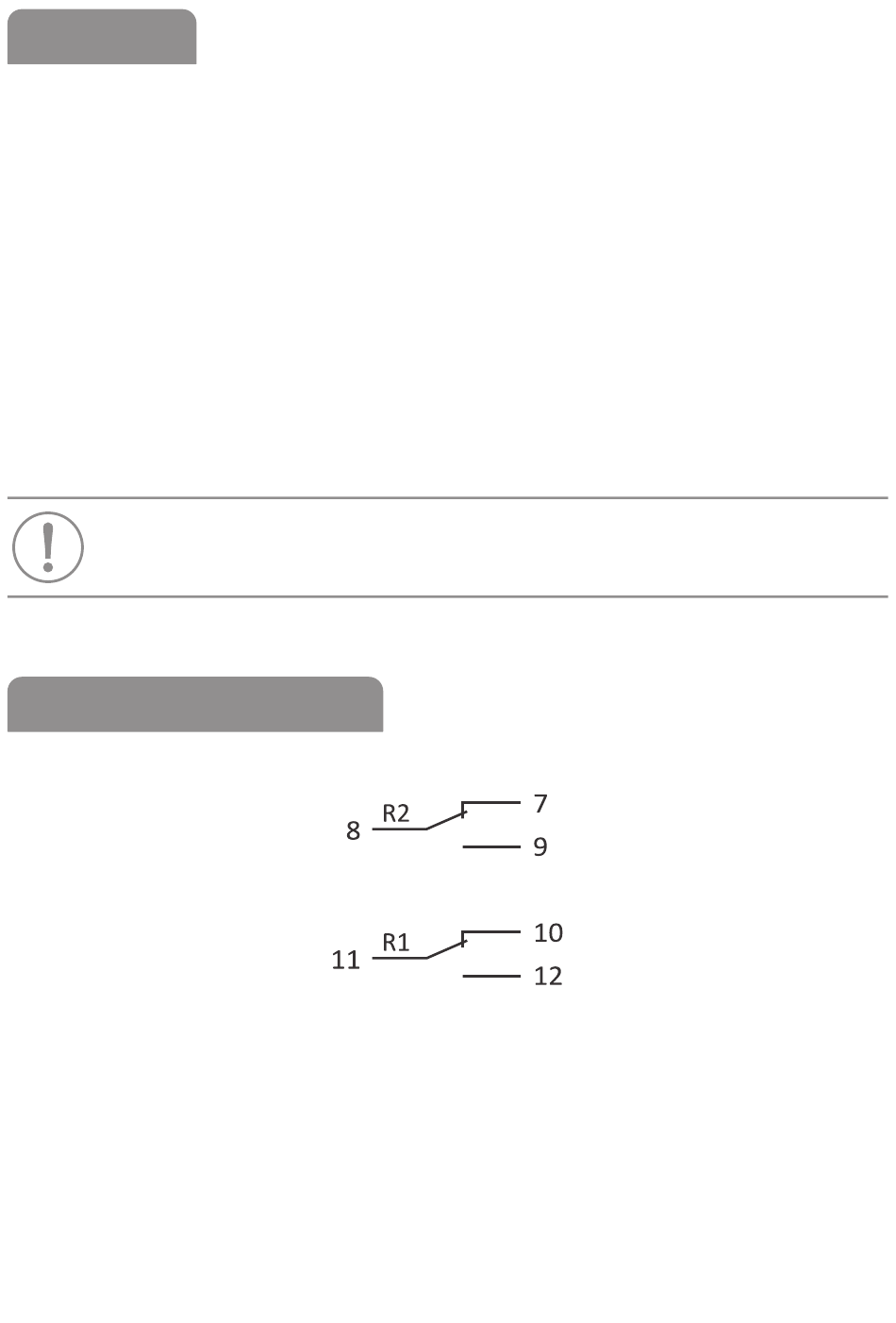

Contact configuration
- 3 -
