Bistable relay

Advertisement

Quick Links

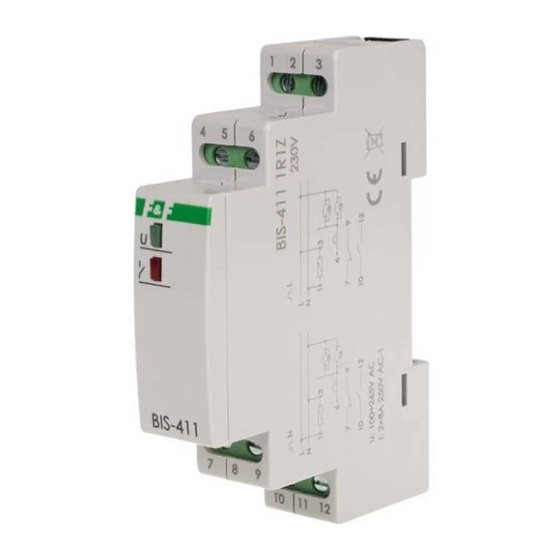

BIS-411 1R1Z
Bistable relay
Do not dispose of this device in the trash along with other waste! According to the Law on
Waste, electro coming from households free of charge and can give any amount to up to
that end point of collec� on, as well as to store the occasion of the purchase of new equip-
ment (in accordance with the principle of old-for-new, regardless of brand). Electro thrown
in the trash or abandoned in nature, pose a threat to the environment and human health.

Purpose

Electronic bistable pulse relay BIS-411 1R1Z allows switching on
or off the lighting or other device from several different points
by parallel connected, momentary (bell) control switches.

Functioning

The receiver is switched on after a current pulse caused by pres-
sing any momentary (bell) button connected to the relay. After
the next pulse, the receiver will be switched off. The relay does
not have a "memory" of the contact position, which means in
the event of a power failure and its subsequent return, the relay
contact will be set to "off". This prevents the controlled receivers
from being switched on automatically without supervision after
a prolonged power failure.
F&F Filipowski L.P.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
24 V
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIS-411 1R1Z and is the answer not in the manual?

Questions and answers

Summary of Contents for F&F BIS-411 1R1Z

  • Page 1 Purpose Electronic bistable pulse relay BIS-411 1R1Z allows switching on or off the lighting or other device from several different points by parallel connected, momentary (bell) control switches.
  • Page 2 Mounting 1. Disconnect the power supply. 2. Fix the relay on a rail in the control box. 3. Connect the power wires to terminals 1-3: for AC voltage, any polarity; for DC voltage: "+" to terminal 3, "–" to terminal 1. 4.
  • Page 3 BIS-411 1R1Z can’t work with backlit buttons. power supply of the relay 9÷30 V AC/DC control input output – NC contact (passive) 10-12 output – NO contact (active) Example of connection Different supply voltages for the relay and receiver - 3 -...
  • Page 4 The maximum total backlight current of all connected buttons must not exceed 5 mA. Technical data power supply 9÷30 V AC/DC contact separated 1×NO, 1×NC maximum load current (AC-1) 2×8 A control pulse current 5 mA activation delay 0,1÷0,2 s power supply indication green LED activation indication...
  • Page 5 Power table tungsten halogen fluorescent energy-saving 1000 W 600 W 500 W 250 W 100 W The above data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and pulse power supply units), switching frequency and operating conditions.
