BIS-404
Bistable relay,
sequential, 1-function
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collec� on, as well as to store the occasion of
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.

Purpose

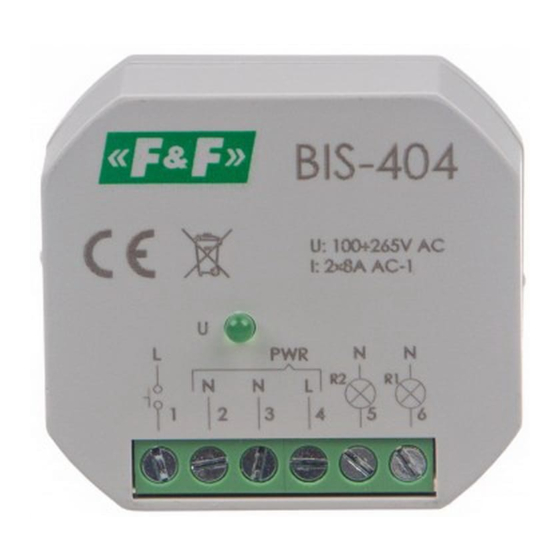

Electronic bistable pulse relay BIS-404 allows switching on or off
the lighting or other device from several different points by pa-
rallel connected, momentary (bell) control switches.
Relay has 2 switching sections and allows for switching of 2 light-
ning circuits (branches) or other receivers from several different
points and in accordance with the preselected sequence

Functioning

The relay power supply is indicated by a green LED "U".
Sequential relay has 2 separate outputs: R1 and R2. Contact
status (closed/opened) is forced sequentially in accordance with
a predetermined program. Contacts switching to another state
after subsequent pulse from control button. R1 and R2 contact
activation is indicated by the relevant R1 and R2 red LED. After
a power failure, state of the contact is reset. When the power is
back on, the relay starts from the sequence number 0.
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIS-404 and is the answer not in the manual?

Questions and answers

Summary of Contents for F&F BIS-404

  • Page 1 Electro thrown in the trash or abandoned in nature, pose a threat to the environment and human health. Purpose Electronic bistable pulse relay BIS-404 allows switching on or off the lighting or other device from several different points by pa- rallel connected, momentary (bell) control switches.
  • Page 2 Sequence Contact position Sections R1 and R2 open Only section R1 closed Only section R2 closed Sections R1 and R2 closed Subsequent pressings of a button repeat the sequence 0-3. Mounting 1. Disconnect the power supply. 2. Mount relay in the flush-mounted box. 3.
  • Page 3 Wiring diagram control input N power supply L power supply output – R1 section output – R2 section BIS-409 is compatible with backlit buttons. The maximum total backlight current of all connected buttons must not exceed 5 mA. - 3 -...
  • Page 4 Technical data power supply 165÷265 V AC contact 2×NO maximum load current (AC-1) 2×8 A control pulse current 1 mA total backlight current control buttons 5 mA activation delay 0.1÷0.2 s power indication green LED power consumption standby 0.15 W 0.7 W terminal 2.5 mm²...
  • Page 5 Warranty The F&F products are covered by a warranty of the 24 months from the date of purchase. Effective only with proof of purchase. Contact your dealer or directly with us. CE declaration F&F Filipowski sp. j. declares that the device is in conformity with the essential requirements of The Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/UE.
