Installation
5

ELECTRICAL CONNECTIONS

The Treesse spas are built in compliance with UL laws (XXXXXXXX) and are tested during production to ensure the
safety of the installer and user.
The connection must be made by an experienced, qualified electrician.
READ AND FOLLOW ALL INSTRUCTIONS
a)
b) A green coloured terminal or a terminal marked G, GR, Ground, Grounding, or the sym-
bol* is located inside the supply terminal box or compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the electric sup-
ply service panel with a continuous copper wire equivalent in size to the circuit conductors
supplying this equipment. * IEC 60417, Symbol 5019.
c) At least two lugs marked "BONDING LUGS" are provided on the external surface or on
the inside of the supply terminal box or compartment. To reduce the risk of electric shock,
connect the local common bonding grid in the area of the hot tub or spa to these terminals
with an insulated or bare copper conductor not smaller than No. 6 AWG.
d) All field-installed metal components such as rails, ladders, drains, or other similar hardware
within 3 m of the spa or hot tub shall be bonded to the equipment grounding bus with cop-
per conductors not smaller than No. 6 AWG.
SAVE THESE INSTRUCTIONS.
e)
When the connec-
tions have been
made, verify the
proper operation of the
differential switch by press-
ing the TEST key.
EN
The Manufacturer is not responsible for
connections made in a way that does not
comply with local codes, the specifications
in this manual or tampering with any electrical
component of the spa.
hole and the diameter of the cable.

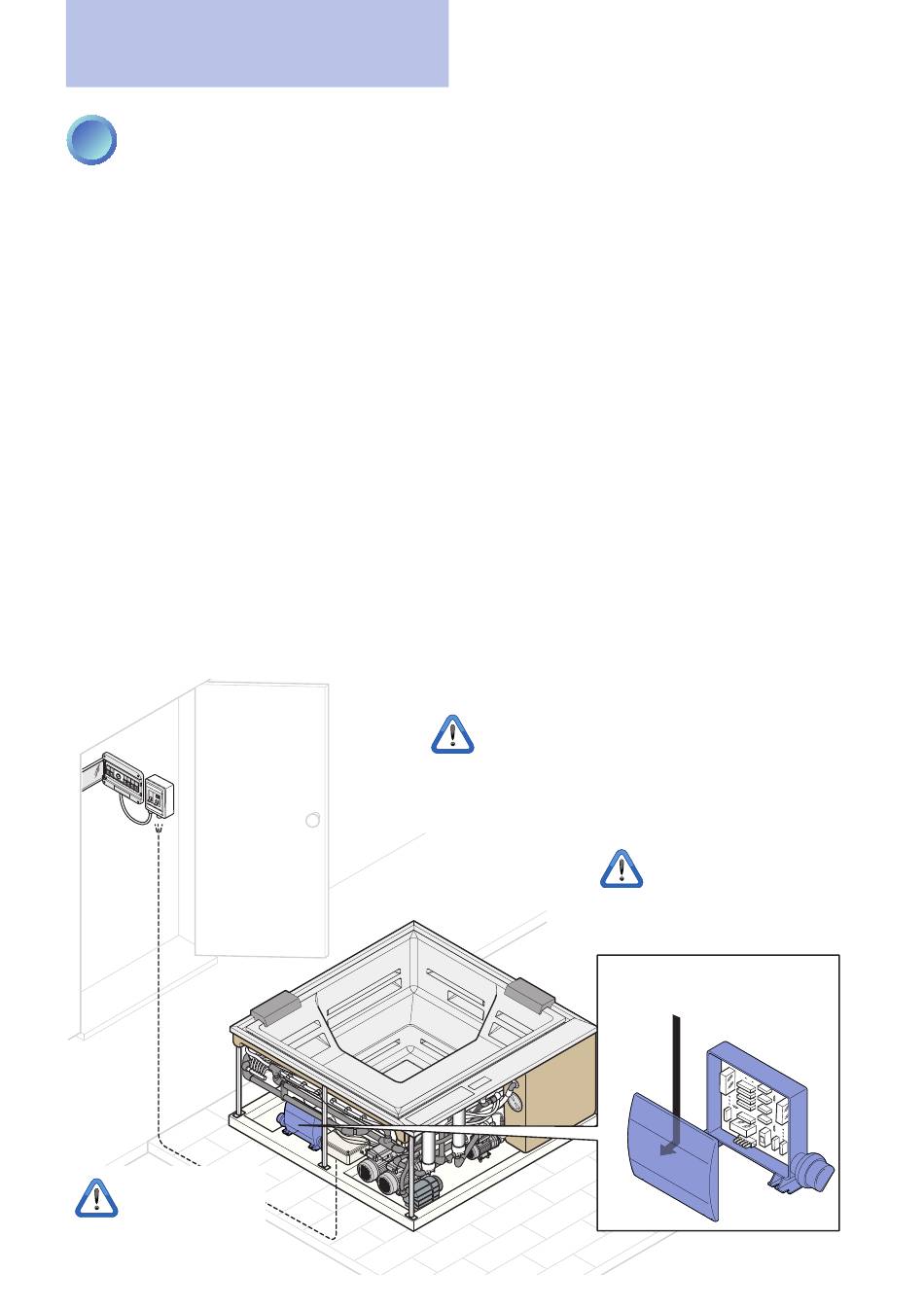

ELECTRICAL DIAGRAM
16
Phantom
spa
.
NB: to correctly connect the
power cable, use a cable
gland (not supplied), suita-
ble for the diameter of the
