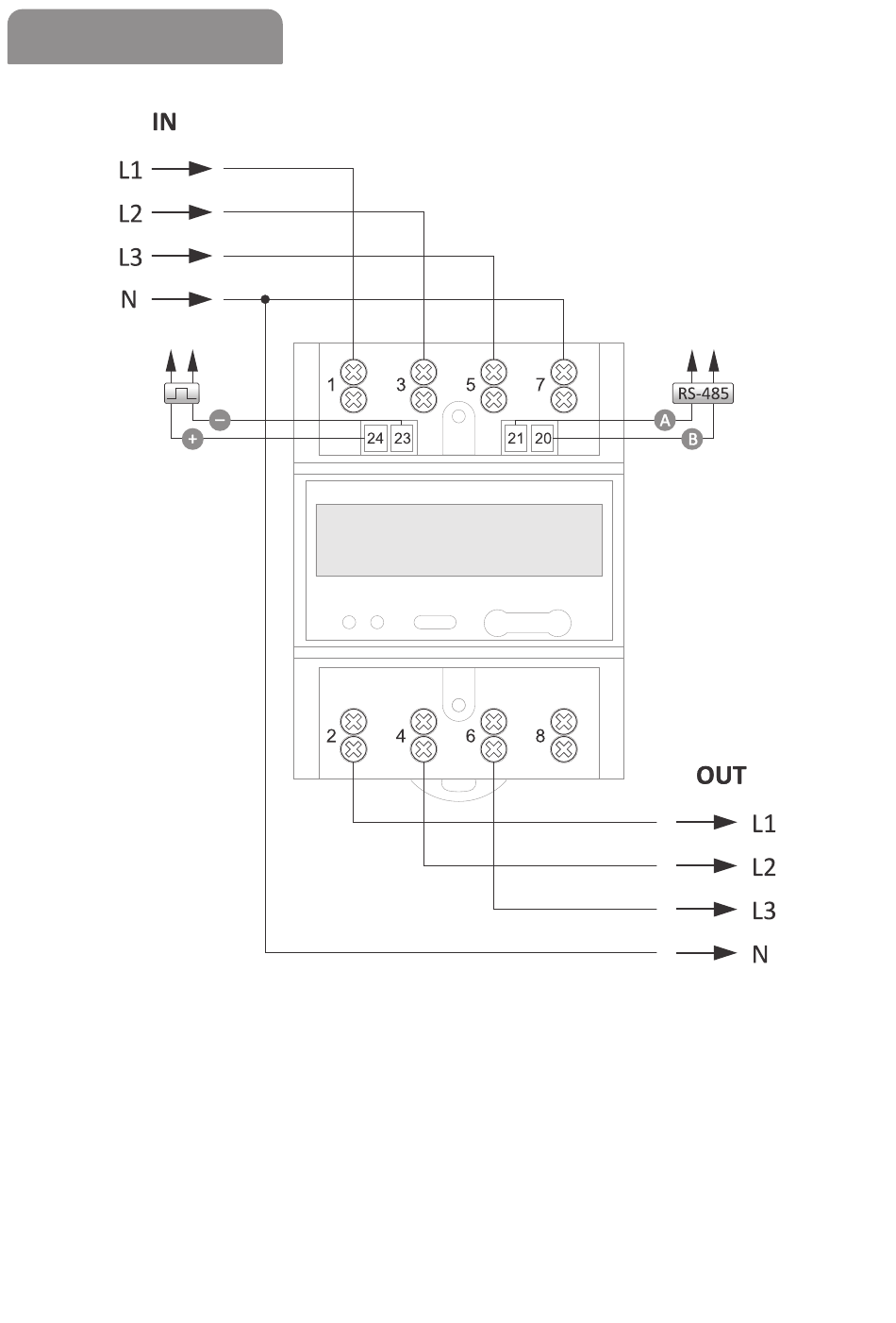

Wiring diagram

1 L1 phase
IN
2 L1 phase
OUT
3 L2 phase
IN
4 L2 phase
OUT
5 L3 phase
IN
6 L3 phase
OUT
7 neutral N-wire
20 output RS-485 (B)
21 output RS-485 (A)
23 pulse output (–)
24 pulse output (+)
