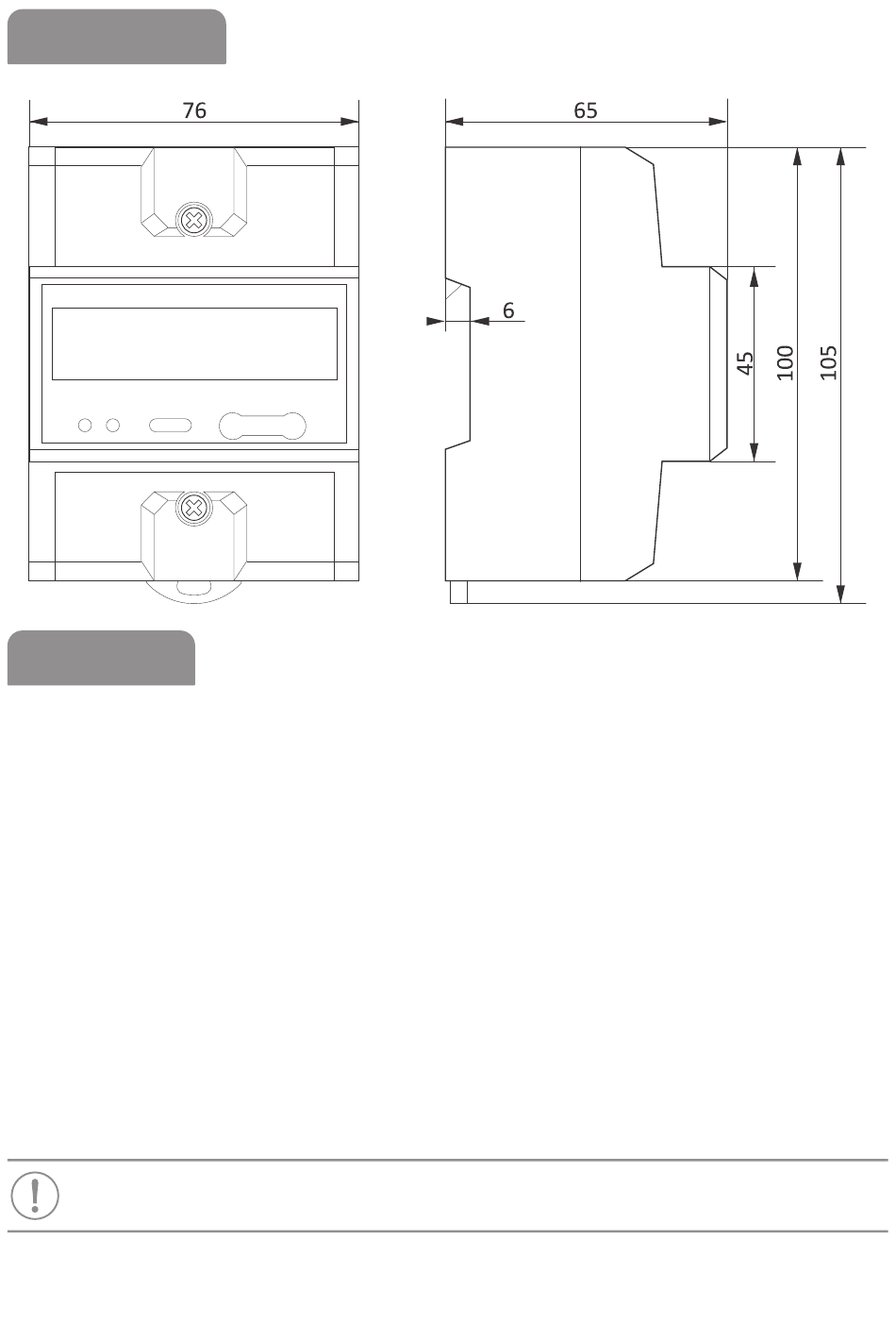

Dimensions
Mounting
1. Disconnect the power supply.
2. The indicator mounted on a rail in the distribution box.
3. Connect the power in accordance with the markings to the
terminals 1 (L1), 3 (L2), 5 (L3).
4. Connect the measured circuit or a single receiver to the termi-
nals in accordance with the markings to the terminals 2 (L1),
4 (L2), 6 (L3).
5. N-wire connect to terminal 7.
6. Connect the RS-485 network cables to terminals 20(B)-21(A).
7. Additional pulse receiver connected to terminals 23(–) and
24(+). The terminals are located under the top terminal cover.
Additional pulse receiver is not required.
8. Put the meter terminals covers.
- 6 -
