Purpose

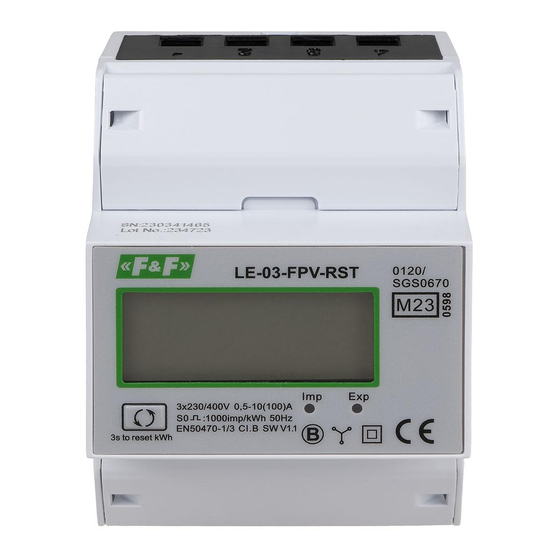

The LE-03-FPV-RST meter is an electronic, legalised (MID declara-
tion), 3-phase, 4-wire electricity meter for direct metering.
The meter is capable of measuring both active energy consumed
and energy given up, making it ideal for monitoring energy pro-
duction and consumption in photovoltaic installations.
The LE-03-FPV-RST is also equipped with an additional erasable
energy meter, facilitating direct observation of the increase in
energy since the previous meter reset, and an illuminated re-
ading field.
F&F Filipowski L.P.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
2014/32/EU
0120/SGS0670
- 1 -
Advertisement
Table of Contents
Related Manuals for F&F LE-03-FPV-RST
Summary of Contents for F&F LE-03-FPV-RST
- Page 1 Certificate 0120/SGS0670 Purpose The LE-03-FPV-RST meter is an electronic, legalised (MID declara- tion), 3-phase, 4-wire electricity meter for direct metering. The meter is capable of measuring both active energy consumed and energy given up, making it ideal for monitoring energy pro- duction and consumption in photovoltaic installations.
-
Page 2: Front Description
Functioning Under the influence of the flowing current and applied voltage, the meter precisely measures energy and active power. The cu- rrent data is displayed on a 7-character LCD. Energy increments (separately for imported and exported energy) are additionally indicated by blinking LEDs on the front of the unit. The meter is also equipped with a pulse output to indicate a change in total energy (total energy = imported energy + exported energy). -
Page 3: Measured Values
Measured values Total active energy [kWh] Imported active energy [kWh] Exported active energy [kWh] Active power The LE-03-FPV-RST meter can display values: Function Format Unit View Total active energy (sum of energy exported and imported energy) Imported active energy Eksported... - Page 4 Measured values cont. Function Format Unit View Imported active energy – erasable auxiliary meter Exported active energy – erasable auxiliary meter Total active power Active power - signalling import of power Active power - signalling export of power Switching between views is carried out by briefly pres- sing the RESET button on the front of the meter.
- Page 5 Auxiliary meter reset The LE-03-FPV-RST meter is equipped with auxiliary energy me- ters that count the energy flow in parallel with the main meter. The indications of the auxiliary meters can be cleared at any time. Only the auxiliary meters (items 4-6 in the table above) are reset.
-
Page 6: Pulse Output
Pulse output The indicator has a SO+ SO- pulse output. This allows you to con- nect another pulse device (SO) that reads impulses generated by the meter. The number of pulses depends on the total energy increment, with 1.000 pulses for each kWh of energy. No ad- ditional device is required for the correct operation of the meter. - Page 7 Mounting 1. Disconnect power supply. 2. Mount meter on a rail in distribution box. 3. Open terminal covers. 4. Connect the power supply to the terminals 1 (L1 IN), 2 (L2 IN), 3 (L3 IN), 4 (N IN). 5. Connect the circuit to be measured or a single consumer to the terminals 5 (L1 OUT), 6 (L2 OUT), 7 (L3 OUT), 8 (N OUT).
-
Page 8: Wiring Diagram
Wiring diagram - 8 -... - Page 9 Technical data installation 3-phase, 4-wire reference voltage 3×230/400 V AC minimum current 0.5 A base current 3×10 A maximum current 3×100 A minimum detection current 0.04 A voltage measurement range 180÷276 V measurement accuracy (EN50470-1/3) B class rated frequency 50 Hz insulation protection class housing PC material (UL94V-0)
-
Page 10: Warranty
Technical data cont. dimensions 4.5 modules (75 mm) mounting on TH-35 rail ingress protection (indoors) IP51 Warranty F&F products are covered by a 24-month warranty from the date of purchase. The warranty is only valid with proof of purchase. Contact your dealer or contact us directly. CE &... - Page 11 General work safety conditions » Please read the instructions carefully before installation. » The device should be installed and operated by qualified per- sonnel who are familiar with its design, operation, and asso- ciated risks. » Do not install a meter that is damaged or incomplete. »...
