Wiring Diagram - F&F LE-03d CT200 Quick Start Manual

Electric energy meter, 3-phase

Table of Contents

Advertisement

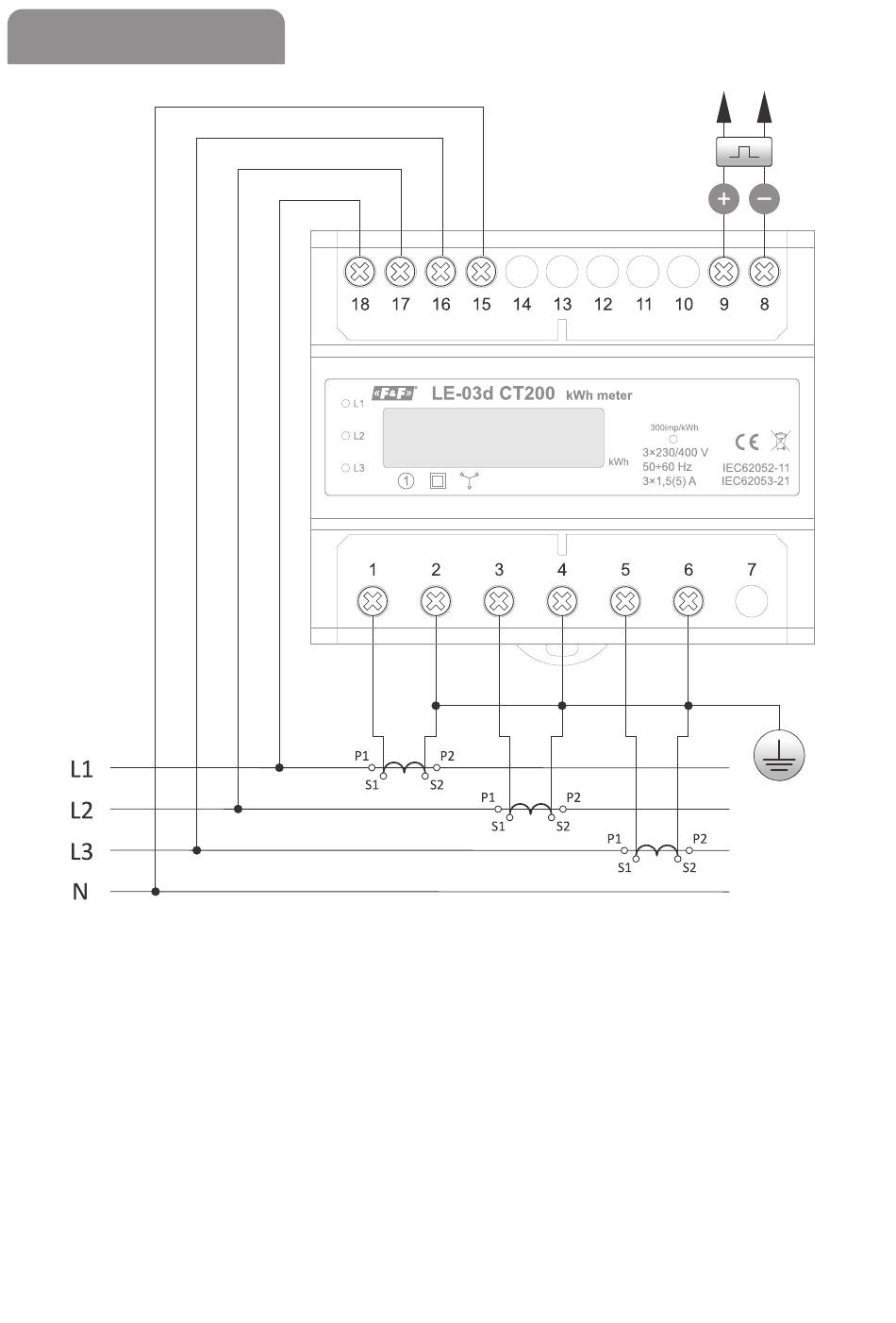

Wiring diagram

Current measurement circuits:

1-2

3-4

5-6

Pulse output (open collector):

L1 phase

L2 phase

L3 phase

8

transistor emitter (–)

9

transistor collector (+)

- 5 -

cont. on next page
