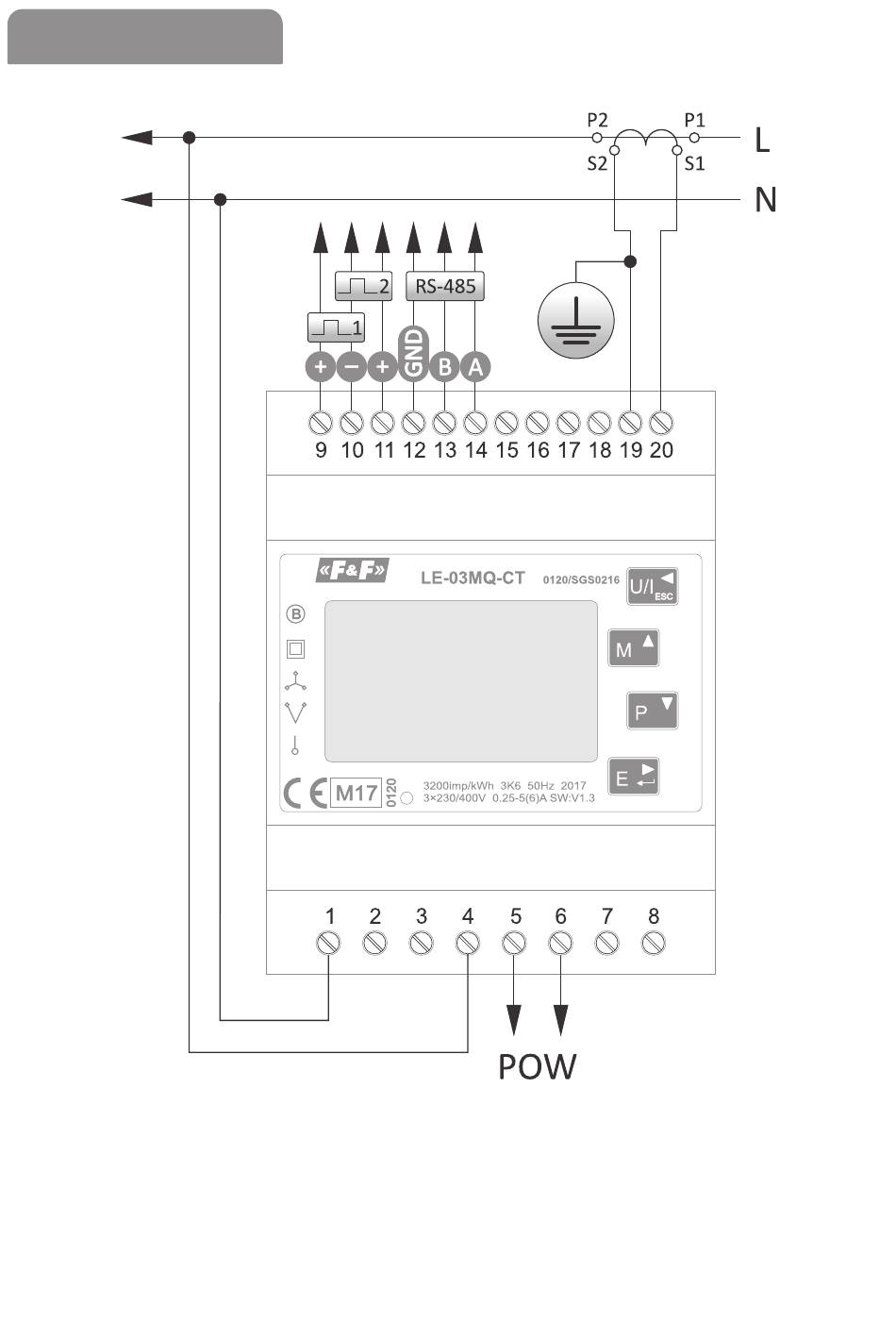

Wiring diagram
1-phase 2-wire system
1÷4
voltage inputs
5, 6
meter supply (POW)
9, 10, 11
pulse outputs 1 and 2
12, 13, 14
RS-485 (GND, B, A)
15÷20
current inputs
- 6 -
