Connections
Connecting to a Macintosh
Connecting your Macintosh computer to your LCD
monitor will enable you to display your computer's screen
image. Some video cards or drivers may not display images
correctly.
To connect to the VGA connector (mini D-sub 15 pin) on
the LCD monitor, use the RGB signal cable (mini D-sub 15
pin to mini D-sub 15 pin) included with the display.
NOTE: For older Macintosh computers, use Macintosh cable
adapter to connect to your Macintosh's video port. To obtain
the Macintosh cable adapter call NEC Display Solutions of
America, Inc. at (800) 632-4662
LCD Monitor
- continued
®
Computer
AC IN

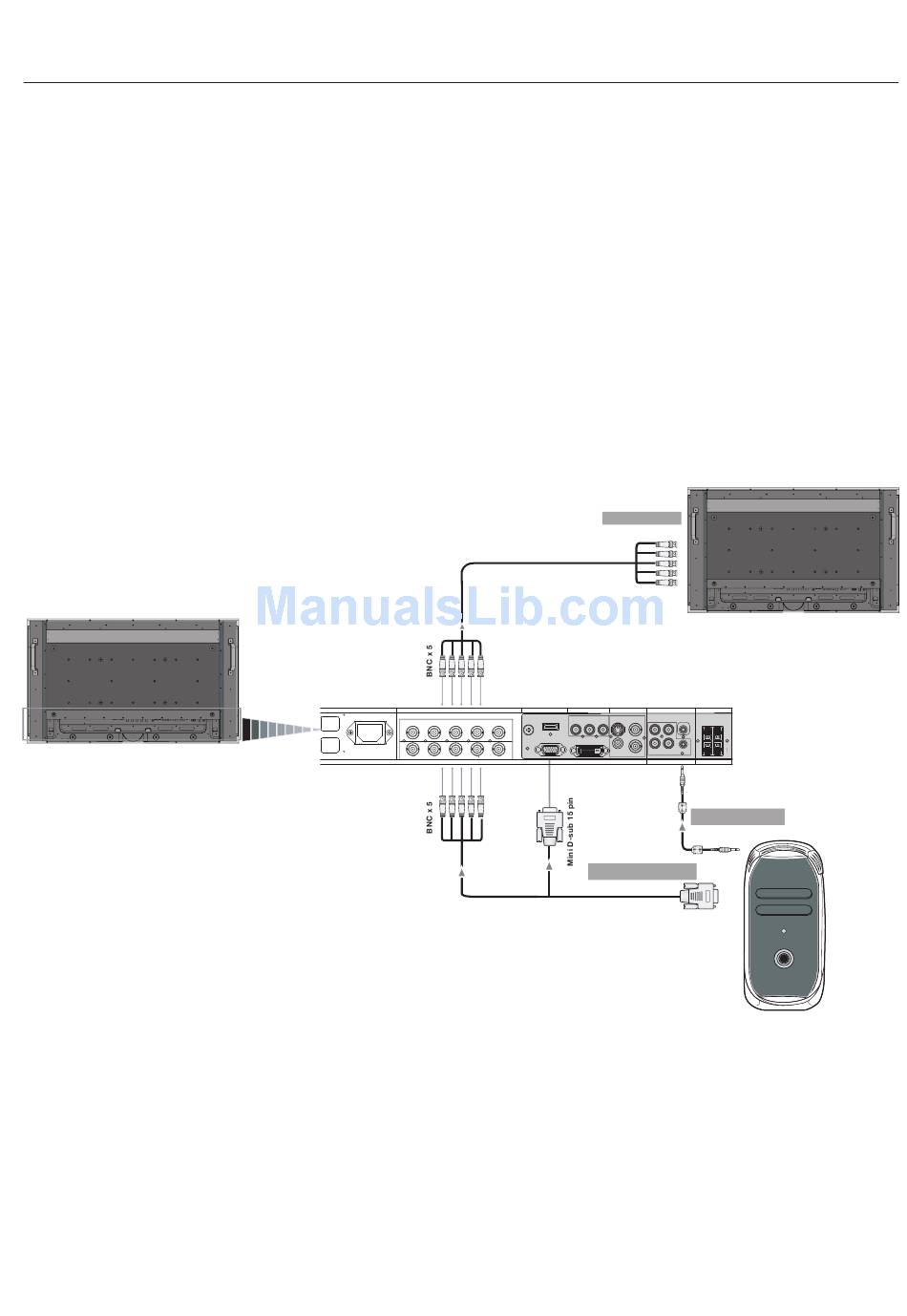

To connect to the RGB/ HVconnector (BNC) on the LCD
monitor, use a mini D-sub 15 pin to BNC x 5 signal cable
(not included)(BNC Input only).
If you will be connecting the LCD monitor to a Macintosh
PowerBook, set "Mirroring" to off.
Refer to your Macintosh's owner's manual for more
information about your computer's video output
requirements and any special identification or configuring
that may be required.
The AUDIO IN1, 2, 3 can be used to choose the audio
source. To select, use the AUDIO INPUT button.
(BNC Input only)
RGB/HV OUT DVD/HD IN
HDMI Y
R G B H V
VGA(D-SUB)
DVI(DVI-D)
R G B H V
RGB/HV IN PC IN
English-18
To RGB/HV Input
BNC x 5
VIDEO AUDIO SPEAKER
OUT
Cb/Pb Cr/Pr S-VIDEO IN AUDIO OUT
R L
R R
-
L L
-
AUDIO3 IN AUDIO2 IN AUDIO1 IN
IN
IN
From Audio Output
From Analog RGB Output
Mini D-sub 15 pin
LCD Monitor
(second monitor)
Macintosh
