Before connecting external equipment to LCD:
First turn off the power to all of the equipment associated
with the LCD as well as that of the equipment to be
connected.
For questions regarding external equipment please refer to
the user's manual supplied with that equipment.

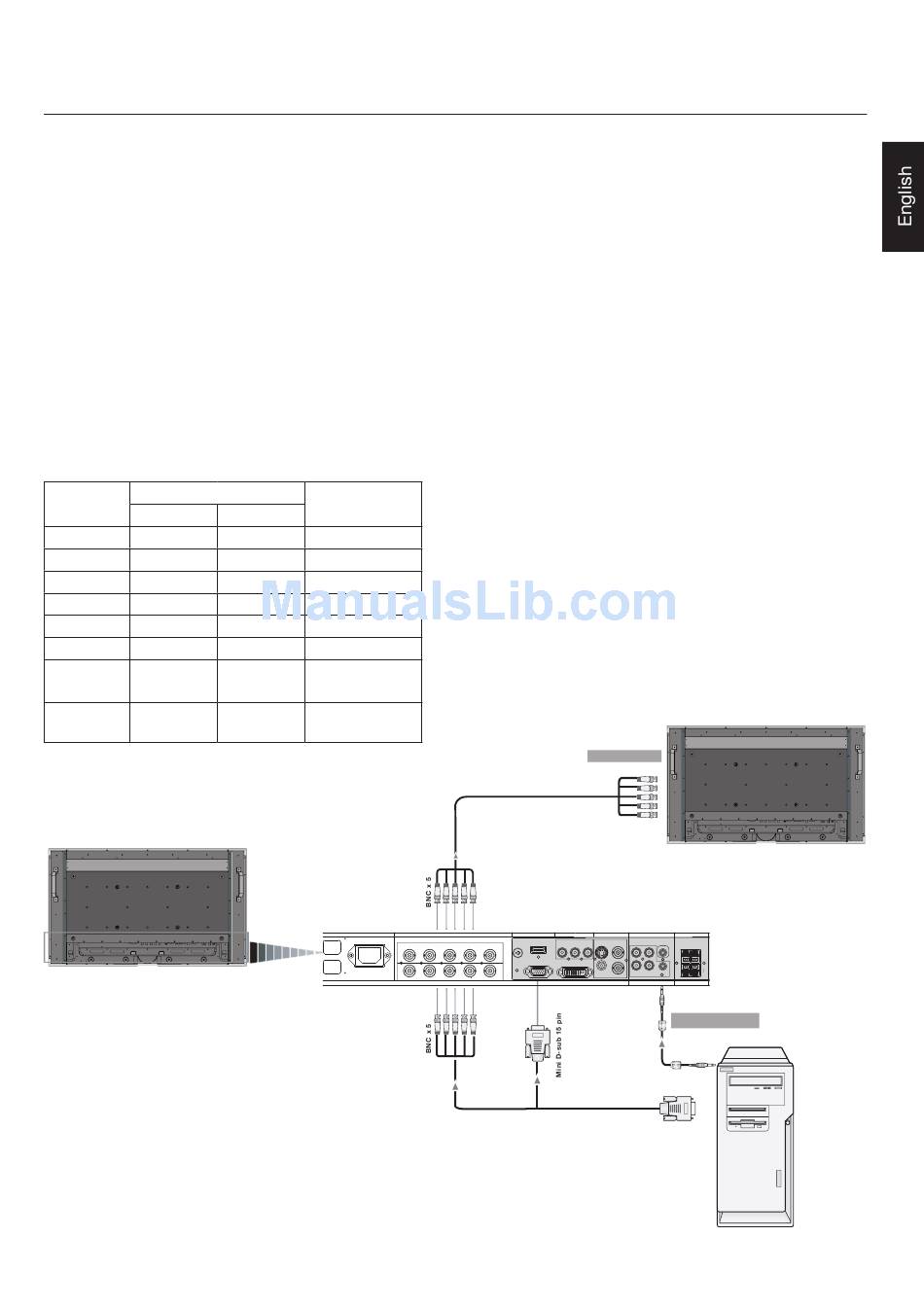

Connecting the LCD Monitor to a PC

Connecting your computer to your LCD monitor will enable
you to display your computer's screen image.
Some video cards having a pixel clock over 162MHz may not
display images correctly.
The LCD monitor will automatically adjust to a preset
timing to display the proper image.
<Factory Preset Signal Timing>
Scanning frequency
resolution Horizontal
640x480 31.5kHz
800x600 37.9kHz
1024x768 48.4kHz
1280x768 48.0kHz
1360x768 48.0kHz
1280x1024 64.0kHz
1600x1200 75.0kHz
1920x1080 66.6kHz
LCD Monitor
Vertical remarks
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
Compressed
60Hz
recommended
60Hz
resolution
AC IN
R
R
To connect to the VGA connector (mini D-sub 15 pin) on
the LCD monitor, use the provided RGB signal cable (mini
D-sub 15 pin to mini D-sub 15 pin).
To connect to the RGB/HV connector (BNC) on the LCD
monitor, use a mini D-sub 15 pin to BNC x 5 signal cable
(not included). Select RGB/HV from the INPUT button.
When connecting to a second LCD monitor, use the RGB/
HV OUT connector (BNC)(BNC Input only).
The AUDIO IN1, 2, 3 can be used to choose the audio
source. To select, use the AUDIO INPUT button.
To RGB/HV Input
(BNC Input only)
DVD/HD IN
RGB/HV OUT
HDMI
Y
Cb/Pb Cr/Pr S-VIDEO IN
G B H V
VGA(D-SUB)
DVI(DVI-D)
G B H V
RGB/HV IN PC IN
From Analog RGB Output
English-17

Connections

BNC x 5
LCD Monitor
(second monitor)
VIDEO AUDIO SPEAKER
OUT AUDIO OUT
R L
R R
-
L L
-
IN AUDIO3 IN AUDIO2 IN AUDIO1 IN
IN
From Audio Output
PC or IBM
compatible
