Connecting to a Computer with Digital Output
Connections can be made with devices equipped with a
digital interface that complies with the DVI (Digital Visual
Interface) standard.
• DVI connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable recommended
by DVI standards.
The AUDIO IN1, 2, 3 can be used to choose the audio
source. To select, use the AUDIO INPUT button.
LCD Monitor
AC IN RGB/HV OUT
R G B H V
R G B H V
RGB/HV IN
English-19
Connections
DVD/HD IN VIDEO AUDIO SPEAKER
HDMI Y OUT AUDIO OUT
Cb/Pb Cr/Pr S-VIDEO IN
R L
R R
VGA(D-SUB) L L
DVI(DVI-D)
IN AUDIO3 IN AUDIO2 IN AUDIO1 IN
IN
PC IN
- continued

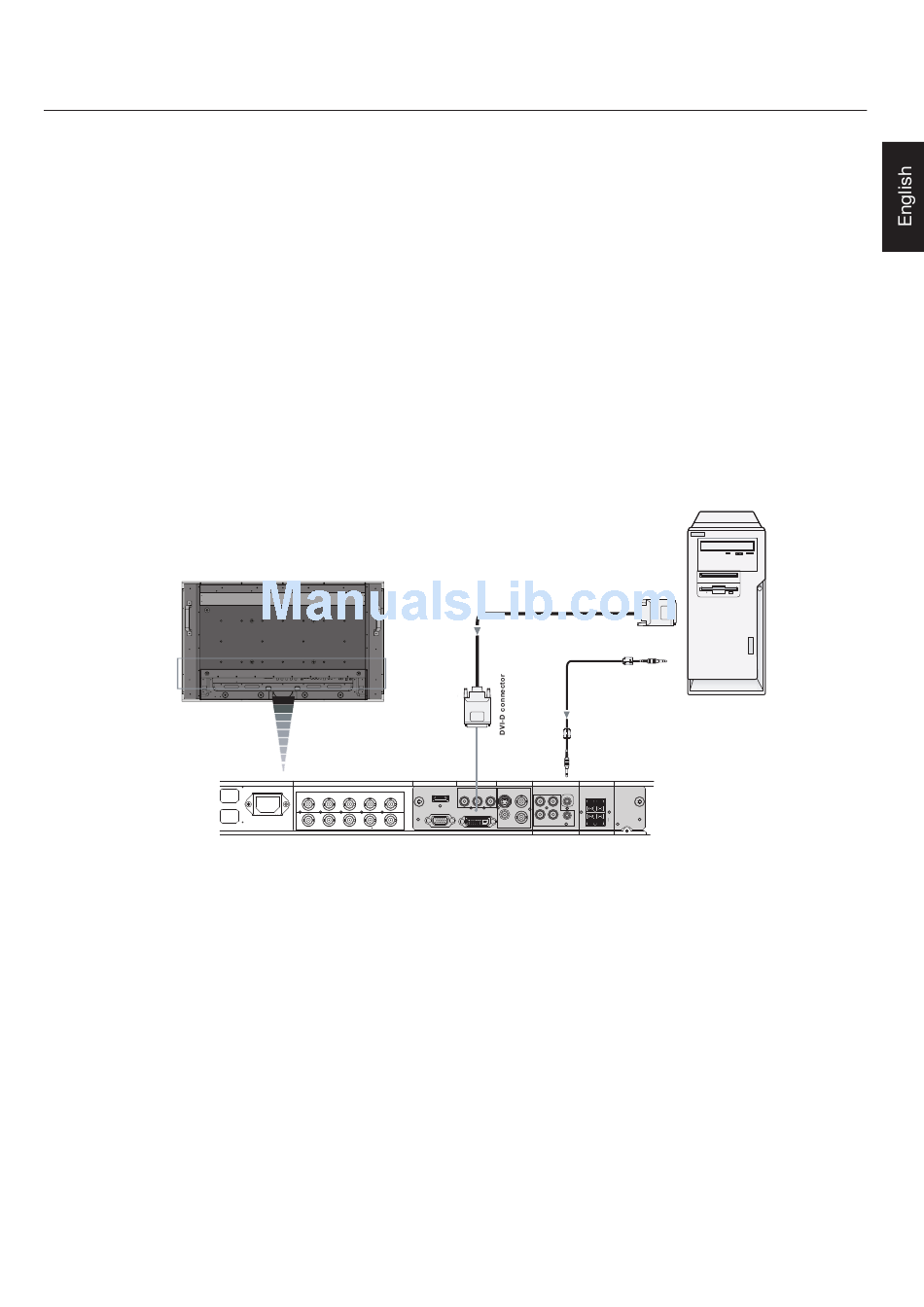

Equipment with a digital interface such as
a PC with RGB output (TMDS)
From DVI output
-
-
