Remote Control Id Function - NEC MultiSync SC40 User Manual

Part Names and Functions
REMOTE CONTROL ID

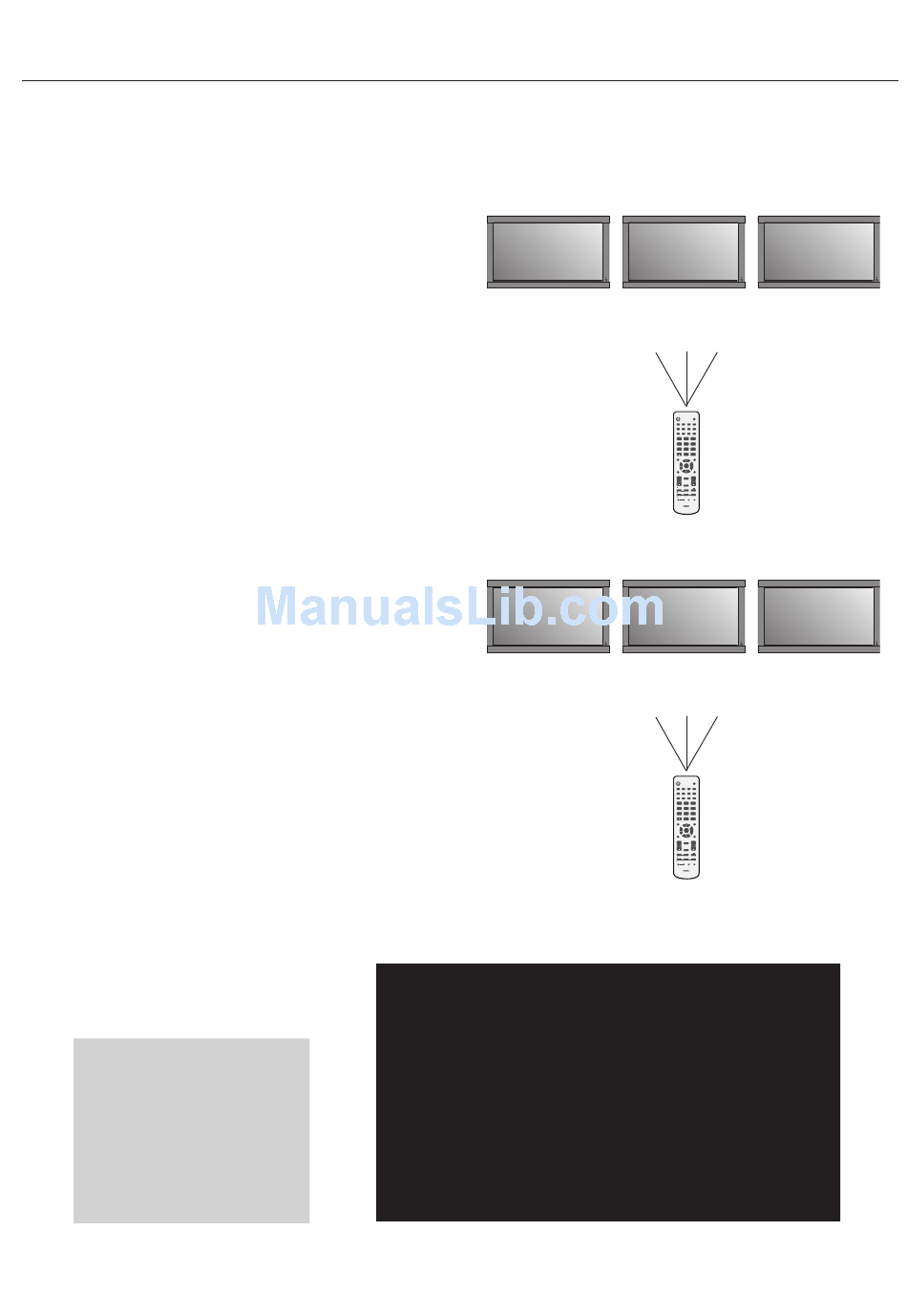

The remote control included with the display can be used
to control up to 26 individual MultiSync SC monitors using
what is called the REMOTE CONTROL ID mode. The RE-
MOTE CONTROL ID mode works in conjunction with the
Monitor ID, allowing control of up to 26 individual Multi-
Sync SC monitors. For example: if there are many monitors
being used in the same area, a remote control in normal
mode would send signals to every monitor at the same
time Figure 1. Using the remote in REMOTE CONTROL
ID mode will only operate one specific monitor within the
group Figure 2.
TO SET REMOTE CONTROL ID:
While holding down the REMOTE ID SET button on the
remote control, use the KEYPAD to input the Monitor ID
(1-26) of the display to be controlled via remote. The remote
can then be used to operate the monitor having that specific
Monitor ID number.
When 0 is selected or when the remote control is in normal
mode, all monitors will be operated.
TO USE REMOTE CONTROL ID MODE
ID Mode - To enter ID Mode press the REMOTE ID SET
button and hold down for 2 seconds.
Normal Mode - To return to Normal Mode press the
REMOTE ID RESET button and hold down for 2 seconds.
In order for this feature to work properly, the display must be
assigned a Monitor ID number. The Monitor ID number can
be assigned under the MULTI DISPLAY menu in the OSD
See page 29.
ID number assigned to display
Press the "DISPLAY" button
on the remote to bring up
the Information OSD. The
Information OSD shows the
monitor ID number and other
information such as signal
type, zoom method, etc.
- continued
Monitor ID:1
Remote works
Remote in Normal
mode or the REMOTE
Monitor ID:1
Remote does
not work
Remote set up to
use Remote ID:3
INFORMATION OSD
Monitor ID:1
Target ID:5
English-14

Remote Control ID Function

Monitor ID:2
Remote works
POWER GUIDE
DVI VGA RGB/HV OPTION
HDMI DVD/HD VIDEO TV
PICTURE AUDIO
MODE SIZE SOUND INPUT
Figure 1
1 2 3
4 5 6
7 8 9
0 ENT
DISPLAY MENU
+
SET
AUTO
SET UP EXIT
VOL CH
ID is set to 0 CH RTN
+ +
MUTE
STILL
ON/OFF
CAPTURE
PIP
ON/OFF INPUT CHANGE
REMOTE ID
SET RESET MTS SLEEP
REMOTE CONTROLLER RU-M111
Monitor ID:2
Remote does
not work
POWER GUIDE
DVI VGA RGB/HV OPTION
HDMI DVD/HD VIDEO TV
PICTURE AUDIO
MODE SIZE SOUND INPUT
Figure 2
1 2 3
4 5 6
7 8 9
0 ENT
DISPLAY MENU
SET +
AUTO
SET UP EXIT
VOL CH
+ CH RTN +
MUTE
STILL
ON/OFF CAPTURE
PIP
ON/OFF INPUT CHANGE
REMOTE ID
SET RESET MTS SLEEP
REMOTE CONTROLLER RU-M111
Monitor ID:3
Remote works
Monitor ID:3
Remote works
DVI
AUDIO:IN1
SIZE:FULL
1024 X 768
48KHz/60Hz
