Connections

Connecting to a Stereo Amplifier

You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner's manual for more information.

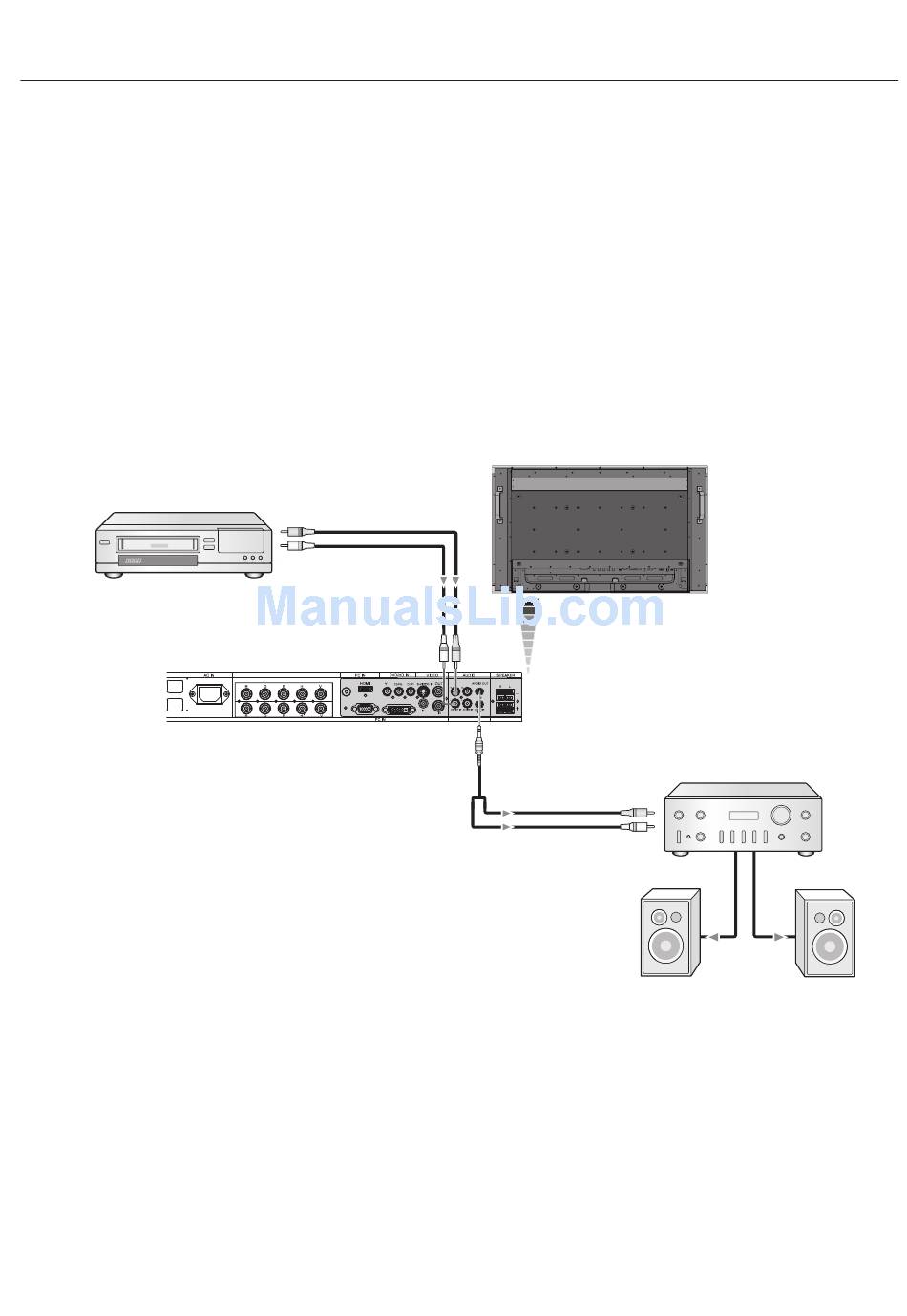

Connect the LCD Monitor to a Stereo Amplifier
• Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use a Stereo Mini-RCA cable to connect the AUDIO OUT connector (Stereo Mini-RCA) on the LCD monitor and the audio
input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.
VCR or Laser disc player
- continued
To Audio Right
To Audio Left
RGB/HV OUT
VGA (D-SUB)
RGB/HV IN
RCA
DVI (DVI-D)
To Audio Right
To Audio Left
English-22
LCD Monitor
Amplifier
External
Speakers
