Summary of Contents for Mount-It! MI-1377

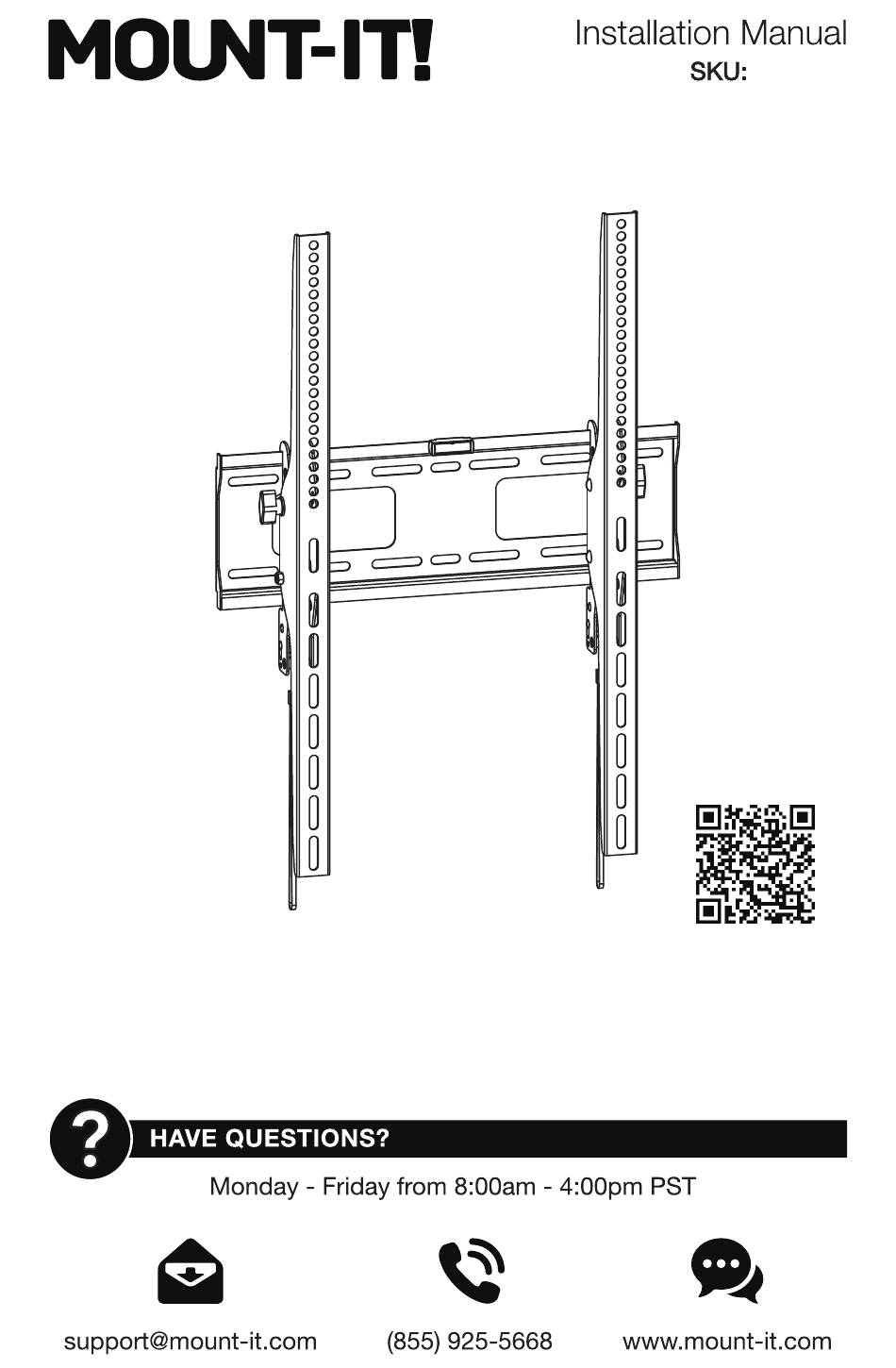

- Page 1 MI-1377 Please scan this QR code to visit the product page. HEAVY-DUTY TILT TV WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! VESA Bracket VESA Bracket Wall Mount Tilt Bubble Adjustment Level Knob Mount-It! TV Mounting Hardware Spacer Spacer Wall Mounting Hardware Lag Screw Concrete Anchor Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1a Step 1b Wood Stud Installation Option Concrete/Brick Installation Option • Use a stud finder to locate the center of the studs and hold Wall Mount(#C) to the wall in the desired • Hold the Wall Mount(#C) to the wall in the desired mounting location. mounting location.
- Page 4 Step 2 Step 4 Hang the TV on the Wall Mount Optional Tilt Adjustment Knobs • The mount tilt can be adjusted with the nut indicated here, on VESA Brackets (#A, #B). For easier • It is recommended that you use the assistance •...
