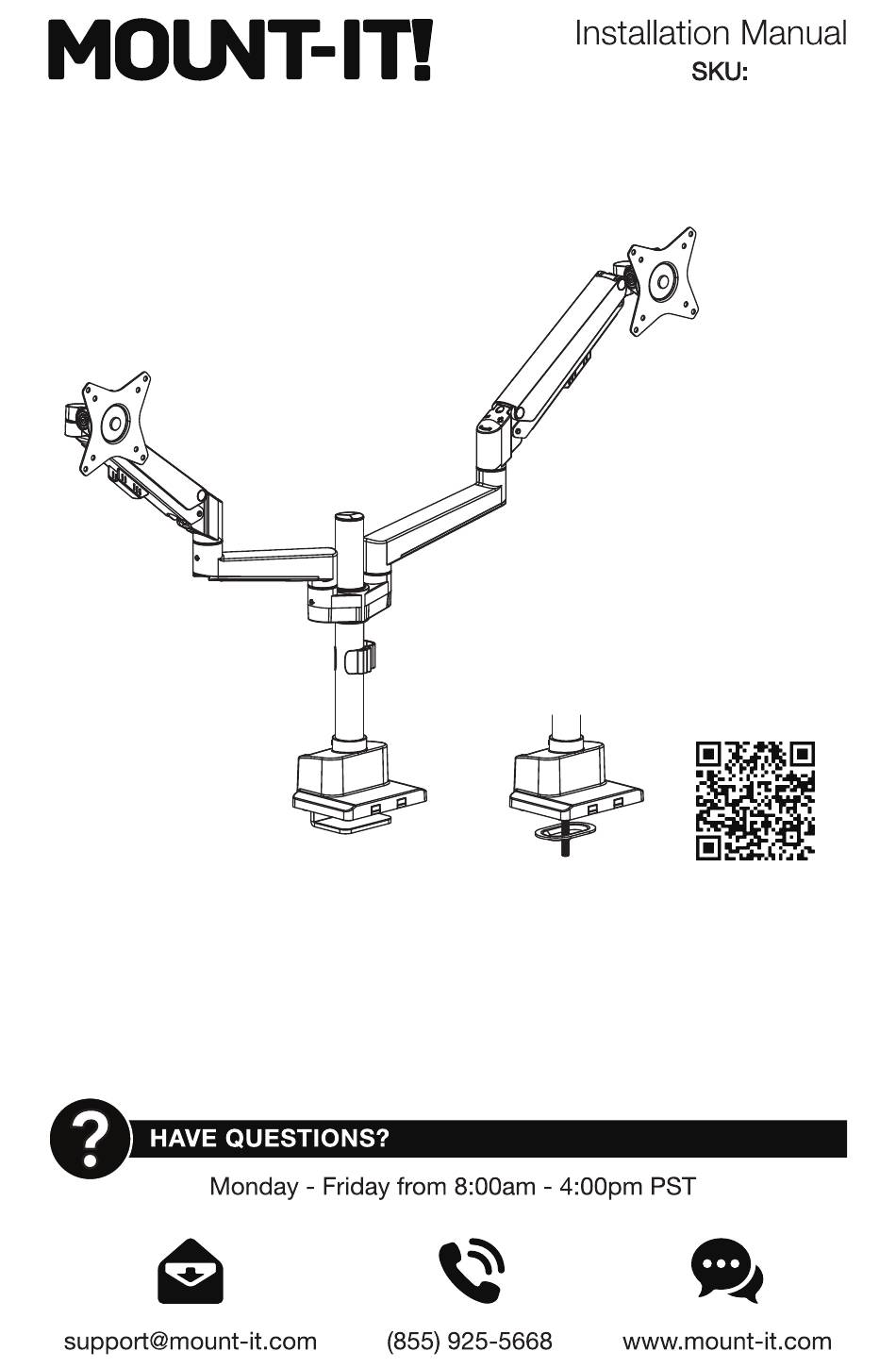

- Page 1 MI-6772 Please scan this QR code to visit the product page. DUAL MONITOR MOUNT WITH GAS SPRING ARMS...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Spring Arm Swivel Arm Mount Base VESA Plate Grommet Cable Plate Management Clip (Rear) Pole Cable Grommet Bolt 4mm Hex Wrench 6mm Hex Wrench Management Clip (Pole) Monitor Mounting Hardware Check carefully to make sure there are no missing or defective parts.
- Page 3 Step 1 Clamp Installation Option • Open the clamp to be wider than the width of the desk then slide the clamp into place in the desired location. Tighten the clamp back down using 6mm Hex Wrench (#K) until it is secure. Slide the Cable •...
- Page 4 Step 2 Step 4 Insert the Vertical Pole Attach the Swivel Arms • Use the screwdriver end of 4mm Hex Wrench (#J) to partially loosen the two bolts on the top of the • Using the screwdriver end of 4mm Hex Wrench (#J) partially loosen the bolt on the outer end of the arm Clamp Base.
- Page 5 Step 6 Step 8 Attaching the VESA Plate Cable Management • Select the appropriate size mounting bolt (Select one size #M-A or M-B) and washer (#M-C) for your • There are covers for the cable management system on each segment of the mount arm. Remove them display’s mounting holes and verify the length of the VESA bolt is not too long.
-
Page 6: Final Adjustments
