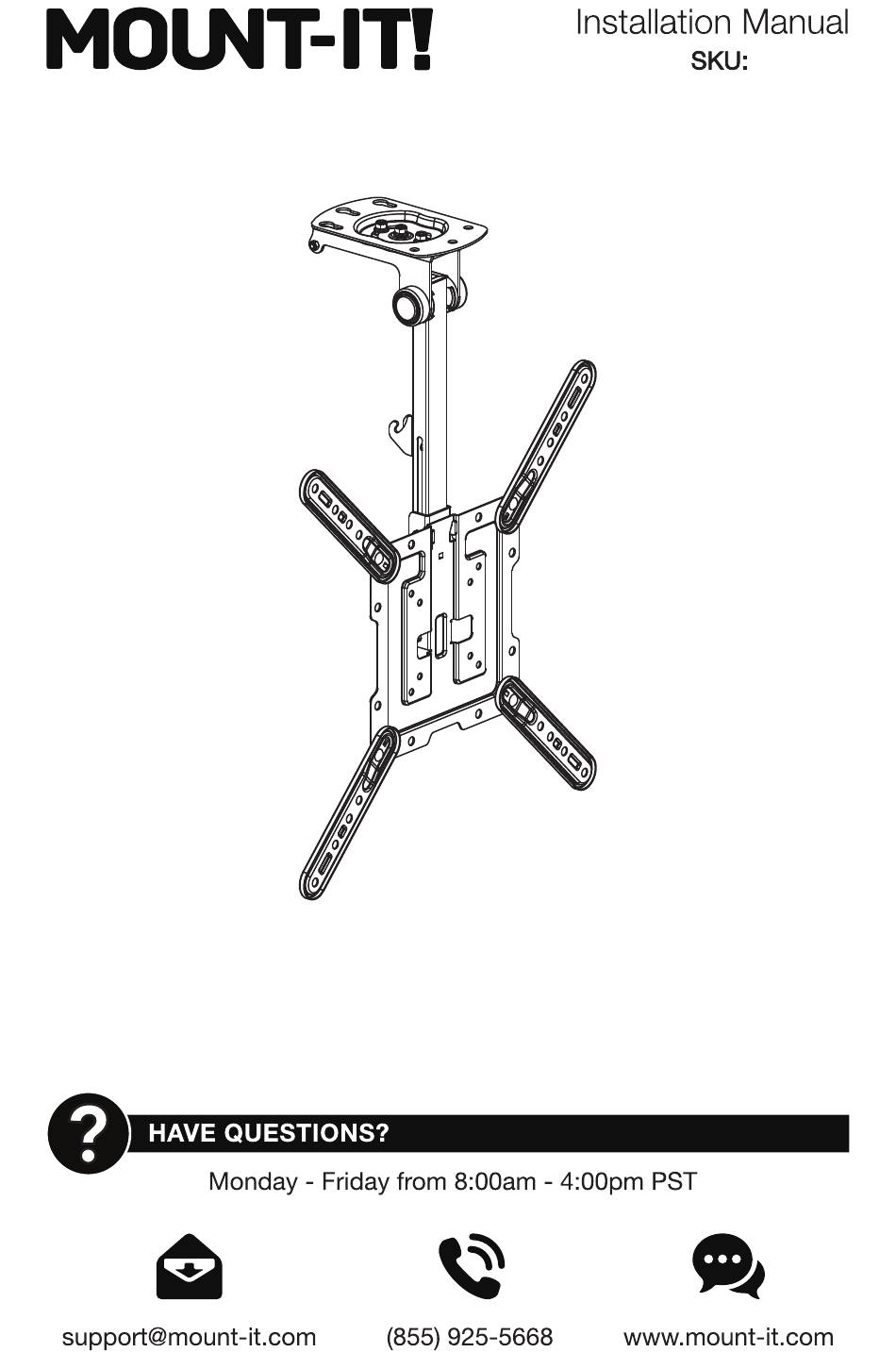

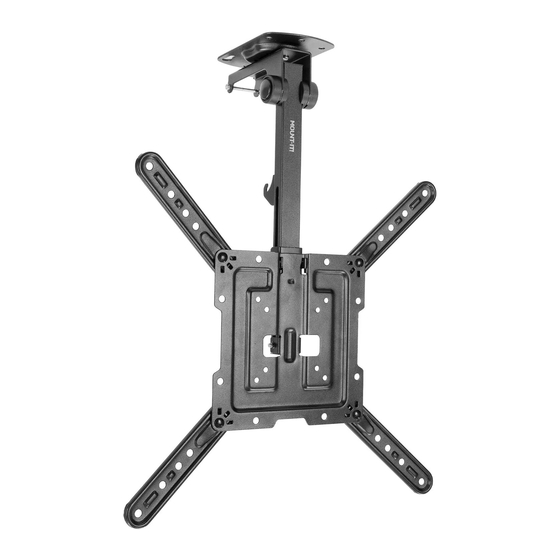

- Page 1 MI-4225 FOLDABLE CEILING TV MOUNT...
-
Page 2: Package Contents
Thank you for choosing Mount-It PACKAGE CONTENTS Mount-It! Mount-It! Ceiling Mount VESA Extension Arms Extension Bolt Extension Nut Wrench Hex Wrench VESA MOUNTING HARDWARE WALL MOUNTING HARDWARE Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge. COMPATIBLE WITH COMPATIBLE VESA SIZES TVs UP TO... -
Page 3: Preparing For Mounting
Step 1 Step 3a Detach the Folding Arm Wood Stud Mounting Option • Detach the folding arm from the VESA Plate by removing the bolt (shown in the magnification bubble) • With a stud finder locate the ceiling joist and hold the Ceiling Mount (#A) on the stud at the desired using Hex Wrench (#F). - Page 4 Step 4a Step 5 Wood Stud Mounting Option (Continued) Attaching the VESA Extension Arms (For VESA sizes greater than 200x200 only) • Hang the Ceiling Mount (#A) on the bolt and slide it into place. • Install the second bolt through the other end of the ceiling bracket using Lag Screw (#W-A) and Washer •...
- Page 5 Step 6 Step 7 Attaching the VESA Plate to your TV Installing the TV to the Ceiling Mount • Lay your TV screen side down on a flat or soft surface. • Hang the TV onto the front of the Mount as shown.If the height of the TV needs to be adjusted loosen •...
-
Page 6: Final Adjustments
Step 9 Final Adjustments • To adjust the tilt angle of the screen, remove the decorative cap shown here that is covering the arm joint. Loosen the bolt using Hex Wrench (#F) and tilt the screen to the desired angle. Tighten the bolt back in place and reinstall the decorative cap.
