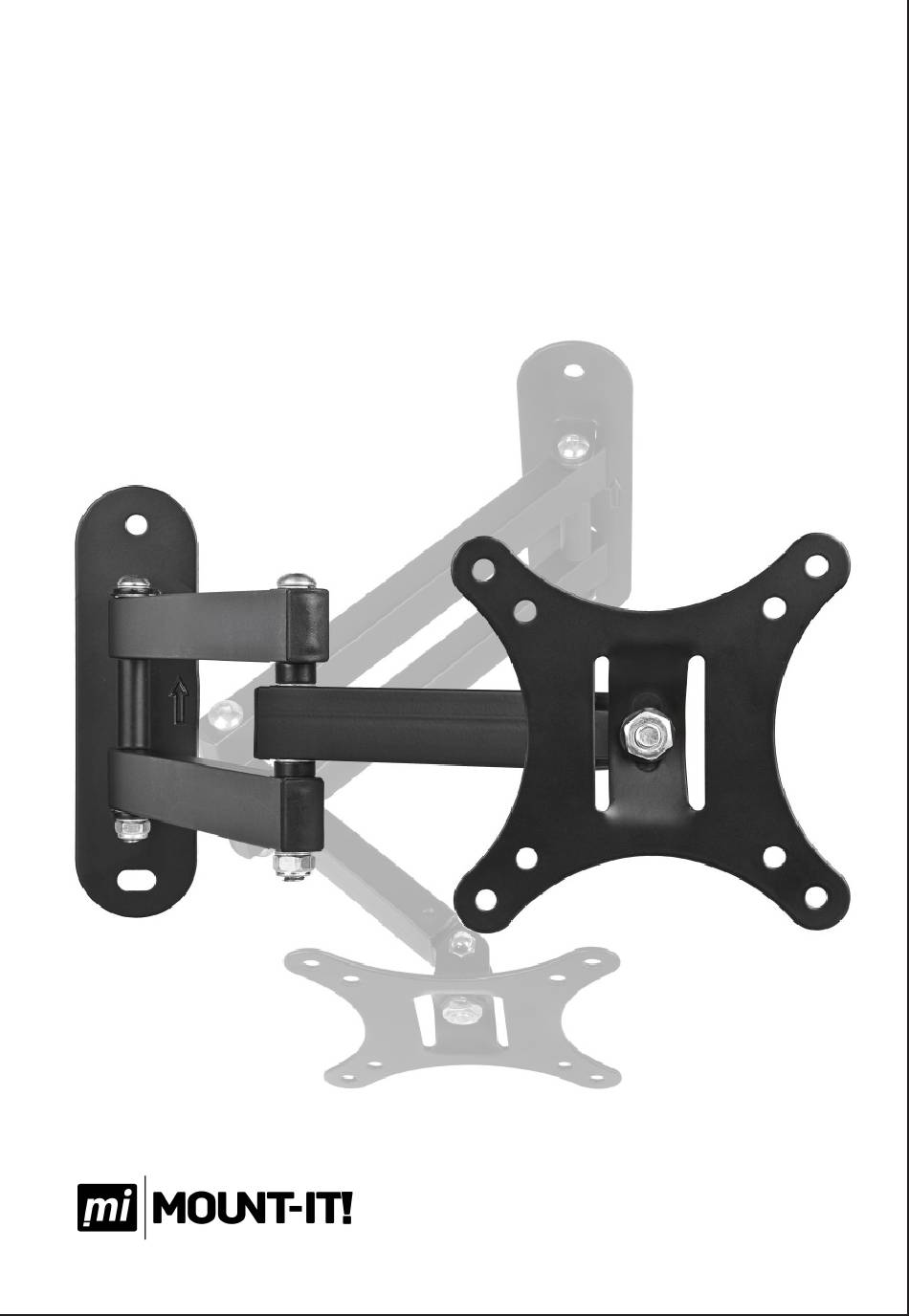

- Page 1 LCD/LED/Plasma Wall Mount Manual MI-2041...
-
Page 2: Product Overview

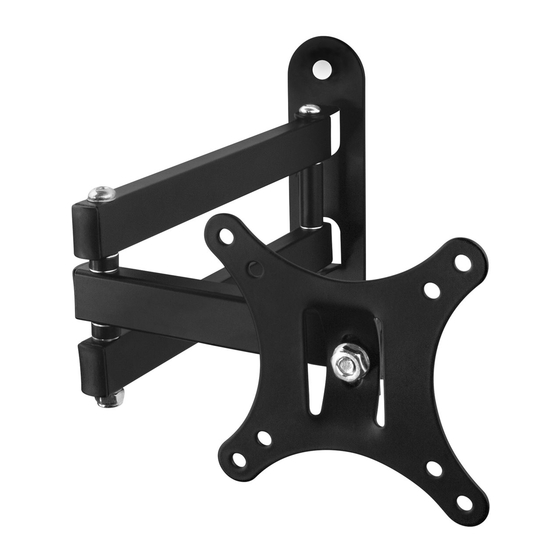

Product Overview: The mount is an ar cula ng lt and swivel arm mount that collapses to a slim 2" yet extends a full 15" while offering 180° swivel and ±15° lt. It also allows for 360° rota on adjustment to ensure a level display. The mount supports VESA hole pa erns 75x75mm to 100x100mm. - Page 3 Part List: Part# Descrip on Quan ty Mount Tilt Wrench 5mm Allen Wrench Log Bolts Concrete Wall Anchors M4 8mm Metric Screw M5 8mm Metric Screw M4 12mm Metric Screw M5 12mm Metric Screw Washer...
- Page 4 Specifica ons: Supported VESA Hole Pa erns: 75x75mm (~3x3") 100x100mm (~4x4") Unit Weight: Net: 2 LBS Gross: 2.4 LBS Shipping Dimensions: 10"x7"x1.6" Unit Materials: Arms, Wall Plate and TV Plate: 100% High Grade Steel Tilt Range: ±15° Swivel Range: Up to 180° Rota on Adjustment: 360°...
- Page 5 Installa on Instruc ons: Note: Please read all installa on instruc ons carefully before installa on. For standard wood stud installa on please see Sec on A: Wood Stud Installa on. For concrete and masonry installa on, please see Sec on B: Concrete and Masonry Installa on. Sec on A: Wood Stud Installa on 1.
- Page 6 3. A aching the mount to your wall: Once the two holes are pre-drilled, affix the wall plate to the wall with the two lag bolts as shown. The included plas c a n c h o r s D O N O T n e e d t o b e u s e d f o r w o o d s t u d i n sta l l a o n .
- Page 7 Display Hardware: If your display does not come with any screws, or the screws in your desk stand will not work, your hardware bag includes screws of the three most common sizes for 12-24" displays - M4 and M5. These are metric screws in 4 and 5mm diameters. Most likely one of these screw sets will fit your TV. If not, you need to get moun ng screws from your local hardware store.
- Page 8 Rota on Adjustment: To adjust the rota on, loosen the same bolt that controls the lt. Once loosened, the TV plate will rotate clockwise or counterclockwise. Ease of Mo on: If your mount is difficult to collapse and extend from the wall, you can use the provided Allen wrench to loosen the bolts in the joints of the arm.
- Page 9 Template...
