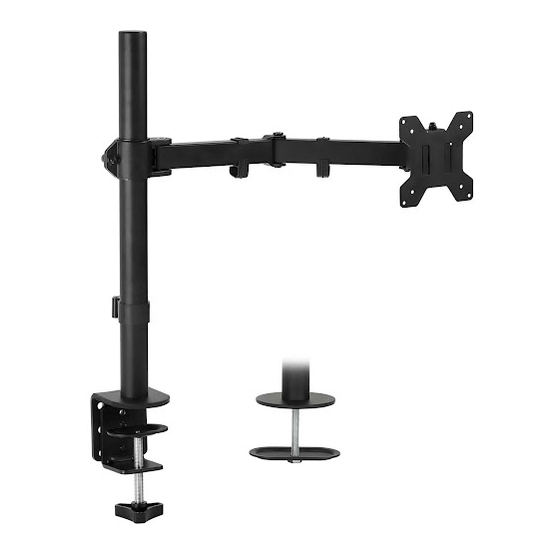

Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mount-It! MI-2751
Summary of Contents for Mount-It! MI-2751
- Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Page 2 Supplied Par ts List (1) Pole-a (1) “C” Clamp-b (1) “C” Clamp Brace-c (1) Swivel Arm-d (1) VESA Plate-e (3) M5x14 Bolt-f (2) M8x12 Bolt-g (1) Nut-h (1)M10 Bolt-i (1)Support Plate-j (1)M10 Washer-k (1)Spring Washer-l (1) Grommet Base (1)Wire Clip-n1 (2)Wire Clip-n2 (1)Allen Key-o Plate-m...
- Page 3 Install the Pole to the Desktop Step 1 Option A: Desk Clamp Install 1. Install the “C”-Clamp Brace(c) to the Pole (a) using 3pcs M5x14 Bolts(f), and tighten using the Allen Key(o), see Figure 1. 2. Install the “C”-Clamp(b) to the pole assembly according to the thickness of the desktop.
- Page 4 Install the Pole to the Desktop Step 1 Option B: Grommet Base Install Self Drilled Grommet Hole Installation 1. Position the Pole(a) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
- Page 5 Step 3 Attach the VESA Plate to the Monitor For Monitor with Flat Back For Monitor with Curved or Recessed Back Step 4 Slide the Monitor onto the Head of Swivel Arm Slide the monitor onto the head of Install the security Nut(h). Make Swivel Arm(d) as shown in the sure the security nut is installed above diagram.
- Page 6 Make the Necessary Adjustments Step 5 Fix the tilt angle Tighten the bolt with the supplied Allen Use the supplied Allen Key(o) to make Key(o) to fix the tilt angle. the necessary adjustments. Manage the Wires and Store the Allen Keys on Wire Clip Step 6 Thank you for choosing our products!
