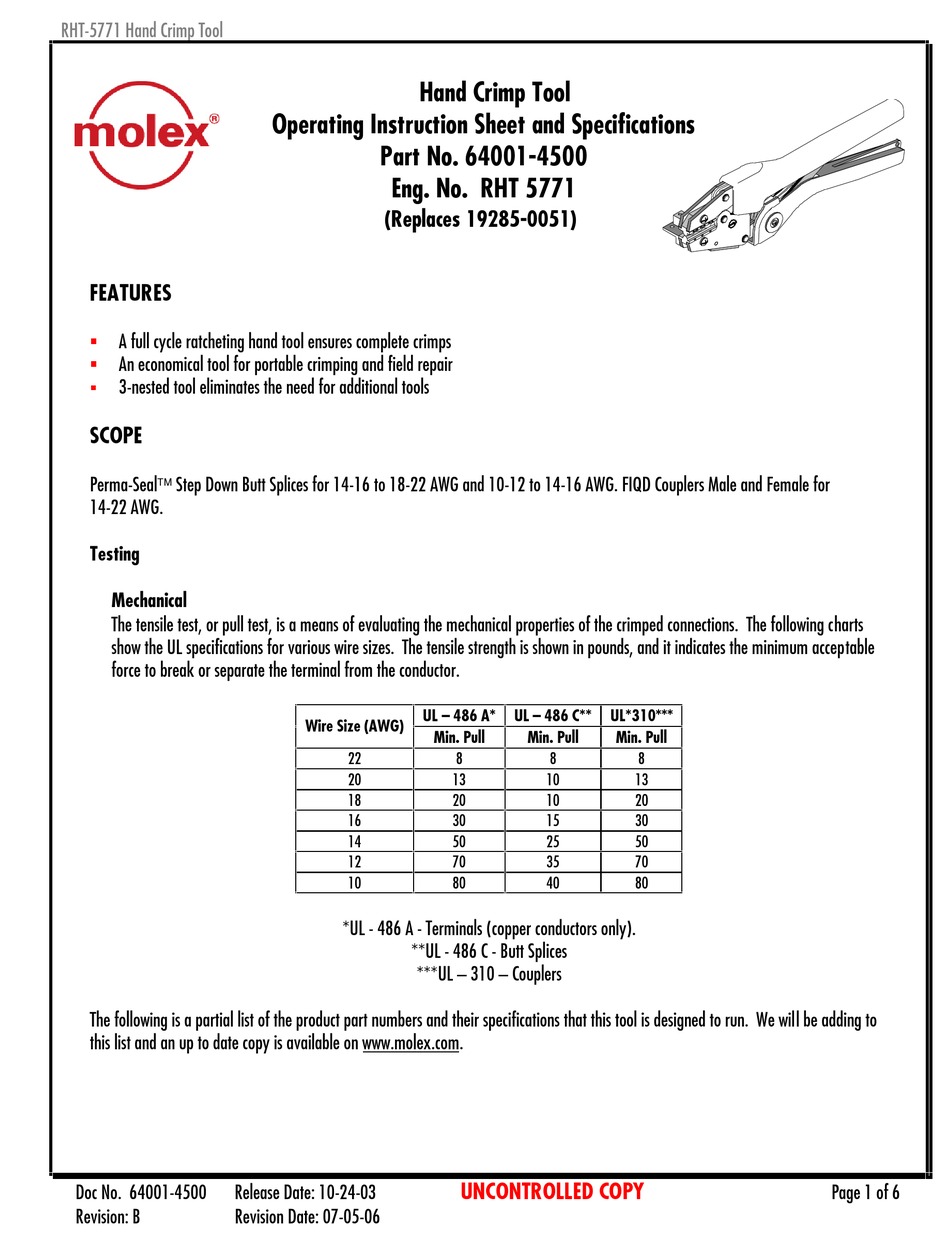

molex RHT-5771 Operating Instruction Sheet And Specifications

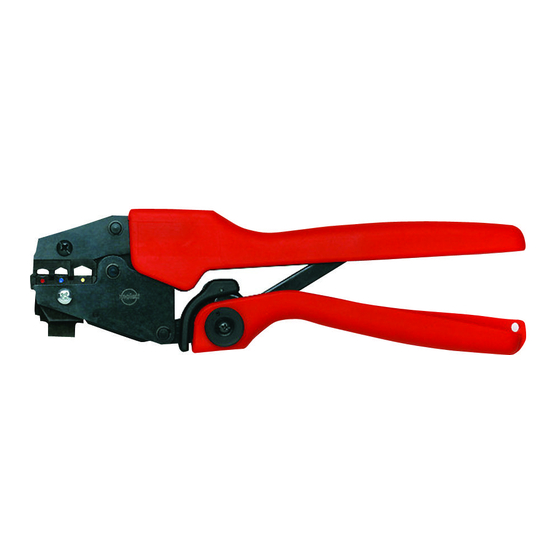

RHT-5771 Hand Crimp Tool
FEATURES
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
An economical tool for portable crimping and field repair
Œ
3-nested tool eliminates the need for additional tools
SCOPE
Perma-Seal Step Down Butt Splices for 14-16 to 18-22 AWG and 10-12 to 14-16 AWG. FIQD Couplers Male and Female for
14-22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds, and it indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com.
Doc No. 64001-4500 Release Date: 10-24-03
Revision: B Revision Date: 07-05-06
Hand Crimp Tool
Operating Instruction Sheet and Specifications
Part No. 64001-4500
Eng. No. RHT 5771
(Replaces 19285-0051)
UL – 486 A*
Wire Size (AWG)
Min. Pull
22
20
18
16
14
12
10
*UL - 486 A - Terminals (copper conductors only).
**UL - 486 C - Butt Splices
***UL – 310 – Couplers
UL – 486 C** UL*310***
Min. Pull Min. Pull
8 8
13 10
20 10
30 15
50 25
70 35
80 40
