Lockly SECURE LATCH EDITION Installation Manual page 20

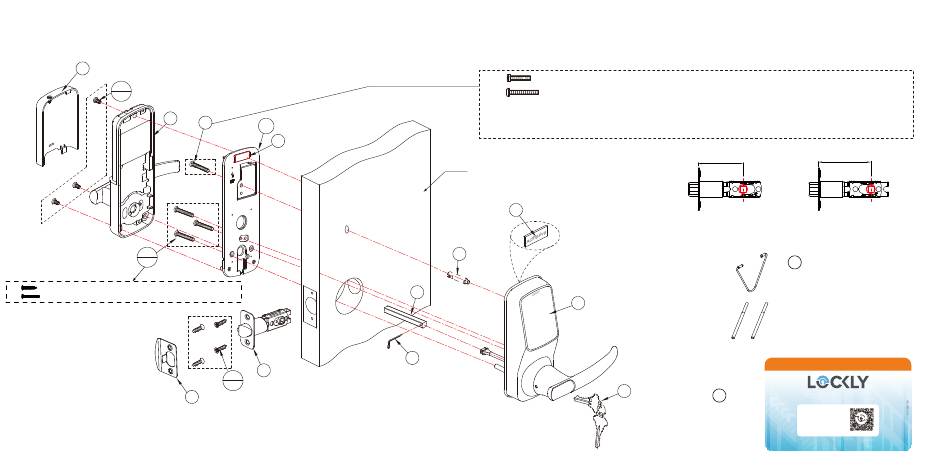

INSTALLATION OVERVIEW & PARTS LIST
Q Battery Cover
BM4 × 8MM Screw
P
3x
Interior Assembly
N
O
PM4 Screw
3x
O1 PM4 x 25mm, for door thickness, 1-3/8"~1-2/3"(35~43mm)
O2 PM4 x 32mm, for door thickness, 1-2/3"~2"(43~50mm)
Strike Plate
M
Mounting Plate
L K
PM5 Screw
S Interior Adhesive
F
Latch
G
4x
H
KA4 x 20MM Screw
This lock can be installed for both right swing and left swing doors. The lock ships ready for a right swing
door installation. If you wish to change the orientation of the lock for a Left Swing door, follow instructions
on Installation Guide (Step 2) or the BILT App (Step 10).
M 1
PM5 x 25mm Screw, Door thickness 1-3/8"~1-2/3"(35~43mm)
M 2 PM5 x 35mm Screw, Door thickness1-2/3"~2"(43~50mm)
NOTE: You can either use the exterior adhesive (T) or slotted barrel extension (U) to stabilize the
*
exterior part. Slotted barrel extension (U) requires drilling an extra hole. Use provided Template
for drilling instructions if needed.
Exterior
Exterior Adhesive
T
Slotted
Barrel
Extension
U
Spindle
C
B
Exterior Assembly
D
Locking Pin
2-3/8"
(60mm)
Measure distance between the center of the hole to the edge
of door, adjust latch F to 2-3/8"(60mm) or 2-3/4"(70mm)
R
2x
KEEP THIS CARD!
A Keys
W
Activation Card
LOCKLY.COM | HOTLINE: +1(669) 500-8835 | EMAIL: HELP@LOCKLY.COM
2-3/4"
(70mm)
Clamping Tool For
changing handle
orientation
Positioning Rod For
installing mounting
plate (LK)
ACTIVATION CARD
LOCK SERIAL
PGDxxxxxxxxxx
ACTIVATION CODE
xxxxxxxx
SCAN & SAVE
