Lockly SECURE LATCH EDITION Installation Manual page 14

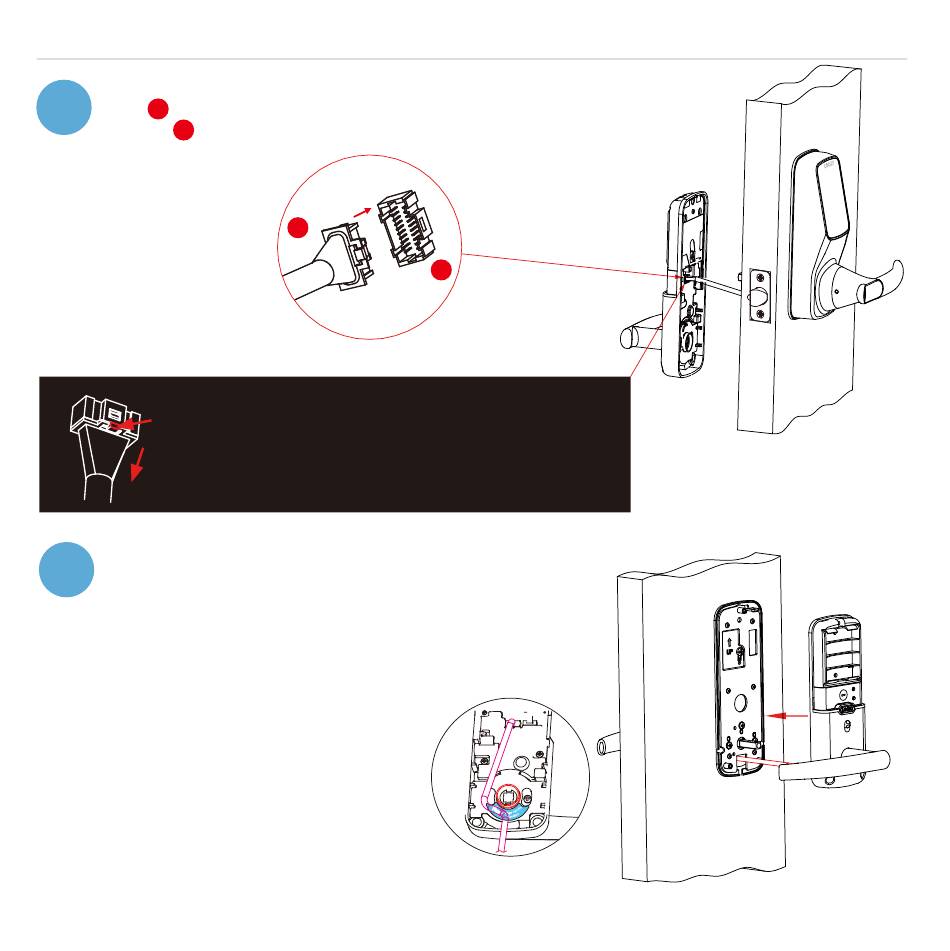

Step 5
continued
5
X
Plug cable that is coming through the door into the lock
Y
interior . Match red side of the plug with red on socket -
insert tightly.
NOTE: If you need to disconnect the cable,
make sure to press the snap tab to release
the plug before carefully pulling it out. Do not
force, as this may result in damaging the lock.
6
Align the square rod to the lock interior and attach
the Interior lock to the Interior mounting plate.
While you are doing so, gently push some of the excess
cable through the rectangular hole into the door.
Place the remaining cable against
the interior side of the lock interior
so the lock interior sits securely
onto the mounting plate.
X
Y
13
INSTALLING THE LOCK (INTERIOR)
