5.6 Removal of the DIN Rail

The DIN holder is suitable for a DIN rail according to EN 60715 standard only. The default
position of BB-SBD25 holder, which is used for mounting the router on a DIN rail, is shown in
the following figure:
In order to remove the DIN rail it is necessary to lightly push the router upward so that the
top part of the BB-SBD25 holder hitched to the DIN rail comes out of this rail, then fold the top
of the router away from the DIN rail.

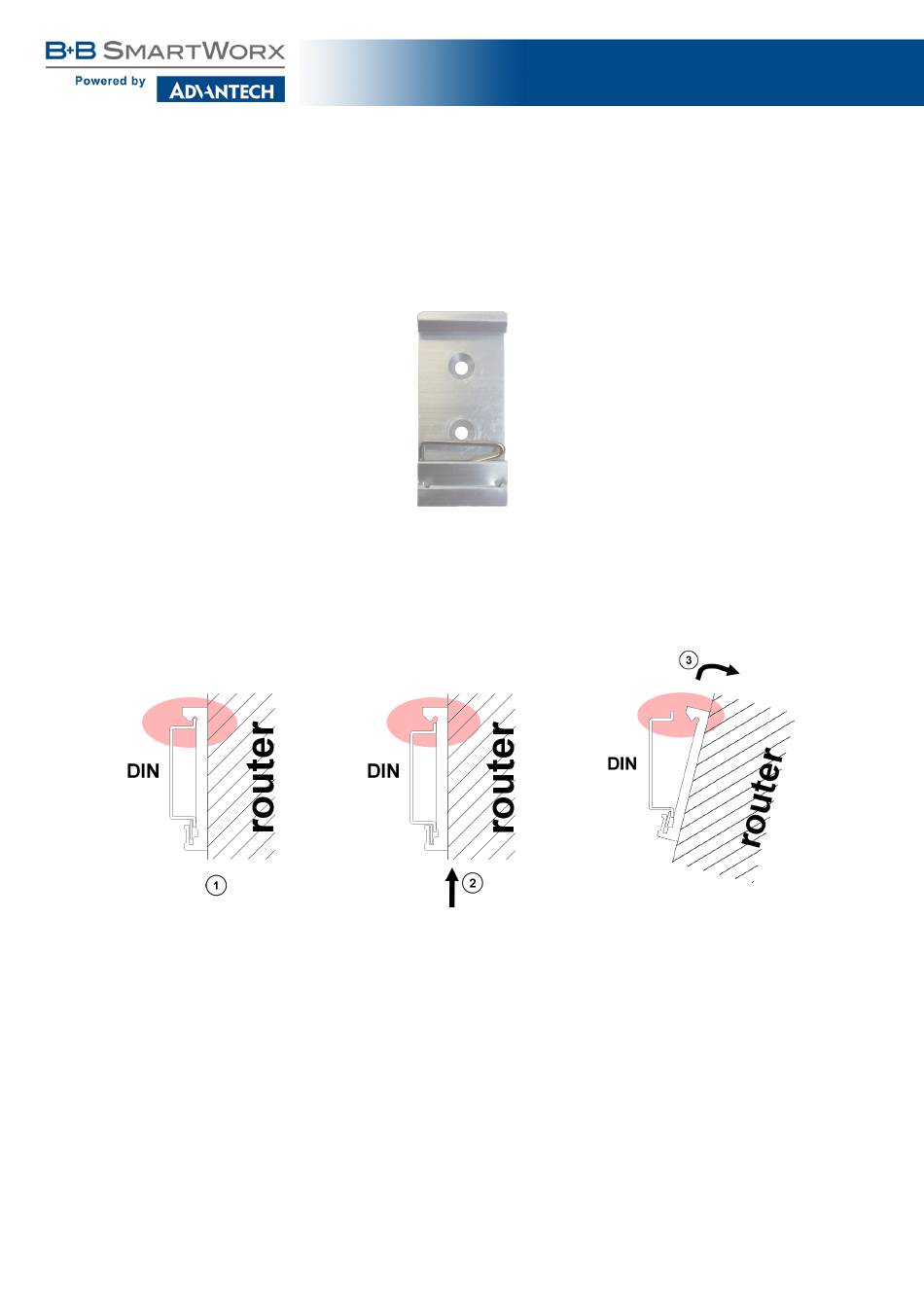

Figure 13: Default position of DIN holder
Figure 14: Removal of the DIN Rail
