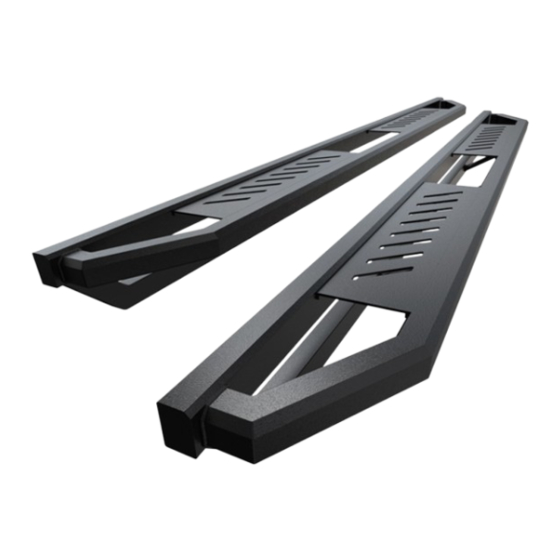

iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING /TRIMMING REQUIRED
Item
QTY
1#
2
Driver Front & Passenger Rear Mounting Brackets
2#
2
Driver Front & Passenger Rear Support Brackets
3#
2
Passenger Front & Driver Rear Mounting Brackets
4#
2
Passenger Front & Driver Rear Support Brackets
5#
4
U Brackets
6#
8
Spacers
7#
12
M8X1.25-30mm Hex Bolts
5 #
iArmor
by APS
Description
6 #
10 #
11 #
Customer Support: info@iarmorauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
M8X1.25-25mm Hex Bolts
8#
8
9#
40
M8 Large Flat Washers
10#
24
M8 Lock Washers
11#
20
M8X1.25 Hex Nuts
12#
4
M8 Clip Nuts
13#
4
M8X1.25-55mm Carriage Bolts
8 #
7 #
12 #
1
PART#: IA-S108
Required
6-7
X
16-18
√
31-32
X
56-58
X
92-94
X
Description
9 #
13 #
Rev. 20211101
