iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!

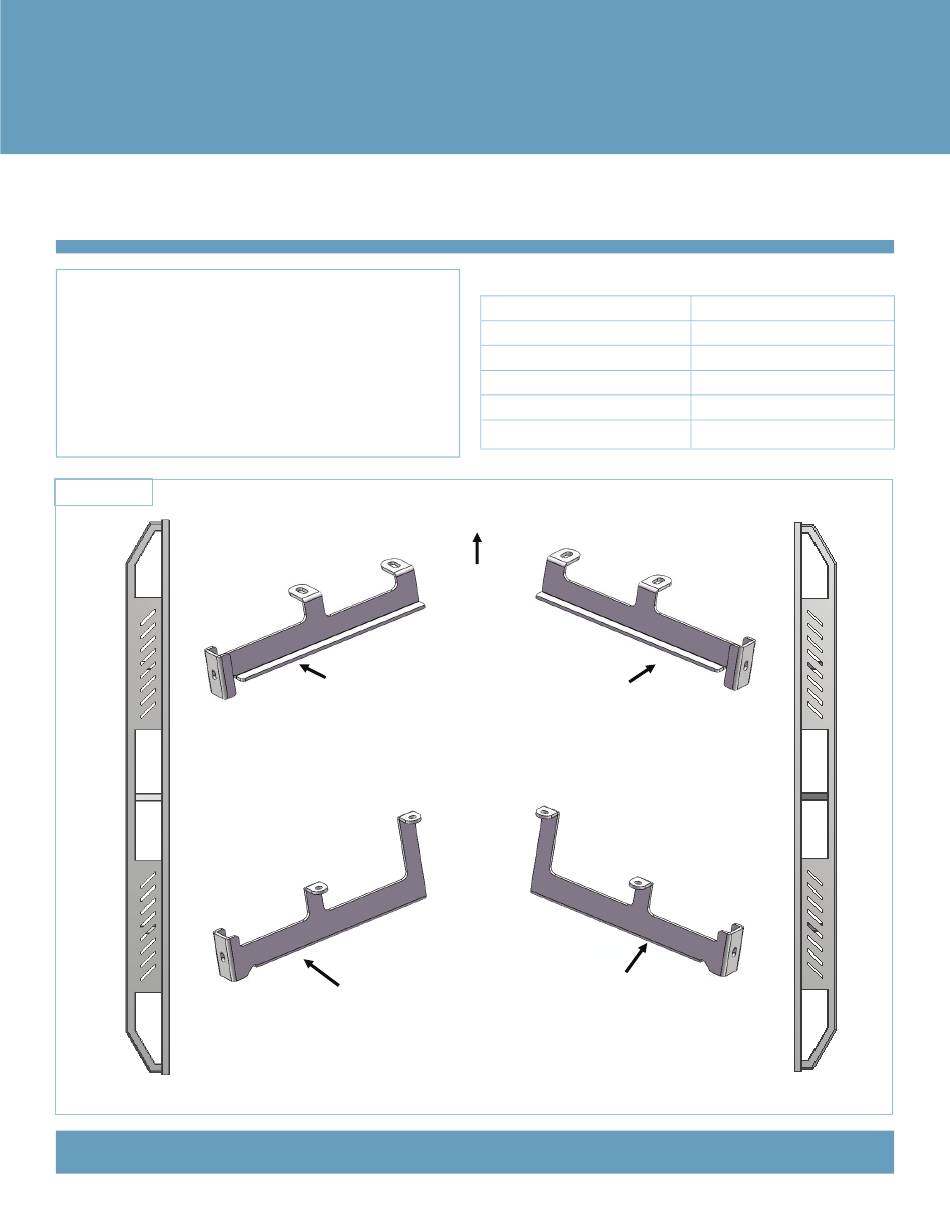

PART LIST
X1
X1
Driver Side Step Bar
iArmor
by APS
Driver Front Mounting
Bracket (DFM)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM)
Passenger Rear Mount-
ing Bracket (PRM)
1
®
PART#: IA‐S926
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
X1
X1
Passenger Side Step Bar
Rev. 20201201
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor IA-S926
Summary of Contents for APS iArmor IA-S926
- Page 1 ® ® iArmor by APS PART#: IA‐S926 BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE 16-18 PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 10mm 31-32 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 12mm 56-58 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 iArmor ® M10 Flat Washer M10X1.5-30mm Bolt Plate M10 Plastic Washer M10X1.5 J-Bolt M10 Lock Washer M10X1.5 Hex Nut M8X1.25-55mm Carriage Bolt Spacer U Bracket M8 Large Flat Washer M8 Lock Washer M8X1.25 Hex Nut STEP 2 The instruction here is for your reference only. We strongly recommend the professional installer for best result.
- Page 3 iArmor ® STEP 3 Move to Driver Side Rear Mounting Location. Remove the two Front foremost factory bolts from the rear suspension bracket. Slide bracket into place and secure using factory bolts (Fig 3). Don’t fully tighten at this time. STEP 4 Once all (2) driver side mounting brackets are installed, select and attach the Driver Side Step Bar onto the Mounting Brackets...
- Page 4 iArmor ® STEP 5 Properly level and adjust the Step Bar and fully tighten all hard- ware. STEP 6 (Fig 5) Installation Completed Attention Move to the passenger side of the vehicle. Repeat Steps 1-5 to Do periodic inspections to the installation to make sure install passenger side step bar.
