iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING /TRIMMING REQUIRED
Item
QTY
1#
2

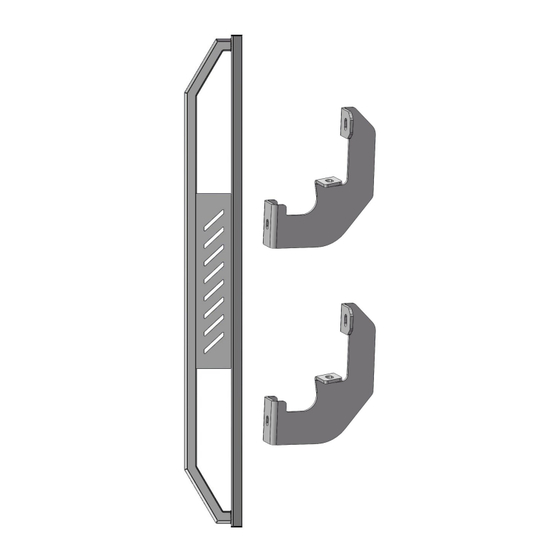

Driver Front & Rear Mounting Brackets
2#
2
Passenger Front & Rear Mounting Brackets
3#
4
U Brackets
4#
8
Spacers
5#
8
M8X1.25-30mm Hex Bolts
3 #
iArmor
by APS
Description
4 #
5 #
Customer Support: info@iarmorauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
M8 Large Flat Washers
6#
12
7#
12
M8 Lock Washers
8#
4
M8X1.25-55mm Carriage Bolts
9#
4
M8X1.25 Hex Nuts
6 #
7 #
1
PART#: IA-S296
Required
6-7
X
16-18
√
31-32
X
56-58
X
92-94
X
Description
8 #
9 #
Rev. 20211101
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor IA-S296
Summary of Contents for APS iArmor IA-S296
- Page 1 ® ® iArmor by APS PART#: IA-S296 Fastener Size Tightening Torque (ft-lbs) Required BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY 16-18 √ BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. THANK YOU FOR CHOOSING OUR...
- Page 2 iArmor ® Front Driver Passenger Customer Support: info@iarmorauto.com Rev. 20211101...
- Page 3 iArmor ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Front Start the installation under the Driver side of the vehicle. Locate the plastic plugs along the bottom edge of the body, (Fig 1).
- Page 4 iArmor ® STEP 5 STEP 4 Properly level and adjust the Step Bar and fully tighten all hard- ware. Once all (2) driver side mounting brackets are installed, select and attach the Driver Side Step Bar onto the Mounting Brackets STEP 6 with (2) U Brackets, (4) Spacers, (2) M8X1.25-55mm Carriage Bolts, (2) M8 Large Flat Washers, (2) M8 Lock Washers and (2)
