APS iArmor IA-S116H Manual

APS iArmor IA-S116H Manual

Stainless steel pocket steps running boards side bars compatible with jeep wrangler jl 2018-2024 2-door

Advertisement

Quick Links

®
iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*NO DRILLING / TRIMMING REQUIRED

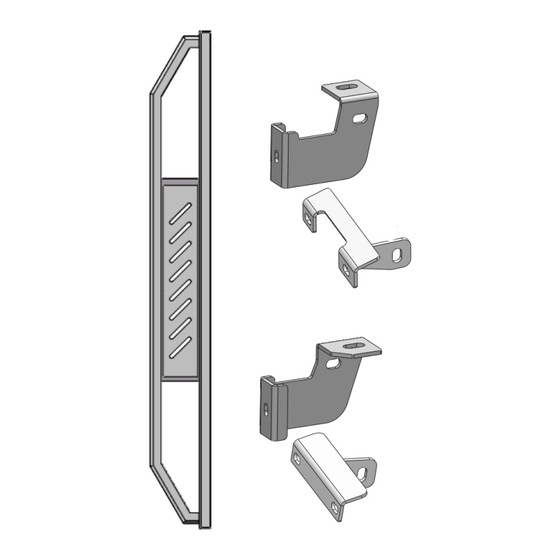

PART LIST
Driver Side Step Bar
Driver Front Mounting
Bracket (DFM)
Driver Rear Mounting
Bracket (DRM)
iArmor
by APS
Driver Front Support
Bracket (DFS)
Driver Rear Support
Bracket (DRS)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mount-
Passenger Front
Support Bracket
(PFS)
Passenger Rear Mounting
Bracket (PRM)
Passenger Rear
Support Bracket
(PRS)
1
®
PART#: IA-S116H
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
ing Bracket (PFM)
Rev. 20231101
Required
X
X
X

Advertisement

loading
Need help?

Need help?

Do you have a question about the iArmor IA-S116H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for APS iArmor IA-S116H

  • Page 1 ® ® iArmor by APS PART#: IA-S116H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
  • Page 2 iArmor ® Hardware Package A (For Bracket Installation) Item Description Item Description U Brackets M8 Nylon Lock Nuts M8X1.25-35mm Hex Bolts M6X1-25 Hex Bolts M8 Large Flat Washers M6 Large Flat Washers M8 Lock Washers M6 Nylon Lock Nuts M8 Flat Washers Hardware Package B (For Step Bar Installation) Item Description...
  • Page 3 iArmor ® STEP 3 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Attach the Assembled Passenger Front Mounting Bracket on the mounting position (Fig 3).
  • Page 4 iArmor ® STEP 5 STEP 6 Locate the Passenger Side Rear Mounting position on vehicle Once all (2) passenger side mounting brackets are installed, (Fig 5). Attach the Assembled Passenger Rear Mounting select and attach the Passenger Side Step Bar onto the Mount- Bracket on the mounting position.
  • Page 5 iArmor ® NOTE: Torque all M8 X1.25-55mm Car- Front riage Bolts to 16~18 Ib-ft. Don't over tighten, or the square bars will be damaged by the brackets U Bracket M8 Large Flat Washer M8 Lock washer U Bracket M8X1.25 Hex Nut Mounting Bracket M8X1.25-55mm Carriage Bolt...
