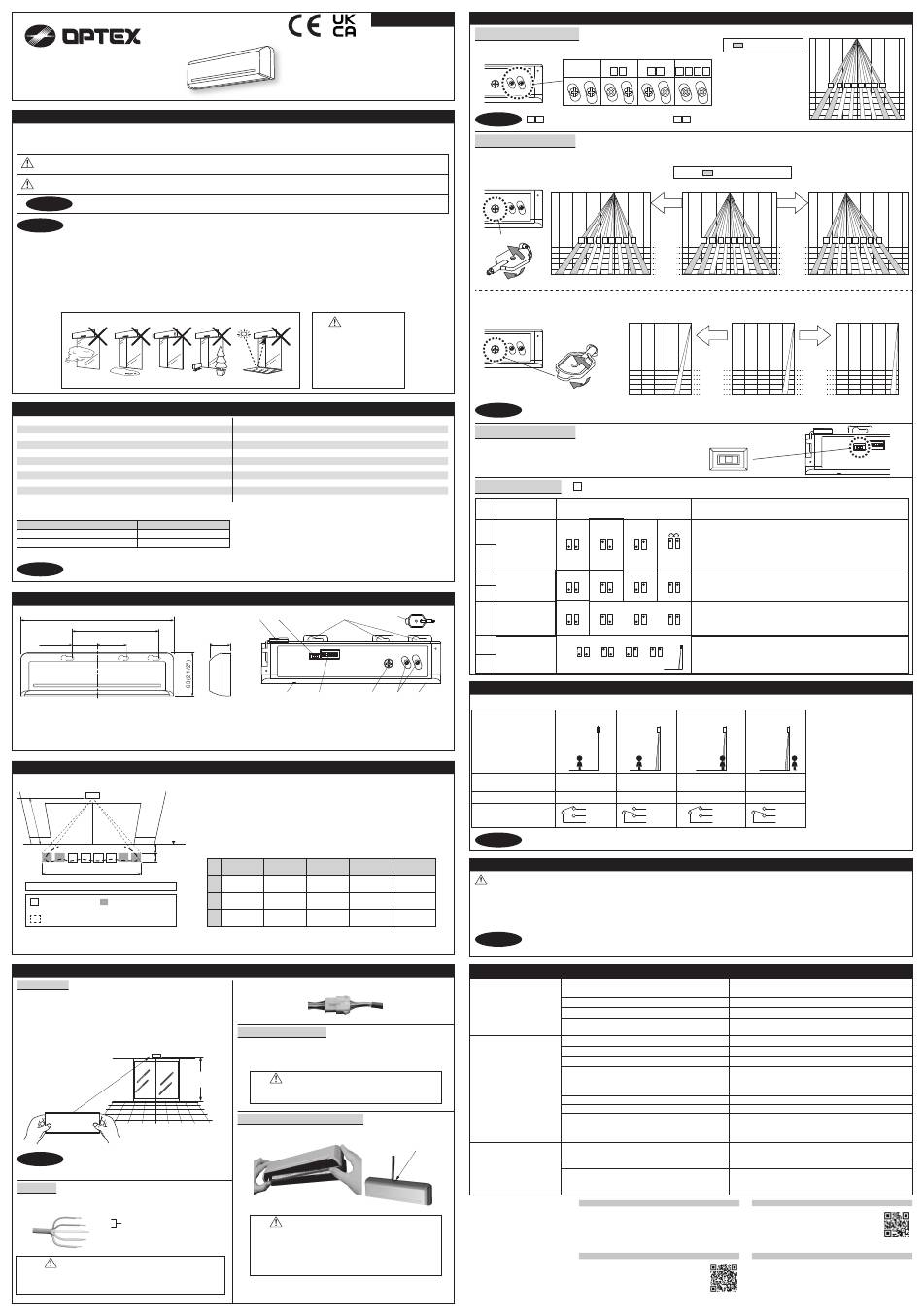

Optex OA-PRESENCE Manual

OA-PRESENCE
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
WARNING
Failure to follow the instructions that accompany this indication and improper handling may result in serious injury or death.
Failure to follow the instructions that accompany this indication and improper handling may result in injury and/or damage to
CAUTION
property.
NOTE
Pay special attention to sections with this symbol.
NOTE
1. This product is a non-contact switch intended for header mount or wall mount for use on an automatic sliding door.
Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in which the product is
installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the building owner/operator on
proper operation of the door and the product.
7. The product settings can only be changed by an installer or service engineer.
When changed, the changed settings and the date shall be registered in the maintenance logbook accompanying the door.
The following conditions are not suitable for sensor installation.
Fog,
Exhaust Wet Vibration
Specifications
Model : OA-PRESENCE
Cover color : Silver/Black
Mounting height : 3.0 m (9'10") Max.
Detection area : See Detection area
Detection method : Active infrared reflection
Depth angle adjustment : ±4° (1 clicks with 1°every click-Left/Right)
Width angle adjustment : ±7° (2 clicks with 3.5°every click-Left/Right)
Power supply : 12 to 30 VAC/DC
Current draw : 160 mA Max. (At 12 VAC)
Operation indicator : See Operation indicator table
Operation indicator table
Status Operation indicator color
Stand-by Green
1st row detection Red
NOTE
The specifications herein are subject to change without prior notice due to improvements.
Outer dimensions and part names
221(8 11/16")
125(4 15/16")
36(1 7/16") 43(1 11/16")
Detection area
Detection areas are shown in the figure below.
A
Mounting
surface
C
1st row
B
D
1st row : Motion/presence detection
: Emitting spots
: Emitting spots
(Can be eliminated)
: Detection area
Installation
1. Mounting
a. Place the mounting template at the desired mounting position.
b. Drill two mounting holes of ø3.4 mm (ø1/8").
c. To pass the cable through the header, drill a wiring hole of
ø8 mm (ø5/16").
d. Remove the mounting template.
e. Remove the housing cover.
Fix the sensor to the mounting surface with the two mounting screws.
Mounting
template
NOTE
Be sure that the mounting position is within the value of
those in Specifications.
2. Wiring
a. Wire the cable to the door controller.
Grey Power supply
Grey 12 to 30 VAC/DC
White : COM.
Yellow : N.O.
Green : N.C.
WARNING
Danger of electric shock
Before starting the procedure, ensure that the power is turned OFF. When
passing through the cable to the hole, make sure not to tear the shield,
otherwise it may cause electric shock or breakdown of the sensor.
WARNING
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Objects Reflection
Output : Form C relay 50 V 0.3 A Max.
(Resistance load)
Output hold time : Approx. 500 ms
Response time : < 300 ms
Operating temperature : -20 °C to +55 °C (-4 °F to +131 °F)
Weight : 200 g (9.2 oz)
Accessories : 1 Cable 3 m (9'10")
2 Mounting screws
1 Operation manual
1 Mounting template
1 Area adjustment tool
(1) (2) (3)
[mm(inch)]
29.9
(1 3/16")
(4) (5) (6)
(1) Connector (5) Dipswitches
(2) Sensitivity switch (6) Area adjustment screw
(3) Mounting holes (7) Width adjustment shutters
(4) Operation indicator (8) Detection window
(9) Area adjusting tool
After adjustment, turn the power OFF and ON again, be sure to walk-test all of
detection areas.
* The values of the chart below is of the emitting spots , but not of the detection area.
The actual detection area may become smaller depending on the ambiance light and
the color/material of object and the floor as well as the entry speed of object.
A 2.00 (6'7") 2.20 (7'3") 2.50 (8'2") 2.70 (8'10")
B 0.14 (5") 0.16 (6") 0.18 (7") 0.19 (7")
C 0.16 (6") 0.18 (7") 0.20 (8") 0.22 (9")
D 2.10 (6'11") 2.30 (7'7") 2.60 (8'6") 2.80 (9'3")
b. Plug the connector for the sensor to that for the cable.
3. Turn ON the power
a. Plug the connector.
b. Supply power to the sensor. Adjust the detection area and set the
dipswitches. (See Adjustments 4. Dipswitch settings)
3 m
WARNING
Danger of electric shock
Max.
Make sure that you connect the cable correctly to the control unit
of the door before turning the power ON.
4. Mounting the housing cover
Place the housing cover. If wiring is to be exposed, break the knockout.
WARNING
Danger of electric shock
Do not use the sensor without the cover. When using the cable
knockout, install the sensor indoors or use the rain cover
(Separately available) otherwise electric shock or breakdown of
the sensor may occur.
Adjustments
ENGLISH
1. Area width adjustment
Adjust the detection area width with the width adjustment shutters.
5912223 DEC 2021
NOTE
1 2
cannot be eliminated separately, neither can
2. Area angle adjustment
a. Area width angle adjustment
The angle of the detection area can both be moved 7°
either left or right in 2 steps.
Right
Left
b. Area depth angle adjustment
Adjusting the depth angle between
-4° to 4°. (1°per click)
NOTE
Set the pattern for actual traffic. It may cause slow activation for the traffic from the front, when the row is eliminated.
3. Setting the sensitivity
Normally set to "M".
"H" increases the sensitivity and "L" lowers the sensitivity.
Factory default setting : M
4. Dipswitch settings
Dip
switch Function
No.
1
Presence timer
2
3
Frequency
4
(9)
5 Immunity
7
Area depth
adjustment
8
Checking
(7) (8)
Check the operation in the operation mode according to the chart below.
Entry
Status
Operation indicator
Output
NOTE
The door may open once after the power is switched ON.
[m(feet,inch)]
Inform building owner/operator of the following items
3.00 (9'10")
WARNING
0.21 (8")
1. Always keep the detection window clean. If dirty, wipe the window with a damp cloth. Do not use any cleaner/solvent.
2. Do not wash the sensor with water.
0.25 (10")
3. Do not disassemble, rebuild or repair the sensor yourself, otherwise an electric shock may occur.
4. Always contact your installer or service engineer when changing the settings.
3.10 (10'2")
5. Do not paint the detection window.
NOTE
1. When turning the power ON, always walk-test the detection area to ensure the proper operation.
2. Do not place any objects that move oremit light in the detection area. (e.g. plant, illumination, etc.)
Troubleshooting
Door operation
Door does not open when a
person enters the detection
area.
Door opens when no one is
in the detection area.
(Ghosting)
Knockout
Door remains open.
Eliminate Eliminate Eliminate
Opens
all areas 1 2 7 8 1 2 7 8
7 8
.
: Can be eliminated
7° to left Standard (0˚)
[m(feet,inch)]
Left
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7
2.0 (6'7")
2.2 (7'3")
2.4 (7'10")
2.6 (8'7")
2.8 (9'2")
3.0 (9'10")
2.0 1.0 1.0 1.0
0
(6'7") (3'3") (3'3") (3'3")
Deep(+4˚)
[m(feet,inch)]
Deep
Shallow
2.0 (6'7")
2.2 (7'3")
2.4 (7'10")
2.6 (8'7")
2.8 (9'2")
Deep
3.0 (9'10")
2.0 1.0 0
(6'7") (3'3")
L M H
Factory default settings
Setting
The 1st and 2nd rows have the presence detection function.
(1) Select the presence detection time.
2 s 15 s 180 s
(2) Turn the power OFF and ON again. Otherwise it may leave door open
for the duration of the presence time set.
1 2
1 2 1 2 1 2
(3) After making sure that the door closes, wait for 10 s before entering
the detection area to set the presence timer.
Setting1 Setting2 Setting3 Setting4
When using more than one sensor close to each other, set the frequency
different for each sensor.
3 4 3 4 3 4 3 4
Normal Immunity Immunity Immunity
Set this switch to "Immunity" when the sensor operates by itself.
(Ghosting)
5 6 5 6 5 6 5 6
1 row 1 row 1 row 1 row
With any convination the dipswitch 7 & 8, only one row is active.
7 8 7 8 7 8 7 8
* Default
Outside of
Power OFF Entry into 1st row
detection area
Motion/presence
- Stand-by
detection active
None Green Red
Yellow Yellow Yellow
Green Green Green
White White White
Possible cause
Wrong power supply voltage.
Wrong wiring or connection failure.
Short presence timer.
Dirty detection window.
Objects that move or emit light in the detection area.
Vibration of the header.
Sensitivity is too high.
Waterdrops on the detection window.
Detection area is interfered the area of another sensor.
The detection area overlaps with the door/header.
Sudden change in the detection area.
Dirty detection window.
Sensitivity is too low.
Presence timer is set to infinity.
Or sudden change in the detection area.
Manufacturer
OPTEX CO., LTD.
5-8-12 Ogoto Otsu 520-0101, Japan
Tel : +81(0)77 579 8700
www.optex.net
EMEA Subsidiary
OPTEX Technologies B.V.
Henricuskade 17, 2497 NB The Hague,
The Netherlands
Tel : +31(0)70 419 41 00
www.optex-europe.com
Front view
[m(feet,inch)]
: Can be eliminated
1 2 3 4 5 6 7 8
2.0 (6'7")
2.2 (7'3")
2.4 (7'10")
2.6 (8'7")
2.8 (9'2")
3.0 (9'10")
0
1.0 1.0
(3'3") (3'3")
7° to right
[m(feet,inch)] [m(feet,inch)]
Right
8 1 2 3 4 5 6 7 8
2.0 (6'7")
2.2 (7'3")
2.4 (7'10")
2.6 (8'7")
2.8 (9'2")
3.0 (9'10")
1.0 1.0 1.0 2.0
0 0
(3'3") (3'3") (3'3") (6'7")
Standard (0˚) Shallow(-4˚)
[m(feet,inch)] [m(feet,inch)]
Shallow
2.0 (6'7")
2.2 (7'3")
2.4 (7'10")
2.6 (8'7")
2.8 (9'2")
3.0 (9'10")
2.0 1.0 0 2.0 1.0 0
(6'7") (3'3") (6'7") (3'3")
Comment
Outside of
detection area
Stand-by
Green
Yellow
Green
White
Possible countermeasures
Set to the stated voltage.
Check the wires and connector.
Set the presence timer longer.
Wipe the detection window with a damp cloth.
Do not use any cleaner or solvent.
Remove the objects.
Secure the header. Or set the sensitivity switch to "L".
Set the sensitivity switch to "L".
Use the rain-cover. (Separately available) Or wipe the
detection window with a damp cloth. Do not use any cleaner
or solvent. Or install in a place keeping the waterdrops off.
Set the different frequency position each other.
Adjust the detection area to "Deep" (Outside).
Check the dipswtich 5, 6.
If the problem still persists, hard-reset the sensor.
(Turn the power OFF and ON again.)
Wipe the detection window with a damp cloth.
Do not use any cleaner or solvent.
Set the sensitivity switch to "H".
Check the dipswtich 1,2.
If the problem still persists, hard-reset the sensor.
(Turn the power OFF and ON again.)
North and South America Subsidiary
OPTEX INCORPORATED
18730 S. Wilmington Avenue, Suite 100
Rancho Dominguez CA 90220 U.S.A
Tel : +1(800)877 6656
www.optexamerica.com
Legal representative (UK only)
OPTEX (EUROPE) LTD.
Unit 13 Cordwallis Park Clivemont Road
SL6 7BU Maidenhead, Berkshire United Kingdom
Tel : +44 (0)1628 631 000
www.optex-europe.com
