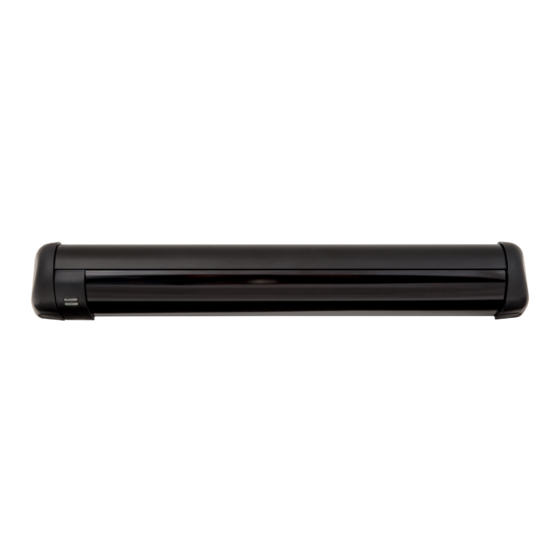

Optex OA-EDGE T Quick Reference Manual

OA-EDGE T Quick Reference Guide
This guide is a supplement to the installation manual and when used will significantly
help reduce installation time and/or issues. For questions or help please contact our
technical support team at (800) 877 6656.
Installing the modules
Once the extrusion has been mounted, to the door(refer to manual :
Installation, Step 1), install the modules using the mounting clips.
Clip placement and module arrangement
Master module
Clip without
screw adjuster Transmitter
Secondary module
Clip without
Receiver
screw adjuster
The clip with the screw adjuster goes on the right and the clip without the screw adjuster goes
on the left.The transmitter on the module (identified by the TX decal) goes towards the edge
of the door panel with the receiver towards the center of the panel. (OA-EDGE1 T master
goes toward latch edge, OA-EDGE2 T master goes towards pivot edge.)
TX RX
Master module
OA-EDGE1 T
TX RX
Secondary module
OA-EDGE2 T
5924703 DEC 2022
Receiver Screw adjuster
Transmitter Screw adjuster
RX TX
Master module
Attachthe clips
Place the clips over the mounting post and then press
downward to snap in place.
NOTE : Two extra clips per module have been provided.
Determine module position
Determine module position in the housing according to the
photos and chart below for your application.
Latch edge of door to sensor Pivot edge of door to sensor
Door width OA-EDGE1 T(Master only)
36" to 48" A Dimension = 4" *
Door width OA-EDGE2 T(Master and secondary)
Door width A dimension B dimension
36" 4" 4"
42" 4" 6"
48" 4" 9"
For ANSI A 156.10 applications you must walk-test the door
using AAADM-recommended testing procedures.
Adjustments may need to be performed.
If unsure contact OPTEX Technical Support.
* NOTE : For ANSI A 156.10 swing side applications we
recommend locating no further than 4" from latch edge of
panel. For secondary activation (NON ANSI A 156.10) module
can be located for desired detection area.
Module installation
To install module, tilt the back of the module down and place
front of clips in housing. Raise the back of the module into the
housing until clips snap into place.
CAUTION : See step E before repositioning.
Module repositioning
If you need to reposition the modules left or right,release the clips from the
back and lower the back of the module while holding front of clips engaged in
housing. Move the module to the desired position and raise and re-engage
the back of the clips into the
housing.
NOTE : moving the modules
while fully engaged in
housing will damage the
foam blocks on the clips.
Dipswitch Settings
Note: A-Dipswitches are found on master modules only
Select desired inactive area using dipswitch A1 (Master only) and B1
(Master and secondary). We recommend 9 13/16" setting (Master : A1 OFF
and B1 : ON, Secondary : B1 ON). For other inactive area settings, refer to
manual : Adjustments, Step 2.
Settings for the inactive area. showing the recommended 9 13/16" setting :
A1 OFF and B1 ON on the master (Ieft). and B1 ON on the secondary
module (right photo).
On simultaneous pairs or double egress,set A2 OFF on all modules of one
door panel and A2 ON on all modules of the other door panel.
Set A3 OFF.
Set A4 and A5 to desired relearn time.
Setting for the relearn time
Set A6 OFF.
Set A7 and Set A8 OFF.
Detection
Test input
High
Safety output
A7 A8
open
N.O.
close
open
N.C.
close
Set B2 OFF.
Set B3 ON.
Set B4 according to which side of door sensor is mounted.
OFF = Swing side safety
ON = Approach side reactivation.
Test input
10 msec 10msec
