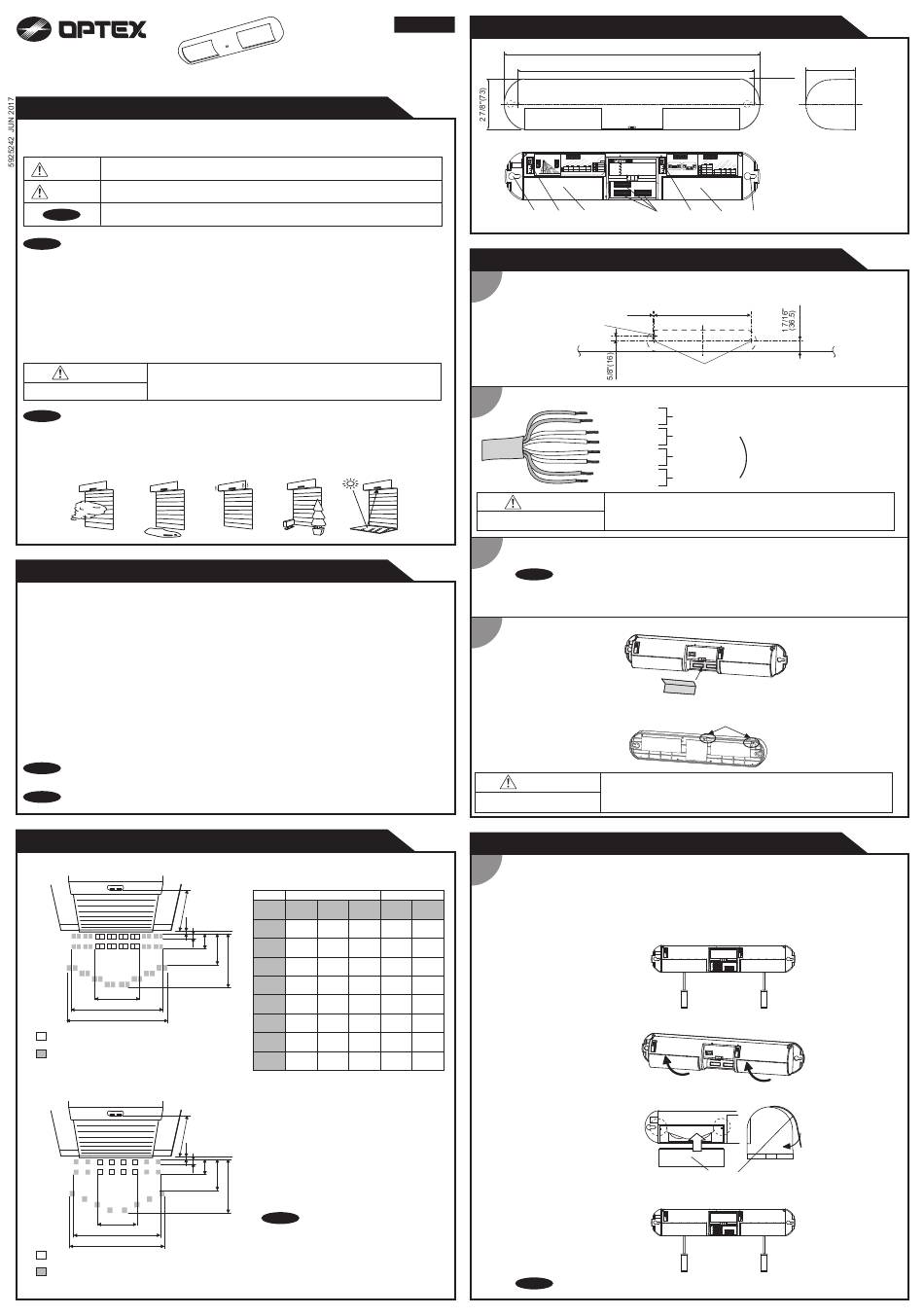

Optex OA-6500S T Manual

OA-6500S T
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions provided with this indication and improper handling may cause
WARNING
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
CAUTION
injury and/or property damage.
NOTE Special attention is required to the section of this symbol.
NOTE
1. This product is a non-contact switch intended for header mount for use on industrial door.
Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected
to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in
which the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the building
owner/operator on proper operation of the door and the product.
7.The product settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor, otherwise
it may cause electric shock or breakdown of the equipment.
Danger of electric shock.
NOTE The following conditions are not suitable for sensor installation.
- Fog or exhaust emission around the door.
- Wet floor.
- Vibrating header or mounting surface.
- Moving objects or objects that emit light near the detection area.
- Highly reflecting floor or highly reflecting objects around the door.
Specifications

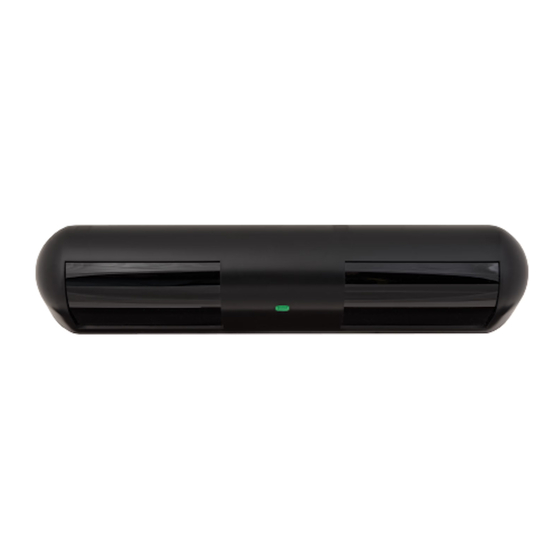

Model : OA-6500S T
Color : Black
Mounting height : 8'2" (2.5m) to 21'4" (6.5m)
Detection area : See Detection area
Detection method : Active infrared reflection method
(All presence detection)
Depth adjustment : 1st and 2nd rows: -15° to +5°
3rd row: +30° to +50°
Power supply : 12 to 24VAC ±10% (50 / 60Hz)
12 to 30VDC ±10%
Power consumption : < 2.5W (< 3.5VA at AC)
Operation indicator : Green / Stand-by
Red / 1st row detection
Orange / 2nd and 3rd rows detection
NOTE
The specifications herein are subject to change
without prior notice due to improvements.
NOTE LED will be turned off about 500ms when the
sensor Test output signal works well.
Detection area
[Standard window]
Mounting
height
Z
1st row
A B
2nd row
3rd row
E
F
G
: Emitting spots
: Emitting spots (Can be eliminated)
[High mount window]
Mounting
height
Z
1st row
A B
2nd row
3rd row
E
F
G
: Emitting spots
: Emitting spots (Can be eliminated)
Activation output : 3rd row detection
N.C. / N.O. selectable
50V 0.3A MAX.(Resistance load)
Test input : Opto coupler
Voltage 5 to 30VDC
Current 6mA Max. (30VDC)
Safety output : 1st or 2nd row detection
N.C. / N.O. selectable
50V 0.3A MAX.(Resistance load)
Output hold time : Approx. 0.5sec.
Response time : < 0.3sec.
Operation temperature : -4°F to 131°F(-20°C to +55°C)
Operating humidity : < 80%
IP rate : IP44
Weight : 21.2 oz (600g)
Accessories : 1 Cable 25' (7.62m)
2 Mounting screws
1 Mounting template
1 Operation manual
1 High mount window
1 Protection sticker
High mount window
Window Standard window
8'2" 11'6" 14'9"
Mounting
(2,500) (3,500) (4,500)
height
6" 8" 11"
A
(150) (210) (280)
1'10" 2'7" 3'4"
B
C
(560) (790) (1010)
D
2'3" 3'2" 4'1"
C
(680) (960) (1240)
4'5" 6'2" 7'11"
D
(1340) (1870) (2410)
5'1" 7'1" 9'1"
E
(1530) (2150) (2760)
11'11" 16'9" 21'7"
F
(3640) (5100) (6560)
12'7" 17'8" 22'8"
G
(3840) (5380) (6910)
6" 9" 11"
Z
(150) (220) (280)
Values of the chart are based on the following depth
angle adjustment settings;
1st and 2nd rows : +5°
3rd row : +30°
C
D
NOTE
The actual detection area may become smaller
depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of
the object.
The sensor may not be activated when the entering
speed of the object or a person is slower than
50mm / sec. or faster than 1500mm / sec.
ENGLISH
Outer dimensions and part names
Depth adjustment
1st and 2nd rows 3rd row
+5 °
-5 °
-15 °
(4) (1)
Installation
1
Drill two mounting holes ø1/8" (ø3.4mm) on the header.
To pass the cable through the header, drill a wiring hole of ø5/16" (ø8mm).
Wiring hole ø5/16" (ø8.0mm)
The lower edge
of the header
2
Wire the cable to the door controller as shown below.
WARNING
Danger of electric shock.
3
1.Plug the connector of the sensor.
2.Supply power to the sensor. Adjust the detection area and set the dipswitches. (See Adjustments)
NOTE
Make sure to connect the cable correctly to the door controller before turning the power ON.
When turning the power ON or after adjusting the settings, do not enter the detection area for more
than 10 seconds in order to enable the presence detection.
When changing the settings of dipswitch, see Adjustments 3 Dipswitch settings.
4
1.Put the protection sticker as shown below.
2.Place the housing cover.
If wiring is to be exposed, break the knockout.
WARNING
Danger of electric shock.
Adjustments
1
Detection window selection
[feet,inch(mm)] According to the mouting height, select proper detection window.
8'2"(2.5m) to 16'5"(5.0m) : Standard window(default)
16'5"(5.0m) to 21'4"(6.5m) : High mount window
18'1" 21'4"
(5,500) (6,500)
When changing window follow procedure below.
1'1" 1'4"
(340) (400)
1. Remove the screws
4'1" 4'10"
(1240) (1470)
4'11" 5'11"
(1510) (1790)
9'8" 11'5"
(2940) (3480)
9'2" 10'10"
(2790) (3300)
23'9" 28'1"
(7230) (8550)
2.Take the windows off.
25' 29'7"
(7620) (9010)
1'1" 1'4"
(340) (410)
3.Attach the windows.
4.Fix the windows with the screws.
NOTE Please carry out operation check after changing window.
1'2 5/8"(371)
1'1 5/16"(338)
ON : Active
SW2 SW3
SW1 OFF : Eliminate
OA-6500S T
5,6,7 Detection area pattern
Setting 1 1st and 2nd rows 3rd row
Wiring Grey Power supply :12 to 24VAC±10% / 12 to 30VDC±10% 1,2 7,8
Grey Power consumption : < 2.5W ( < 3.5VA at AC)
1 2 Setting 2 6 7 2sec. Low
3 4 8 White Activation output (When 3rd row detects.) +50°
N.O. N.O. ON Activation Low Setting 3 Yellow N.C. / N.O. selectable , 50V0.3A MAX.(Resistance load) 5 8
+40° 1 2 3 4 60sec. Middle 3 4 5 6
White stripe Safety output (When 1st or 2nd row detects.)
N.C. N.C. OFF Safety High Setting 4 +30° 10min. High 1st & 2nd ON ON ON
Yellow stripe N.C. / N.O. selectable , 50V0.3A MAX.(Resistance load) Detection area 2 (3) can not be eliminated
Make sure that Dipswitch 5 is set to "OFF" for any setting. Red + Test input when dipswitch 1 (4) is not eliminated. S-High OFF OFF OFF
1st to 3rd
Black - Opto coupler, Voltage : 5 to 30VDC, Max.
ON
SW1
1 2 3 4 5 6 7 8
ON ON
SW2 SW3
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
(3) (5) (2) (3)
1/8" (3) 1'1 5/16" (338)
Mounting holes ø1/8" (ø3.4mm)
12 to 24VAC (50 / 60Hz)
Grey
Power supply
Grey 12 to 30VDC
White
Activation output
Yellow
White stripe
Safety output
Yellow stripe
Red (+)
Test input
Black (-)
Before starting the procedure, make sure that the power is turned OFF.
When passing the cable through the hole, do not tear the shield.
otherwise it may cause electric shock or breakdown of the sensor.
Knockout
Do not use the sensor without the cover.
When using the cable knockout, install the sensor indoors or use the rain-cover
(Separately available) otherwise electric shock or breakdown of the sensor may
occur.
ON
1 2 3 4 5 6 7 8
ON ON
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
window
ON
1 2 3 4 5 6 7 8
ON
ON
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
[inch(mm)]
2 13/16"(72)
3/8"(10)
(1) 1st and 2nd rows adjustment screw
(2) 3rd row adjustment screw
(3) Detection window
(4) Mounting holes
(4)
(5) Dipswitches
[inch(mm)]
See Adjustments 3-1 for settings.
