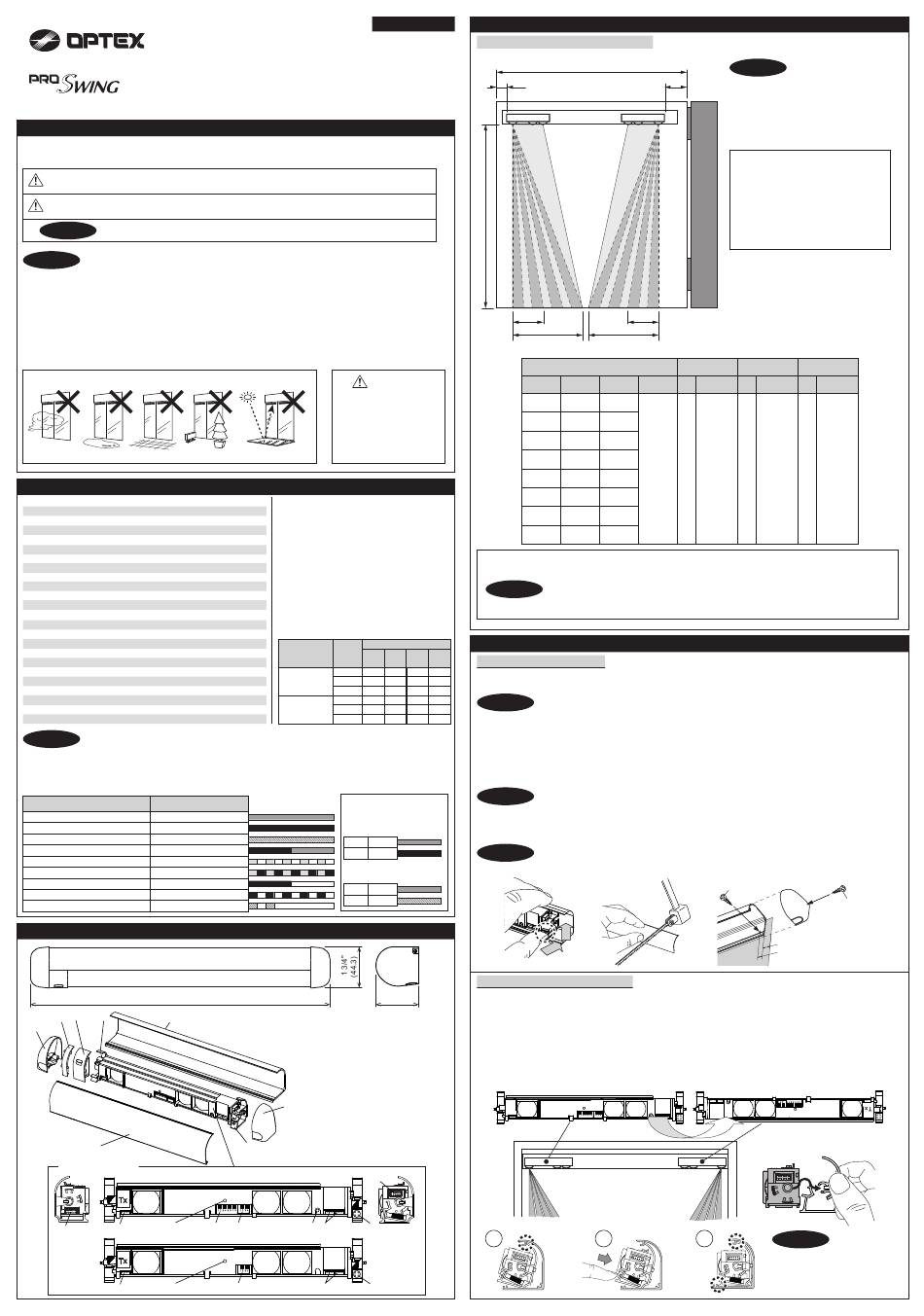

Optex PRO SWING OA-EDGE1 T Manual

OA-EDGE1 T / OA-EDGE2 T
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions provided with this indication and improper handling may
WARNING
cause death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may
CAUTION
cause injury and/or property damage.
NOTE
Special attention is required to the section of this symbol.
NOTE
1. This sensor is a non-contact switch intended for door mounting and to use on automatic swing doors.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment
connected to the sensor.
4. Only use the sensor as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country
in which the sensor is installed.
6. Before leaving the installation site make sure that the sensor is operating properly and instruct the
building owner/operator on proper operation of the door and the sensor.
7. The sensor settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
The following conditions are not suitable for sensor installation.
Fog,
Exhaust Wet Grating Objects
Specifications
Model (*1) : OA-EDGE1 T/OA-EDGE2 T
Extrusion color : Silver/Black
Mounting height : 4'11" to 9'10" (1.5 to 3.0 m)
Detection area : See Detection area
Detection method : Triangulation
Min. configuration : 1 master module +1 LED module
Max. configuration : 4 sensor modules +2 LED modules
Depth angle adjustment : 0° to +25°
Power supply : 12 to 24 VAC ±10% (50/60 Hz)
12 to 30 VDC ±10%
Power consumption : < 1.3 W (< 2 VA at AC) at Min. configuration
< 3.5 W (< 4.5 VA at AC) at Max. configuration
LED indicator : See LED indicator below
Output hold time : Approx. 500 ms
Response time : < 75 ms
Operating temperature : -4 to 131°F (-20 to +55°C)
Operating humidity : < 80 %
Noise level : < 70 dBA
Test input : Opto coupler 10 to 30 VDC
Current 6 mA Max.
Safety output 1 (*2) : Form C relay Voltage 42 VDC
Safety output 2 (*2) Current 0.3 A Max (Resistance load)
Output : See Installation 3
IP rate : IP54
NOTE
The specifications herein are subject to change without prior notice due to improvements.
*1 : OA-EDGE1 T have 1 sensor module (Master only).
OA-EDGE2 T have 2 sensor modules (Master + Secondary).
*2 : There are two types of output. (Reactivate & Stall)
LED indicator
Status Sensor module indicator
Stand-by Green
Swing side detection (Output 1) Red
Orange
Approach side detection (Output 2)
Incomplete Initialization Red & Green blinking
Learning Yellow blinking
Yellow & Red blinking
Incomplete learning
Signal saturation Slow Red blinking
Fast Red blinking
Sensor failure
Communication error Twice Orange blinking
Outer dimensions and part names
X : Length
(4)
(3)
(5)
(1)
(6)
(2)
Sensor module
Master module
(9)
(8)
(7)
Secondary module
(9)
(8)
WARNING
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Reflection
Accessories
Silver self tap screw for extrusion ----------- 2pcs
Silver wood screw for extrusion -------------- 2pcs
Black small screw for endcap ---------------- 4pcs
Black large screw for
wire shroud cover ---------------------- 2pcs
Wire shroud -------------------------------------- 1pcs
Wire shroud cover ------------------------------ 1pcs
Power supply cable ---------------------------- 1pcs
Communication cable ------------- Refer to matrix
Manual --------------------------------------------- 1pcs
Sensor
Model 4"
length
(105)
34.5 -
OA-EDGE1 T 40 -
-
44
34.5 1pcs
OA-EDGE2 T 40 1pcs
44 1pcs
LED module indicator
The color depends on
the state of the output.
Safety output 1
Swing side (Stall)
OFF Green
ON Red
Safety output 2
Approach side(Reactivate)
OFF Green
ON Orange
X : 34 1/2" (876) / 40" (1016) / 44"(1117)
(1) Extrusion
(2) Front cover
(3) Mounting clip
(4) LED module
(5) Spacer
(6) Endcap
(7) Power supply connector
(8) Communication connector
(6)
(9) LED indicator
(10) Dipswitch A
(11) Dipswitch B
(12) Function switch
(3)
(13) Angle adjustment screw
(7)
(10) (11) (12) (8) (13)
(11) (8)
(13)
Detection area
ENGLISH
Recommended installation position
Leading edge
d3
5924693 DEC 2022
h
d2
d1
h
5'11"
(1800)
6'3"
(1900)
6'7"
(2000)
6'11"
(2100)
7'3"
(2200)
7'7"
(2300)
7'10"
(2400)
8'2"
(2500)
For ANSI A156.10 applications you must walk-test the door using AAADM-recommended testing procedures.
Adjustments may need to be performed. If unsure contact OPTEX Technical Support.
NOTE
* : For ANSI A156.10 Swing Side applications we recommend locating no further than 4"
from latch edge of panel. For secondary actvation (Non ANSI A156.10) module can be
located for desired detection area.
[inch(mm)]
Installation
Cable length
10" 19" 35"
1. Mounting the extrusion
(250) (480) (900)
1pcs 1pcs -
a. T ake the sensor modules out of the extrusion.
1pcs - 1pcs
b. If the extrusion is too long for installation cut it down.
1pcs - 1pcs
1pcs 1pcs -
NOTE
When cutting the extrusion it is recommended to assemble to the extrusion one end cap.
1pcs 1pcs -
Place the LED module and spacer against the end cap and install the lens cover tight to the LED module.
1pcs 1pcs -
Cut the assembled unit using a miter saw or simailar devise to ensure proper 90 degree angle.
Cut the end opposite the LED module.
Unsure the overall length will clear items such as door stops or finger guards.
c. Affix the extrusion on the intended mounting position leaving more than 13/16"(20 mm) from door edge to attach the
endcap.
d. If necessary, drill two mounting holes of ø1/8"(ø3.4 mm) and fix the extrusion.
NOTE
Recommended location for mounting screws is 1" from edge of aluminim extrusion.
This will allow proper positioning of LED module and sensor modules without obstruction.
e. When mounting a sensor on each side of the door, it is necessary to drill a wiring hole of ø1/2"(ø12 mm) to
connect the sensor modules. (See chapter 3. Wiring)
NOTE
Make sure there is some space between the mounting clips and the mounting screws.
Make sure not to scratch the extrusion when making a hole.
1
2. Inserting the sensor module
a. Approach side
2"(50.7)
When installing on approach side (reactivate) refer to values d2 & d3 in chart Detection area as an initial starting point for
[inch(mm)]
location of module. Sensor modules can be moved left or right and angle in or out to achieve desired detection area
determined by walk testing door operation.
b. Swing side
When installing on swing side in conjuction with an overhead presence sensor see separate included chart for starting
location. Requires two modules for this application to ensure conformance to ANSI/BHMA A156.10, Section 8.
Must be walk tested and adjusted if necessary to confirm compliance with the standard.
Tx
1
Pivot edge
W
d4
The actual detection area may become smaller
depending on the ambient light, the color/material
of the object or the floor as well as the entry speed
of the object and selection of inactive area.
d1/d2
d2
d1
W 36"(914)
d1 d2 d3 n d4
1'7" 11"
(480) (280)
1'8" 11 7/16"
(510) (290)
1'9" 11 13/16"
(525) (300)
1'10" 12 3/16"
(545) (310)
4" * 4"
2
(102) (102)
1'10" 12 5/8"
(560) (320)
1'11" 13"
(590) (330)
1'12" 13 3/8"
(605) (340)
2'1" 13 3/4"
(625) (350)
Silver screw
2
ON
ON
2 3
NOTE
W = Door width
h = Mounting height
= Detection area width
d3 = Distance from the leading edge
to the sensor module
d4 = Distance from the pivot edge
to the sensor module
n = Number of sensor modules
[inch (mm)]
42"(1067) 48"(1219)
n d4 n d4
6" 9"
2 2
(152) (229)
Black screw
(small)
Min. 13/16"(20 mm)
1"(25 mm)
NOTE
Make sure to fix the sensor modules
firmly by the mounting clips.
