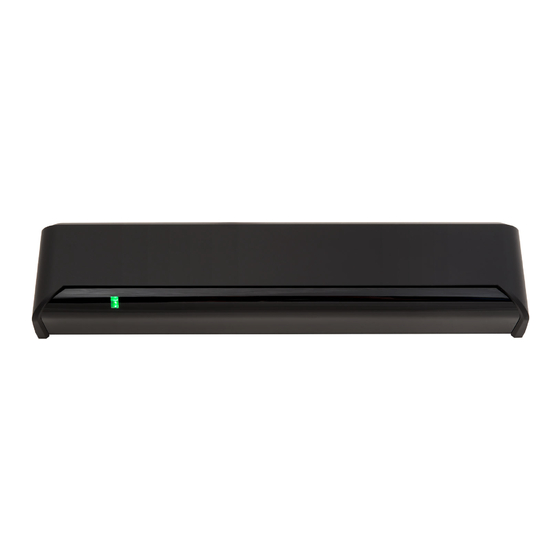

Optex OA-PRESENCE TN Quick Start Manual

DETECTION AREA
A
1st row
2nd row
1.0(3'3")
2.0
(6'7")
Emitting area
The chart shows the values at depth angle +6°
A 2.00 (6'7")
B
0.23 (9")
C 0.35 (1'2")
D 0.59 (1'11")
E 1.21 (3'12")
F 1.86 (6'1")
G 2.52(8'3")
Detection area
To comply with EN 16005, make sure that the detection area is within the values of the chart below.
A 2.00 (6'7")
X 0.23 (9")
E 1.02 (3'4")
G* 2.41 (7'11")
The values above are those of the Detection area when tested referring to the test conditions of EN 16005.
(The emitting area is as shown in Emitting area above.)
*: When installed at higher than 3.0m(9'10"), EN 16005 requirements are fulfilled only within the area width "G"
of 3.6m(11'10").
NOTE
The actual detection area may become smaller depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of the object or a person is slower than
50mm / sec. or faster than 1500mm / sec.
E
F
G
1.0 0
(3'3") (3'3")
2.20 (7'3") 2.50 (8'2") 2.70 (8'10")
0.25 (10") 0.28 (11") 0.31 (1')
0.39 (1'3") 0.44 (1'5") 0.48(1'7")
0.65 (2'2") 0.74 (2'5") 0.80 (2'7")
1.33 (4'4") 1.51(4'11") 1.63 (5'4")
2.05 (6'9") 2.32 (7'7") 2.51 (8'3")
2.78 (9'1") 3.15 (10'4") 3.40 (11'2") 3.79 (12'5")
2.20 (7'3") 3.00 (9'10")
0.25 (10") 0.34 (1'1")
1.12 (3'8") 1.53 (5')
2.65 (8'8") 3.60 (11'10")
[m(feet,inch)]
Mounting
surface
B C
D
X
1.0 2.0
(6'7")
[m(feet,inch)]
3.00 (9'10") 3.50 (11'6")
0.34 (1'1") 0.39 (1'3")
0.53 (1'9") 0.61 (2')
0.89 (2'11") 1.03(3'5")
1.81 (5'11") 2.11 (6'11")
2.79 (9'2") 3.25 (10'8")
4.42 (14'6")
Test conditions required by EN 16005
Floor :Grey paper
Detection object : EN 16005 CA reference body
Sensitivity : Middle
Speed of detection object : 50mm / sec.
OA-PRESENCE TN
Mounting height : 2.2m(7'3")
Angle adjustment : +6°
Sensitivity : Middle
: Emitting spots
: Emitting spots
(can be eliminated)
: Detection area
