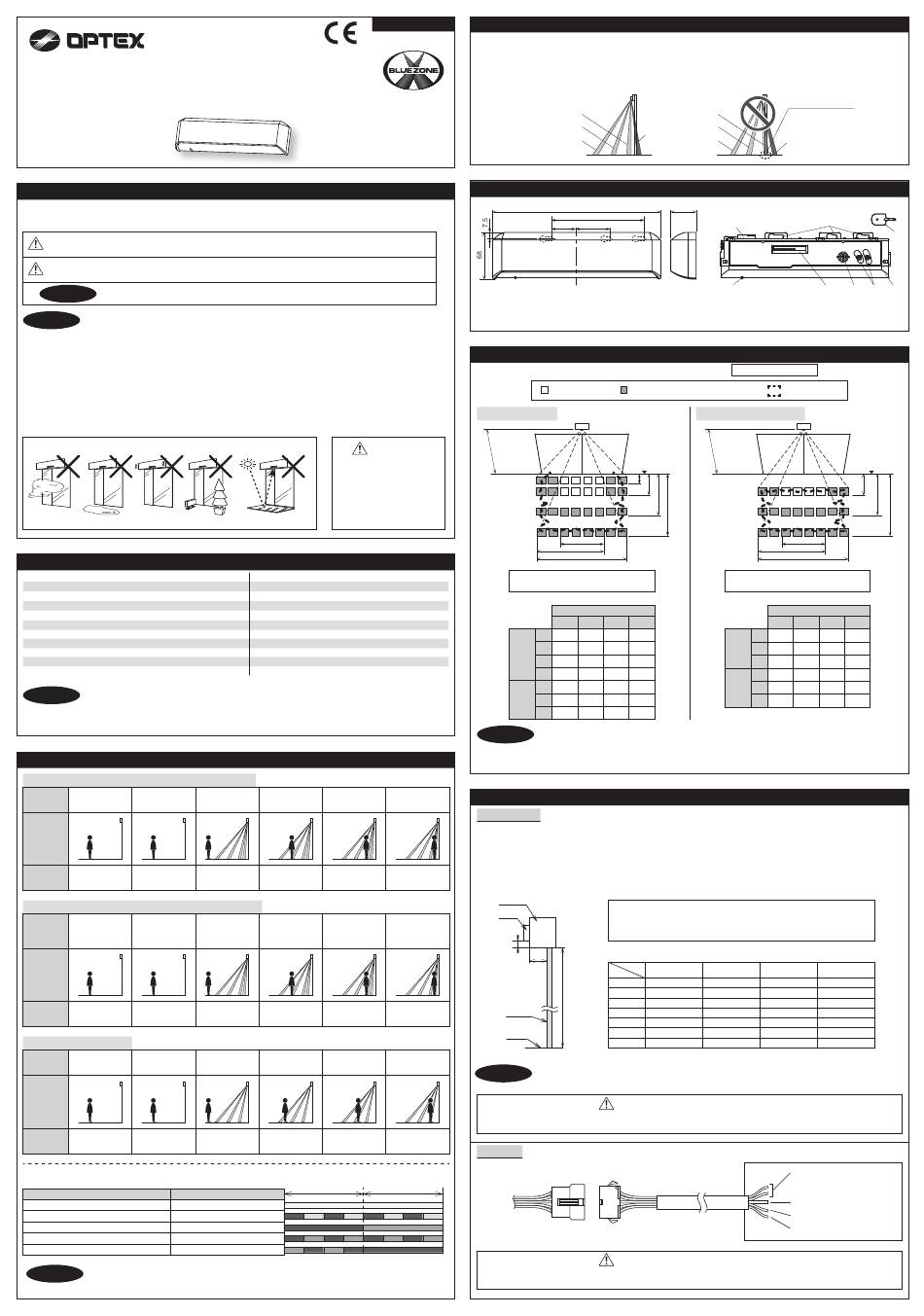

Optex OA-FUNXION Quick Start Manual

OA-FUNXION
OA-FUNXION LITE
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions that accompany this indication and improper handling
WARNING
may result in serious injury or death.
Failure to follow the instructions that accompany this indication and improper handling
CAUTION
may result in injury and/or damage to property.
NOTE
Pay special attention to sections with this symbol.
NOTE
1. This product is a non-contact switch intended for header mount or wall mount for use on an automatic
sliding door. Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment
connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country
in which the product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the
building owner/operator on proper operation of the door and the product.
7. The product settings can only be changed by an installer or service engineer.
When changed, the changed settings and the date shall be registered in the maintenance logbook
accompanying the door.
The following conditions are not suitable for sensor installation.
Fog,
Exhaust Wet Vibration Objects
Specifications

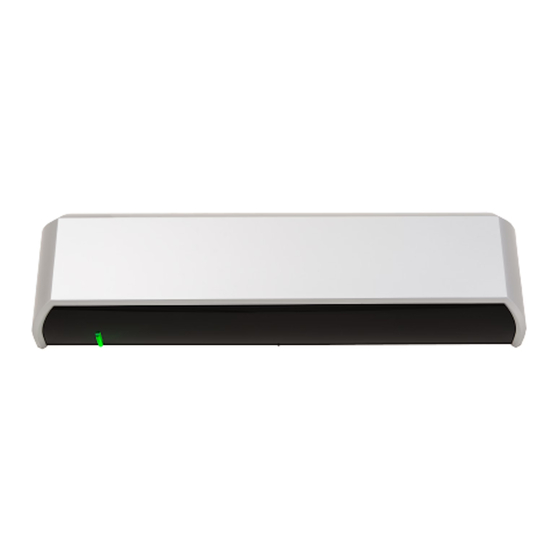

Model : OA-FUNXION/OA-FUNXION LITE
Cover color : Silver/Black
Mounting height : 2.0 to 3.0 m
: See Detection area
Detection area
Detection method : Active infrared reflection
Area angle adjustment : Depth : -8° to +8°
Width : ±7°
Power supply (*) : 12 to 24 VAC ±10 % (50/60 Hz)
12 to 30 VDC ±10 %
Power consumption : < 2.0 W (< 5 VA at AC)
Operation indicator : See Operation indicator table
NOTE
The specifications herein are subject to change without prior notice due to improvements.
* : When using this sensor, the sensor has to be connected to a door system which has the SELV circuit.
Operation indicator table
OA-FUNXION (Dipswitch 11 : Activation )
Entry
Power OFF Warm-up
(Image)
Operation Green & Orange
None
indicator blinking
OA-FUNXION (Dipswitch 11 : BLUEZONE )
Entry Power OFF Warm-up
(Image)
Operation Green & Orange
None
indicator blinking
OA-FUNXION LITE
Entry Power OFF Warm-up
(Image)
Operation Green & Orange
None
indicator blinking
Other
Status Operation indicator color
Stand-by (Installation mode) (*1)
Setting error Purple & light Blue blinking
Signal saturation Slow Purple & Blue blinking
Sensitivity too low(Or sensor failure) Fast Purple & Blue blinking
Replacement signal (*2) Blue blinking twice in Purple
NOTE
*1 : OA-FUNXION LITE does not have installation mode.
*2 : Will last 5 min only after power ON.
WARNING
Danger of electric shock
Do not wash, disassemble,
rebuild or repair the sensor,
otherwise it may cause electric
shock or breakdown of the
equipment.
Reflection
Output hold time : Approx. 500 ms
Response time : < 300 ms
Operating temperature : -20 to +55°C
Operating humidity : < 80 % (Non-condensing)
Output : Form C relay 50 V 0.3 A Max.
(Resistance load)
Weight : 210 g
Accessories : 2 Mounting screws
1 Mounting template
1 Area adjustment tool
1 Cable 3.0 m
Outside of Entry to Entry to
detection area 3rd/4th row 2nd row
Blue Orange Orange
Outside of Entry to Entry to
detection area 3rd/4th row 2nd row
Blue Orange Red
Outside of Entry to Entry to
detection area 3rd row 2nd row
Blue Orange Orange
1000 ms
Yellow
BLUEZONE(1st row) area
ENGLISH
BLUEZONE function is only available for OA-FUNXION.
When dipswitch 11 is set to "ON", the BLUEZONE(1st row) area, that provides extra safety over the threshold is activated.
In case the BLUEZONE function is not required, set dipswitch 11 to "OFF".
Do not set the 2nd row overlapping the threshold regardless of the setting of dipswitch 11.
5930911 NOV 2021
Outer dimensions and part names
(1) Connector
(2) Mounting holes
Detection area
Charts show the values in the following area angle adjustment settings ;
: Emitting spots
OA-FUNXION
A
BLUEZONE
(1st row)
2nd row
3rd row
4th row
3rd, 4th rows
1st, 2nd rows
Emitting area
B
C
Depth
D
E
F
Width G
H
NOTE
The actual detection area may become smaller depending on the ambient light, the color/material of the
object or the floor as well as the entry speed of the object. The sensor may not be activated when the
entering speed of the object or a person is slower than 50 mm/s or faster than 1500 mm/s.
Using a reflection tool (e.g. mirror) is recommended to confirm the actual detection area properly at site.
Entry to
Installation
1st row
1. Mounting
a. Place the mounting template at the desired mounting position.
When setting the detection area close to the door, mount the sensor according to the chart below.
(For OA-FUNXION only)
b. Drill two mounting holes of ø3.4 mm.
c. To pass the cable through the header, drill a wiring hole of ø8 mm.
Red d. Remove the mounting template.
e. Remove the housing cover. Fix the sensor to the mounting surface with the two mounting screws.
Header
Sensor
Entry to
BLUEZONE
(1st row)
Y
X
Light Blue Door
Floor
Entry to
1st row
NOTE
Make sure not to mount the sensor lower than the bottom of header.
Make sure to affix the mounting template as described in the above chart, otherwise it can be dangerous since there
may be no detection area around the threshold. Install the sensor as low as possible on the header.
Red
2. Wiring
Sensor connector
1000 ms
Before starting the procedure, make sure that the power is turned OFF. When passing the cable through the hole,
do not tear the shield otherwise it may cause electric shock or breakdown of the sensor.
2nd row 2nd row
BLUEZONE
3rd row 3rd row
(1st row)
4th row 4th row
245 37 [mm]
125
(1)
36 43
(3)
(3) Operation indicator (5) Area angle adjustment screws
(4) Dipswitches (6) Area width adjustment screws
: Emitting spots (Can be eliminated)
OA-FUNXION LITE
A
Mounting
surface
B
C
1st row
D
E
2nd row
3rd row
F
G
H
: Motion detection
: Motion/presence detection
[mm]
A (Mounting height) Emitting area
2000 2200 2500 3000
300 330 370 450
550 610 690 830
Depth D
1130 1250 1420 1700
2000 2210 2510 3010
1040 1150 1430 1560
Width
1720 1900 2150 2590
2260 2490 2820 3390
H : Height from the floor to the bottom of the header
(The mounting height is "H + Y".)
Y : Distance between the bottom of the header and the sensor
X : Distance between the door and the mounting surface
Maximum mounting distance (Y)
H
2000 2300
X
0 140 140
50 130 130
H
100 110 110
150 100 100
200 90
250 70
300 60
CAUTION
Risk of getting caught
Cable(3.0 m)
WARNING
Danger of electric shock
2nd row overlapping
the threshold
BLUEZONE
(1st row)
(2)
(8)
(4) (5) (6) (7)
(7) Detection window
(8) Area adjustment tool
Depth : +8° Width : 0°
: Detection area
Mounting
surface
C
D
E
F
G
H
2nd, 3rd rows : Motion detection
1st row : Motion/presence detection
[mm]
A (Mounting height)
2000 2200 2500 3000
C
550 610 690 830
1130 1250 1420 1700
E 2000 2210 2510 3010
F
1040 1150 1430 1560
G 1720 1900 2150 2590
H 2260 2490 2820 3390
[mm]
2500 3000
140 0
130 0
110 0
100 0
90 90 0
70 70
0
60 60 0
To the door controller
Grey : Power supply
12 to 24 VAC ±10 %
12 to 30 VDC ±10 %
White : COM.
Yellow : N.O.
Green : N.C.
